DT-314 has been discontinued. We recommend LS-5-12000 as a replacement.
Range: 0-15,000 RPM/FPM

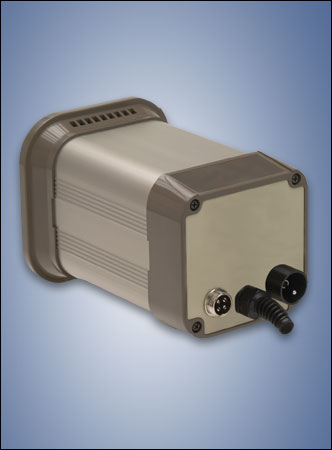

The DT-314 Stroboscope is intended to be machine mounted for continual visual inspection and monitoring of the machine’s action; it operates only on external mode in order to synchronize its flashing with the speed (rotation, vibration, etc.) of the equipment under observation. No display is necessary, as the strobe’s main function is to observe the action as it happens, resulting in an incredibly rugged and economical unit.
- Provides 12 VDC power for external sensor
- No operator controls
- Removable handle for hand-held use or fixed mounting
- Rugged extruded aluminum housing
- High intensity flash
| Flash Range | 0-15,000 FPM |
| Input Signal | LO level: 0-0.4 VDC HI level: 2.5 - 12 VDC -- or open collector (npn) pulse width 50us min |
| Impedance | 10K |
| Flashtube | Xenon, 10W maximum |
| Flash Duration | 50 microseconds approximately |
| Sensor Power Supply | 12 VDC ± 0.5V (50ma) |
| Power Requirements* | 115VAC or 220 AC ± 10% 60/50Hz, 30 VA |
| Operating Temperature | 32-104° (0-40°C) |

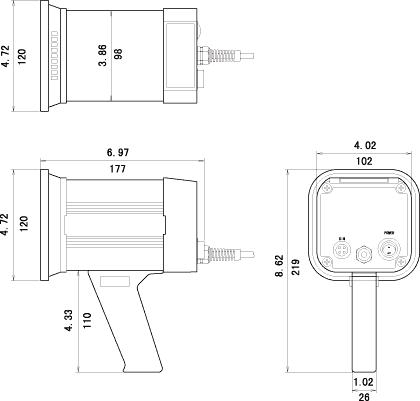

| Dimensions | 4.72"W x 4.72"H x 7.19"L (120 x 120 x 182.5) mm |
| Weight | 2.4lbs (1.1kg) |
| Accessories Available | Strobe Carrying Case |
| Warranty | 1 year |
