The DI-12-4 has been replaced by the DI-12-SL, click here to go to the DI-12-SL.

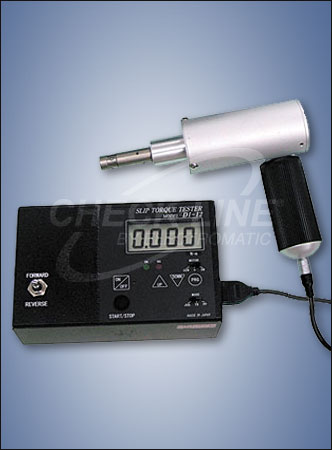

DI-12 motorized torque tester is designed to find the actual yield tightening torque value for specific thread joints which consist of a variety of thread types, multi-layered material, hole sizes, etc.
DI-12 Motorized Torque Tester drives the test piece at consistent speed and:
- Detects breakaway torque without overtorquing pretightened fasteners
- Detects the yield torque of the screw joint
- Displays real time torque values and captures peak torque
- Tightens fasteners to preprogrammed torque values
- Selectable units: lbf-in, kgf-cm, N-m. ozf-in units avaiable
- Peak, Real Time and Breakaway/Yield measuring modes (selectable)
- USB virtual COM port sends peak (1 data) or continuous data (12 or 80 data/second)
- Both CW and CCW operation
- 1/4" female hex
| Model | Range |
|---|---|
| DI-12-SL4 | 0.30 - 35.00 lbf-in |
| DI-12-SL4oz | 3.0 - 560.0 ozf-in |
| DI-12-SL4kg | 0.30 - 40.00 kgf-cm |
| DI-12-SL4cN | 3.0 - 400.0 N-cm |
| DI-12-SL4N | 0.030 - 4.000 N-m |
| Display | 4 digit LCD Display |
| Operation | Both CW and CCW motorized rotation |
| Auccracy | ±1% F.S., 1LSD |
| Measurement Modes | P-P: Displays PEAK Torque value that will not change until a higher value is measured. T-R: Displays TRANSIENT torque values. RG: Determines peak down and yield torque (CW only) If a peak down torque value is detected, the green indicator will light, and tester rotation will stop automatically. |
| Test Start Value | Start of RG Mode can be set in 0.001 N-m increments. |
| Output | Virtual RS-232, continuous (9600 baud) output in PP and RG measuring modes. |
| Auto-power-off | After 5 minutes of non-use. |
| Dimensions | Detector: 44mm diameter x 190mm length, 1/4" hex drive Indicator: 87mm W x 108mm D x 33mm H |
