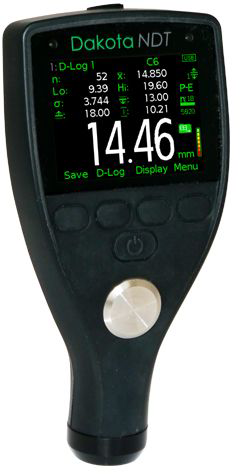

The Dakota CX4 Ultrasonic Material Thickness Gauge has all the features and functionality necessary for measuring material thickness and velocity on virtually any material - for a wide range of applications.
- Easy to use menu structure in multiple languages
- Tough, impact, waterproof and dust resistant equivalent to IP64
- Bright color screen; with permanent backlight
- Ambient light sensor, with adjustable brightness
- Scratch and solvent resistant display; 2.4" (6cm) TFT
- Large positive feedback buttons
- USB power supply; via PC
- Gauge software updates via DakMaster™ Software
- Pulse Echo
- Echo Echo ThruPaint™
- Measurement Rate 4Hz
- mm or inches
- Repeatability / Stability Indicator
- Calibration options: Zero (using the integral zero disc), 1 - point, Material selection; 39 preset materials, Factory; resets to the factory calibration
- USB to PC
- Dual Element
- Auto transducer recognition
- Auto V-path correction
| Measurement Accuracy** | |
|---|---|
| Pulse Echo | 0.025 - 19.999” (0.63 - 500 mm) |
| Echo Echo ThruPaint™ | 0.100 - 0.787” (2.54 - 20.00 mm) |
| Measurement Range* | |
| Pulse Echo | ±0.004” (±0.1 mm) {.248 - 0.787” (0.63 - 19.99 mm)} ±0.5% {0.788 - 20.69” (20.00 - 500.00 mm)} |
| Echo Echo ThruPaint™ | ±0.004” (±0.1 mm) {0.1 - 1” (2.54 - 25.4 mm)} |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Power Supply | 2 x AA batteries |
| * | May vary based material and transducer used. |
| ** | On steel. |
| *** | Approximate battery life, when in Continuous Reading Mode at a reading rate of 4Hz. Rechargeable batteries may differ. |
| Gauge Weight | 7.4 oz (210 g ) - including batteries, without transducer |
| Gauge Dimensions | 5.7 x 2.84 x 1.46” (145 x 73 x 37 mm), without transducer |
| Measurement Rate(s) | 4 Hz [CX4] |
