Signal output features 5v Pulse Signal is via the 3.5mm stereo Jack socket on the rear of housing, provided for MiniLaser Remote Sensor input. This can be used to measure any pulse rate signal up to 5v p-p.
Contact Measurement
Measurement units - Revs - Metres - Feet - Yards per min and per second or length in 0/1 metres units Time interval or reciprocal speed- for very slow rates in seconds/rev Count mode - counts distance or revs
Additional information
Special capture and averaging features:
Maximum - Captures max. speed in 0.1 secs
Minimum - Captures min. speed in 0.1 secs
Timebase - 0.1 seconds in Capture mode
Average - Averages over last 8 readings
Contact Measurement
Measurement units - Revs - Metres - Feet - Yards per min and per second or length in 0/1 metres units Time interval or reciprocal speed- for very slow rates in seconds/rev Count mode - counts distance or revs
Additional information
Special capture and averaging features:
Maximum - Captures max. speed in 0.1 secs
Minimum - Captures min. speed in 0.1 secs
Timebase - 0.1 seconds in Capture mode
Average - Averages over last 8 readings

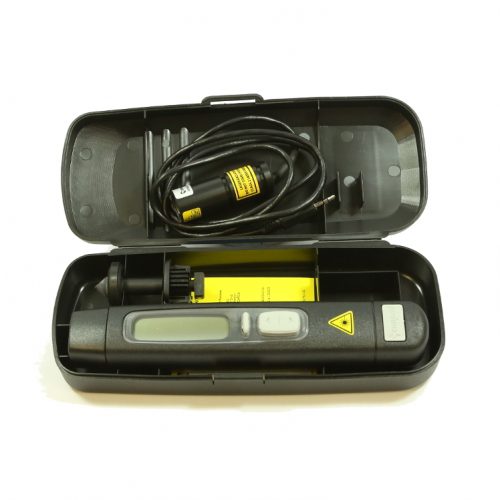

- A very versatile multipurpose Tachometer/Counter, with both Optical or Contact rpm, linear rate/distance ranges
- Additional remote Laser Optical Sensor for rpm monitoring in difficult access applications
- Unique inverting display, allows easy reading when in limited access situations
- Time & Count modes
- Data capture and very fast response modes - 0.1 seconds update time
- Optical range of up to 2 metres - the optical performance is second to none
- Traceable certificates supplied as standard
| Laser | (internal & remote) |
| Optical range | 50 - 2000mm |
| Angle | ± 80° |
| Light Source | 1mw Laser 635nm class II |
| Speed range | 3 - 99,999 rpm or rps equiv |
| Resolution | max. 0.001 (autorange) |
| Accuracy | 0.05% +/- 1 digit |
| Update | 0.8 sec |
| Capture mode | 0.1 sec |
| Count | 0-99999 revs or length in linear |
| Time interval | 0-99999 secs (autoranging) |
| Memory | Holds last reading 1 minute |
| On target ind. | Yes |
| Low battery ind. | Yes |
| Signal input | 3.5mm socket for ext. Optical Sensor |

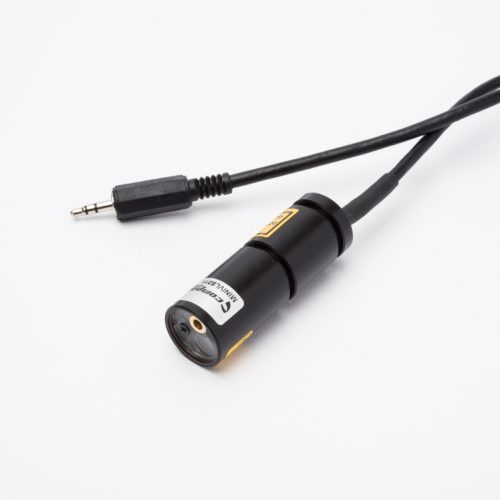

| Remote Sensor | MiniLaser with 1 metre cable supplied |
| Power | 4 x AAA batteries-supplied |
| Contact Adapter | Supplied |
| Carrycase | Supplied |
| Reflective tape | Pack of tape supplied |
| Item | Description | Price | ||
|---|---|---|---|---|
Combination Contact / Non-Contact Laser Hand-held Tachometer with 5V Signal Input | $865.00 | |||
| Accessories | ||||
Reflective Tape, 1x7 Inch Strip - TAPE | $5.00 | |||
Reflective Tab Sheet, 35 1/2" x 1/2" Squares - TAB | $5.00 | |||
Replacement/Spare contact Adaptor 0.1 m circumference wheel | $175.00 | |||
