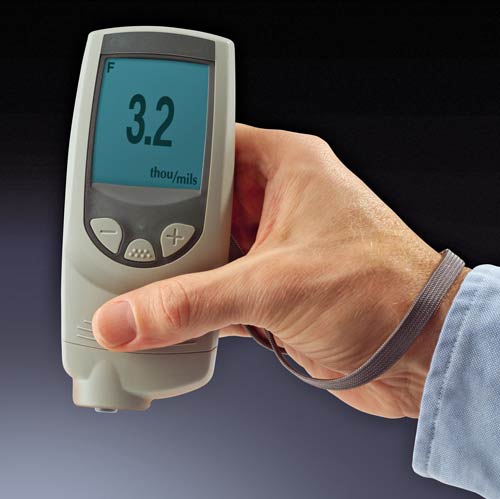

The 6000 Series Coating Thickness Gauge is a versatile, rugged tester using magnetic and eddy current principles to measure coating thickness on both ferrous and non-ferrous metals, accurately and quickly.
5 models available:
6000-F90S3 0-25 mils / 625µm 90° Probe Ferrous
6000-N90S3 0-25 mils / 625µm 90° Probe Non-Ferrous
6000-FNTS3 0-250 mils / 6mm Ferrous & Non-Ferrous
6000-FKS3 0-500 mils / 13mm Ferrous
6000-NKS3 0-500 mils / 13mm Non-Ferrous
- Two (2) year warranty
- Includes NIST Traceable Calibration Certificate
- HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
- Reversible Display enables right side up viewing whether the gage is in your hand or on a work table
- Multi-lingual Menu; English, Spanish, French, German, Portuguese, Chinese, Japanese, Norwegian, Russian, Czech and Italian
- Built in clock to date and time stamp each stored measurement
- High Resolution mode increases the displayed resolution for use on applications that require greater precision
- Conforms to national and international standards including ISO and ASTM
- Flip Display enables right side up viewing whether the gage is in your hand or on a work table
- Built-in temperature compensation ensures measurement accuracy
- Made in the USA
Complete kit comes with precision plastic shims, protective rubber holster with belt clip, 3 AAA batteries, instructions, wrist strap, nylon carrying case with shoulder strap, Certificate of Calibration traceable to NIST, PS Soft Windows-based Analysis Software, USB cable and two (2) year warranty

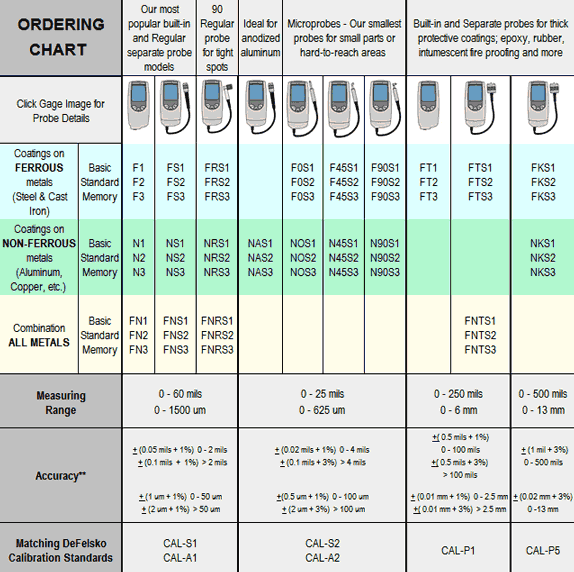

| Model | Range | Accuracy |
|---|---|---|
| 6000-F90S3 | 0-25 mils | ±(0.02 mils + 1%)0-4 mils ±(0.1 mils + 3%)>4 mils |
| 0-625 µm | ±(0.5 µm + 1%)0-100 µm ±(3 µm + 3%)>200 µm |
|
| 6000-N90S3 | 0-25 mils | ±(0.02 mils + 1%)0-4 mils ±(0.1 mils + 3%)>4 mils |
| 0-625 µm | ±(0.5 µm + 1%)0-100 µm ±(3 µm + 3%)>200 µm |
|
| 6000-FKS3 | 0-500 mils | ±(1 mil + 3%)0-500 mils |
| 0-13 mm | ±(0.02 mm + 3%)0-13 mm | |
| 6000-NKS3 | 0-500 mils | ±(1 mil + 3%)0-500 mils |
| 0-13 mm | ±(0.02 mm + 3%)0-13 mm |
