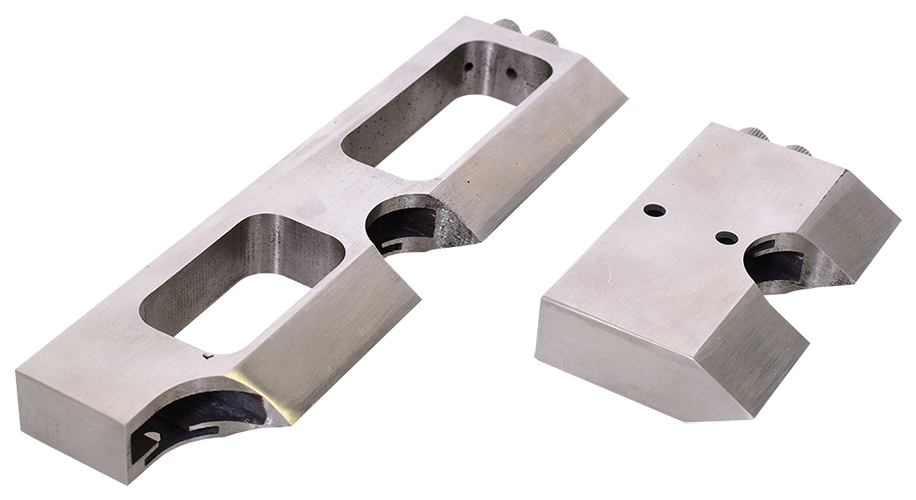

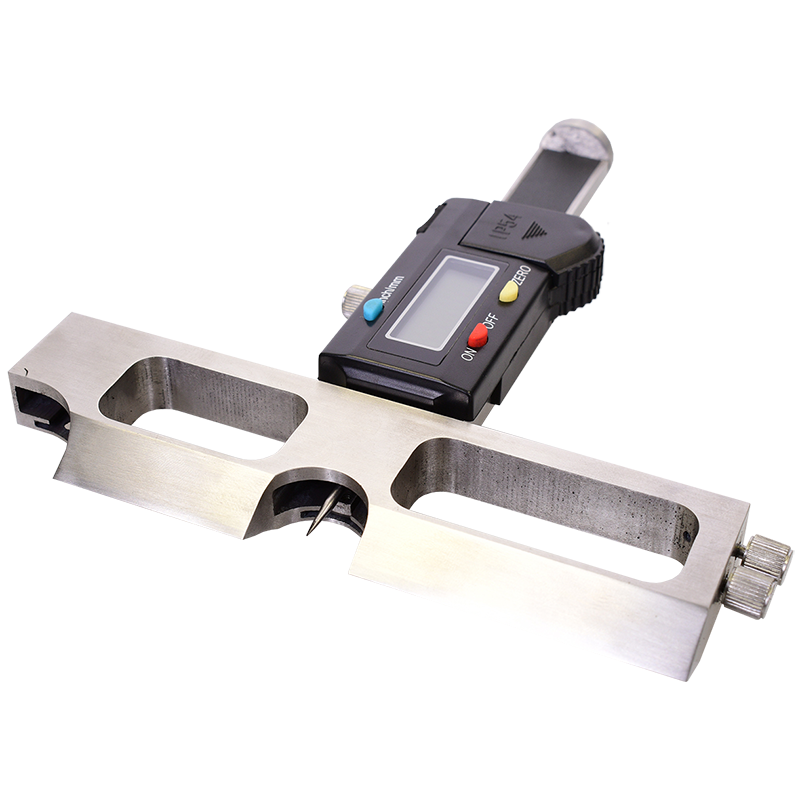

The DPG-3 is the new and improved spring loaded digital pit gauge with two exchangeable knife edge bases: a standard 2 3/8" long base and a 4 7/8" long base with center and cantilever positions for versatility based on your needs. Simple to use, the DPG-3 is water resistant and made of hardened stainless steel, producing accurate measurements of surface pits, gauges, dents, undercuts and more. Only 0.050" in diameter, the probe can access even the smallest pits.
| Range: | 0 - 1.25" (0-30mm) |
| Resolution: | 0.001 (0.025mm) |
| Accuracy: | ± 0.001" (0.025mm) |
| Protection: | IP-54 |
| Temperature Range: | 32 - 105°F (0-40°C) |
| Relative Humidity: | 80% |
| Storage Temperature: | 14 - 140°F (-10-60°C) |
| Power: | One 1.55V Button Battery |
| Base: | 2 3/8" and 4 7/8" (60 and 125mm) |

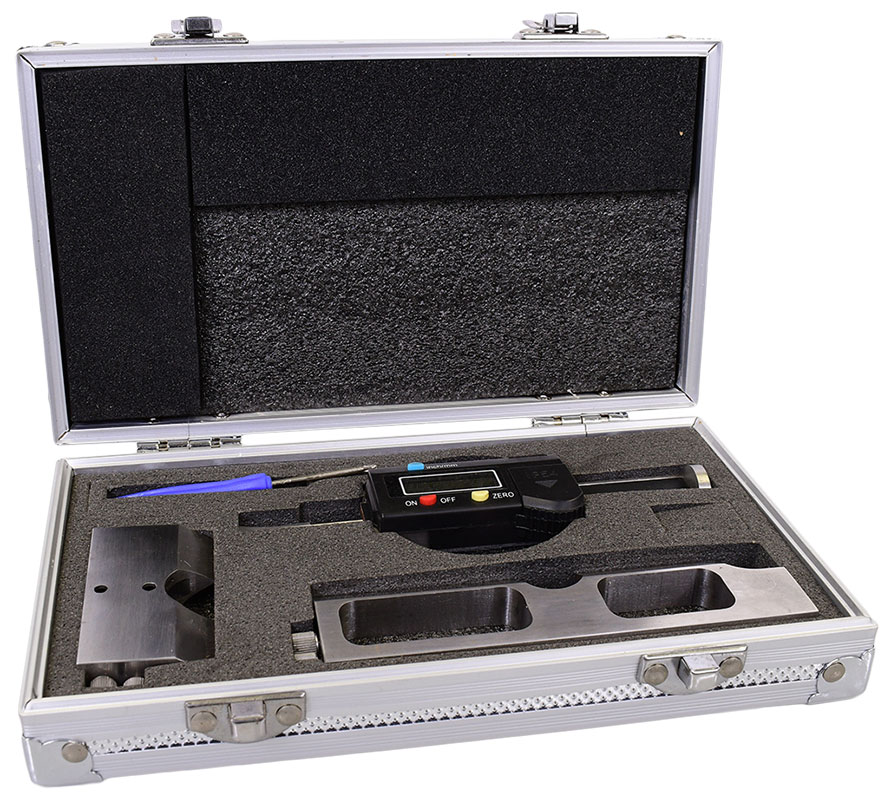

-Plastic Storage Case
-Spring Loaded, digital depth gauge with sharp pointed tip
-Standard 2 3/8" wide base
-Two Position 4 7/8" wide base
-Two sets of attachment screws
-Certificate of Conformance
-Spring Loaded, digital depth gauge with sharp pointed tip
-Standard 2 3/8" wide base
-Two Position 4 7/8" wide base
-Two sets of attachment screws
-Certificate of Conformance
| Item | Description | Price | ||
|---|---|---|---|---|
Digital Pit Gauge with Standard 2 3/8" Knife Edge Base, Two Position 4 7/8" Knife Edge Base and Hard Case | $250.00 | |||
| Accessories | ||||
NIST-Traceable Calibration Certificate for Digital Pit Gauge | $110.00 | |||
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
