The TLS Pro torque screwdrivers are an upgrade to our reliable and trusted cam-over torque technology. It's designed to enhance the user experience during the fastening process. The new screwdriver offers the same performance, same quality, same torque results as the old dependable TLS screwdriver. The preset screwdriver (internally adjustable) delivers precision torque control and prevents a fastener or bolt from being under and over tightened. Using a quality torque screwdriver makes a safer world through accuracy and precision.

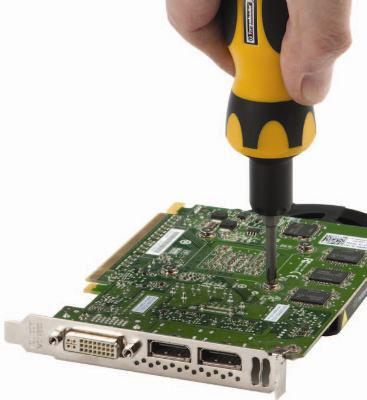

TLS Pro ESD models are ESD compliant.
Designed and manufactured to meet or exceed the accuracy and repeatability requirements of ISO 6789: 2003 (+/- 6% of setting).
- Precision radial ball clutch "slips-free" when the preset torque is reached preventing over-torquing.
- Thrust bearings insure that the torque setting is independent of any end load applied by the operator.
- Tamper-proof internal adjustment. No external adjustment scale - must be preset using a torque analyzer.
- All models provide bi-directional operation and are calibrated in either the CW or CCW direction.

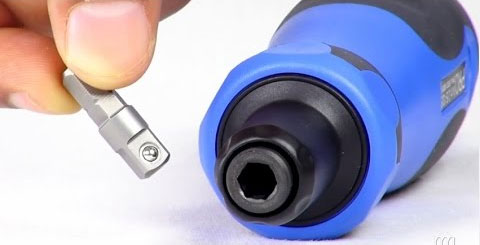

- Quick conversion from 1/4 F/Hex to 1/4 Sq Drive with accessory # 14HEX-14SQ.
- Quick change of the end cap for color coding identification of the preset torque value. Simply replace the color cap at the end the tools (4 color pack accessory option - Black, Red, Green & Blue)
| Model | Lb-in | Nm | Kg-cm | Oz-in | Drive | Length | Weight |
|---|---|---|---|---|---|---|---|
| TLS Pro 25 - 020702 TLS Pro 25 ESD - 020706 | 0.45 - 2.2 | 0.05 - 0.25 | 0.5 - 2.5 | 7.2 - 35.2 | 1/4" F/Hex | 5.2" | 7.4 oz |
| TLS Pro 150 - 020703 TLS Pro 150 ESD - 020707 | 1.8 - 13 | 0.2 - 1.5 | 2 - 15.3 | 28.8 - 208 | 1/4" F/Hex | 5.2" | 7.4 oz |
| TLS Pro 450* - 020704 TLS Pro 450* ESD - 020708 | 4.5 - 40 | 0.5 - 4.5 | 5.1 - 45.9 | 71.2 - 640 | 1/4" F/Hex | 5.5" | 8.1 oz. |
| TLS Pro 1350* - 020705 TLS Pro 1350* ESD - 020709 | 22 - 120 | 2.5 - 13.5 | 25.5 - 137.7 | 352 - 1920 | 1/4" F/Hex | 5.4" | 8.1 oz. |

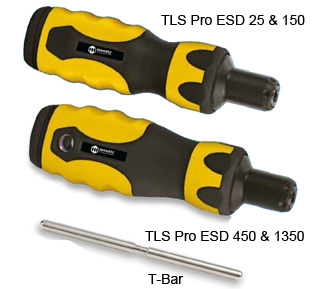

* TLS Pro: 450, 450 ESD, 1350, & 1350 ESD are supplied with removable sliding T-bar
| Item | Description | Price | ||
|---|---|---|---|---|
TLS Pro 25 F/H Preset Torque Screwdriver, 2.2 lb-in / 0.25 Nm / 2.5 kg-cm Capacity Gedore 065400 (2927756) | $176.21 | |||
TLS Pro 150 F/H Preset Torque Screwdriver, 13 lb-in / 1.5 Nm / 15.3 kg-cm Capacity Gedore 065500 | $176.21 | |||
TLS Pro 450 F/H Preset Torque Screwdriver, 40 lb-in / 4.5 Nm / 45.9 kg-cm Capacity Gedore 065600 (2927772) | $180.96 | |||
TLS Pro 1350 F/H Preset Torque Screwdriver 120 lb-in / 13.5 Nm / 137.7 kg-cm Capacity Gedore 065700 | $180.96 | |||
TLS Pro 25 ESD, F/H Preset Torque Screwdriver, 2.2 lb-in / 0.25 Nm / 2.5 kg-cm Capacity | $411.51 | |||
TLS Pro 150 ESD, F/H Preset Torque Screwdriver, 13 lb-in / 1.5 Nm / 15.3 kg-cm Capacity Gedore 065505 | $205.52 | |||
TLS Pro 450 ESD, F/H Preset Torque Screwdriver, 40 lb-in / 4.5 Nm / 45.9 kg-cm Capacity Gedore 065605 | $216.93 | |||
TLS Pro 1350 ESD, F/H Preset Torque Screwdriver 120 lb-in / 13.5 Nm / 137.7 kg-cm Capacity Gedore 065705 | $216.93 | |||
| Accessories | ||||
020718 | End Caps for TLS Pro Screwdrivers (Black, Blue, Red, Green) Gedore# 015999 | $17.00 | ||
PRESET | Presetting of torque driver to specific value | $65.00 | ||
14HEX-14SQ | 1/4 In Male Hex to 1/4 Male Square Drive Adapter, 1 In Length | $5.00 | ||
33 Piece 1/4" Hex Bit Set with drive extension, 6 Torx, 5 Hex bits, 8 Phillips, 8 Pozidrive, 5 slotted bits | $20.00 | |||
