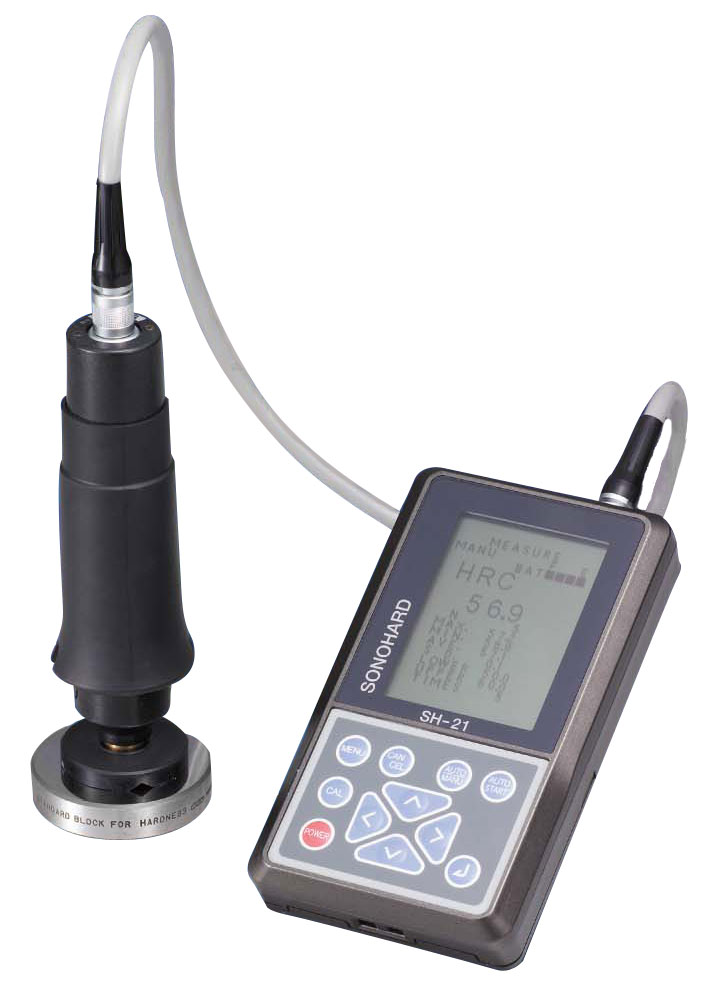

The SH-21 is designed for precise measurement of hardness in difficult-to-reach areas of compact parts, metal casts, gears, crankshafts, component parts, and more. It is ideal for the inspection and maintenance of large-scale structures, vehicles, ships, steel towers, bridges, and aircraft.
- Fast action, measures hardness in seconds.
- Practically undetectable measurement technique leaves indentations of 0.1mm2 allowing use on finished products.
- Displays hardness in HV (Vickers), HRC (Rockwell), HS (Shore) and HB (Brinnel) units.
- Measurement can be converted to tensile strength, N/mm2
- Readings not affected by surface underneath test sample.
- 2000 Reading data memory can be transferred to PC.

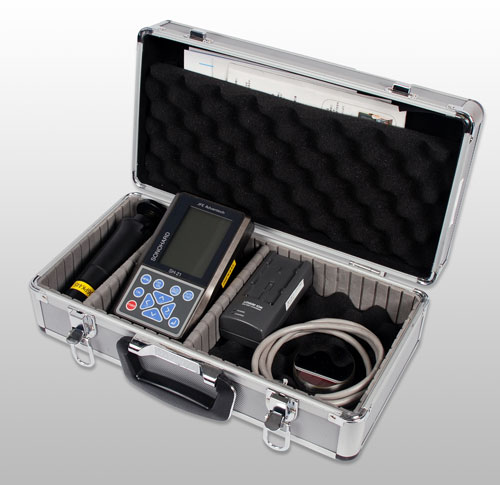

Supplied as a complete kit including display, probe, hardness test block (approx 55HRC), 1.5m probe cable, 100-240V AC Adapter, Battery charger, 1 Li-On battery, carrying case.
| Measuring Indentor | Diamond indenter for Micro-Vickers (facing-to- surface angle of 136°) |
| Testing Force | SH-21-E2: Approx 2kgf (roughly 20N) SH-21-E1: Approx 1kgf (roughly 10N) SH-21-E4: Approx 4kgf (roughly 40N) (manual probe only) |
| Measuring Range | Rockwell hardness: HRC 10.0 - 70.0 Vickers hardness: HV 100 - 999 Shore hardness: HS 20.0 - 99.9 Brinell hardness: HB 85 - 550 |
| Resolution | 1HV, 0.1HRC, 0.1HS, 1HB, 1N/mm2 (tensile strength) |
| Repeatability | HRC : ± 1.0HRC HV : ± (3%rdg)HV HS : ± 1.0HS HB : ± (3%rdg)HB |
| Applicable test materials | Steel is the principle material, other metallic materials may also be measured by calibrating against a standard hardness test block. |
| Display | Digital display (LCD, 4 digits) with EL backlight |
| Temp limit | 0-50 C Ambient |
| Power | AC adapter(100 - 240V) or lithium ion rechargeable battery |
| Battery Life | 5 hours using backlight, 8 hours without backlight |

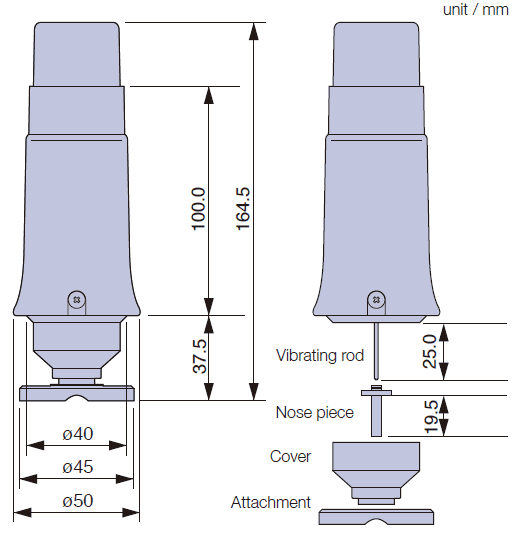

| Dimensions | Display: 97(W) x 50(D) x 170(H) mm Probe diameter: 40mm, length: 164mm |
| Weight | Display: approx. 400g (including battery) Probe and cable: approx. 400g |
| Carrying case dimensions | 400(W) x 220(D) x 140(H) mm |
| Output | RS-232C output used for data transmission or printing |
| Frequency | Motorized / manual switchover type approx 69-71kHz Manual type (optional) approx 38-40kHz |
| Conversion | HV, HRC, HS, HB, N/mm2 according to JIS B 7731, ASTM E 140, DIN 50150 |
| Warranty | 1 Year |
| Item | Description | Price | ||
|---|---|---|---|---|
SH-21 Metal Hardness Tester with 2Kg load | $5,995.00 | |||
SH-21 Metal Hardness Tester with 1Kg load | $5,995.00 | |||
SH-21 Metal Hardness Tester with 2Kg load and CE Certificate of Conformance | $6,695.00 | |||
SH-21-E2-DEMO | Sonohard Metal Hardness Tester, 2kg/20N load - DEMO Model | $5,495.00 | ||
| Accessories | ||||
CERT-SH21 | Traceable Calibration Certificate for SH-21 | $445.00 | ||
SP-M01-20 | SH-21 Motorized probe (2kgf 20N) | $3,595.00 | ||
SH-P07 | Measuring stand for SH-21 for small objects | $1,495.00 | ||

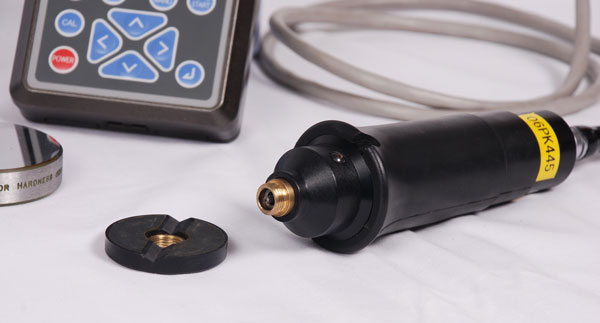

SH-P12 | Probe attachment, standard type for SH-21/21A/21B (previously, UA4-5410) | $95.00 | ||
SH-P03 | Stand for main unit | $110.00 | ||
SH-P06 | Probe attachment for pipe materials for SH-21 | $345.00 | ||
SH-P05 | Probe attachment for inner races for SH-21 | $595.00 | ||

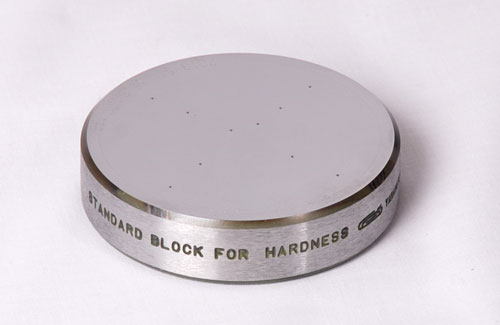

HRC55 | Standard Hardness Test Block around HRC55 | $245.00 | ||
HV600 | Standard Hardness Test Block around HV600 | $495.00 | ||
HB300 | Standard Hardness Test Block around HBW300 | $495.00 | ||
HS50 | Standard Hardness Test Block around HS50 | $495.00 | ||
DPU-H245AS | Printer with cable for SH-21 [DPU-S245] | $1,050.00 | ||
TP-S245L | Roll paper for printer 10 roll / 1 set [old p/n TP-H241L] | $105.00 | ||
SH-P22 | Probe cable for motorized probe for SH-21A/-21B | $695.00 | ||
MPC-SH-21 | Probe cable for motorized probe for SH-21 | $625.00 | ||
SH-P02 | RS-232C output cable for SH-21 | $225.00 | ||
MK-9511 | Rechargeable battery for SH-21B (not suitable for SH-21 & 21A) | $395.00 | ||
MK-9512 | Battery Charger for MK-9511 Rechargeable Battery (for SH-21B) | $495.00 | ||
MK-8401 | Rechargeable battery for SH-21 & 21A | $85.00 | ||
MK-8220 | Battery Charger for MK-8401 Battery for SH-21 | $395.00 | ||
A10WN-09010I | AC adapter 100-240V for SH-21 | $175.00 | ||
MK-9701A | Carrying case for SH-21 | $295.00 | ||
