G1001: 0.125" max. dia. / AWG 50 - AWG 8 (approximate)
G1001-1: 0.125" - 0.250" dia. / AWG 8 - AWG 2 (approximate)
G1001-2: 0.250" - 0.375" dia. / AWG 2 - AWG 0/2 (approximate)
G1001-1: 0.125" - 0.250" dia. / AWG 8 - AWG 2 (approximate)
G1001-2: 0.250" - 0.375" dia. / AWG 2 - AWG 0/2 (approximate)

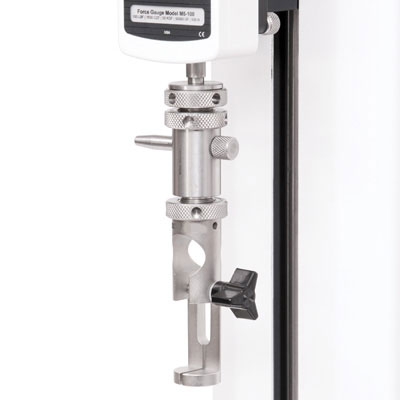

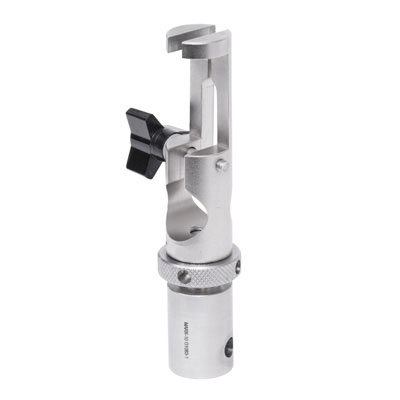

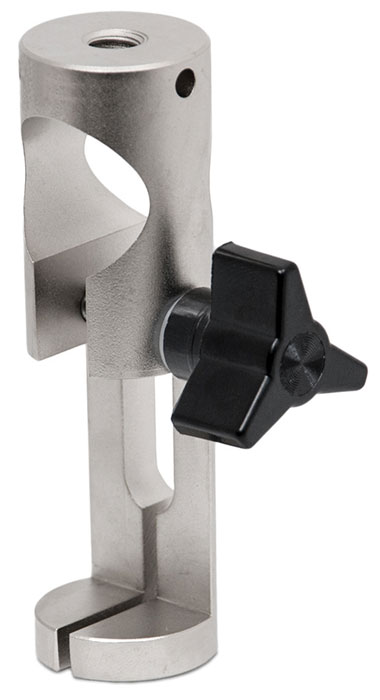

The G1001 wire terminal grips are designed for securing wire terminals, cables, connectors, and other samples for pull testing. Two wire diameter capacities are available, 0.125", 0.25" and 0.375". Use these grips with the G1002 dual roller grip, and choice of test stands and force gauges to create complete terminal and crimp testing systems.

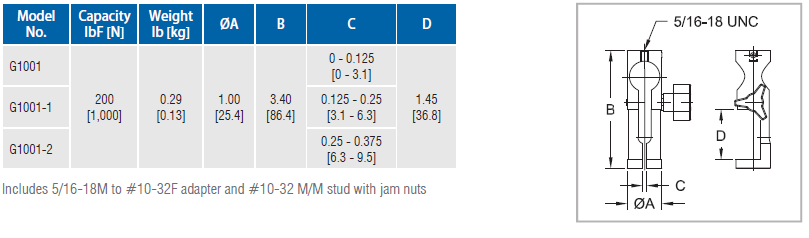

| Capacity | 200 lb |
| Thread | 5/16-18 |
| Dimensions | 3.43"L x 1"D |
| Weight | .29 lb |
| Sample Size | G1001: 0.125" max. dia. / 0 - AWG 8 G1001-1: 0.125" - 0.250" dia. / AWG 8 - 2 G1001-2: 0.250" - 0.375" dia. / AWG 2 - 0/2 |
| Item | Description | Price | ||
|---|---|---|---|---|
Wire Terminal Grip, 0 - .125" / 3.2mm | $325.00 | |||
Wire Terminal Grip, 0.125 - 0.25" / 6.3mm | $325.00 | |||
Wire Terminal Grip, 0.250 - 0.375" / 9.5mm | $325.00 |
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
