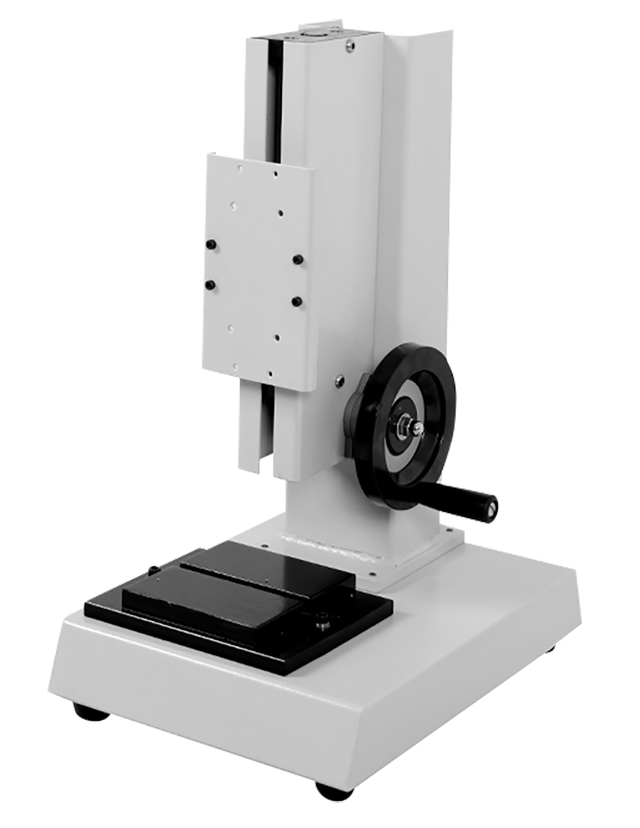

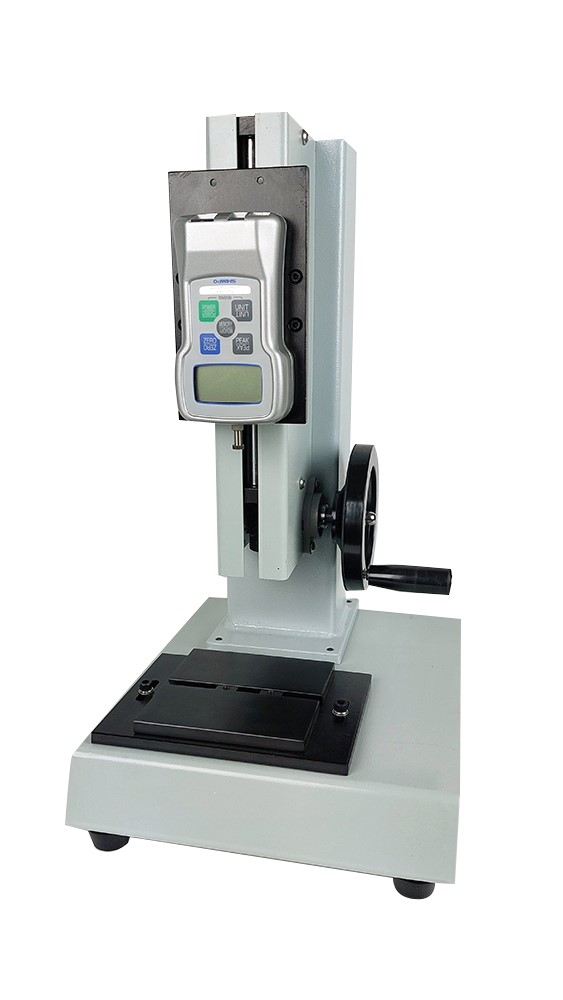

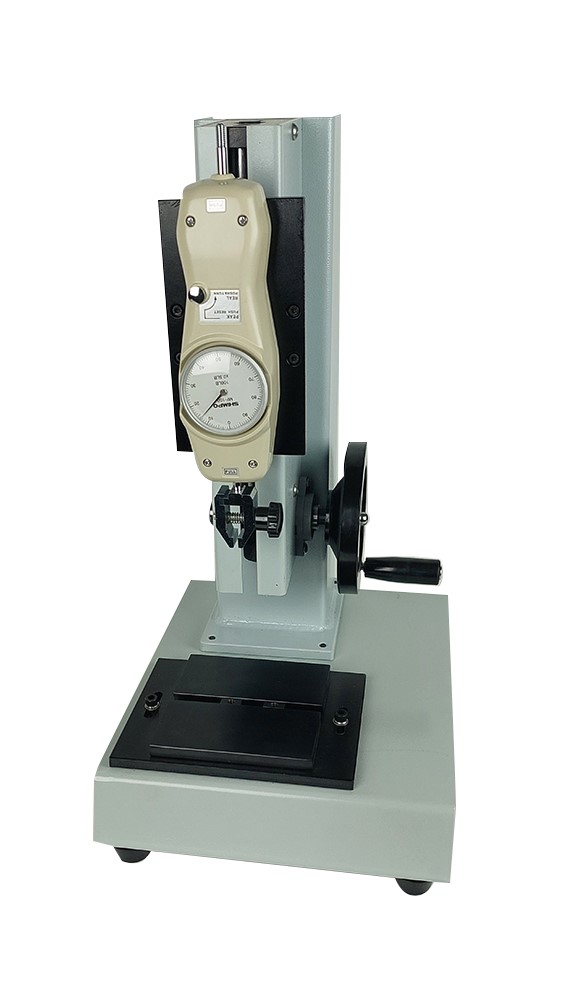

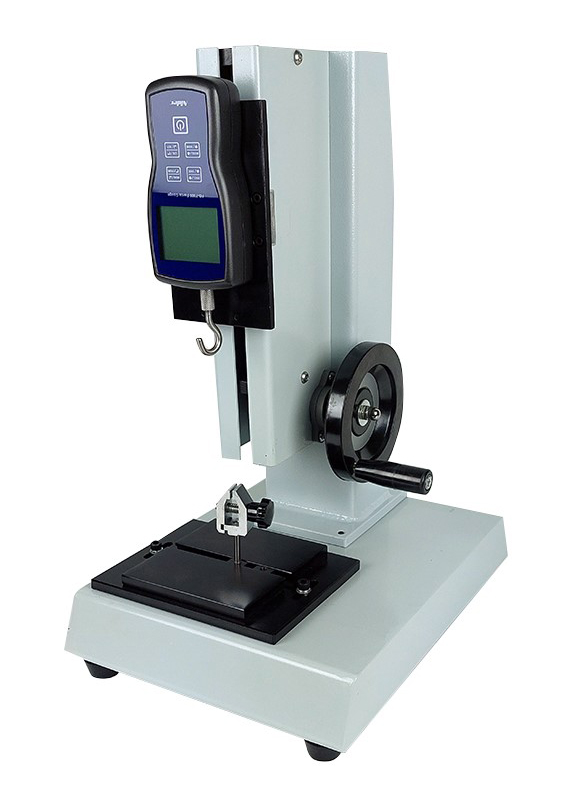

The FGS-200W Hand-Wheel Operated Vertical Test Stand includes a robust housing with a large, adjustable stand base. The FGS-200W is designed for use with a mechanical or digital force gauge. When combined with appropriate grip or attachments, this test stand can accomplish a variety of push/pull compression and tension as well as strength and destruction testing. Its side hand wheel loading is driven by an accurate screw displacement which achieves readily consistent, stable motion on that produces repeatable force tests. The FGS-200W possesses a slotted groove in the table base that contains two movable M6 threaded connectors which allows quick attachment grip installation. Also, the table base is easily adjustable with its four-way movement, providing for a simplified installation by reducing time to align the test grips with the mounted gauge adapter.
- Slot within table base contains two sliding M6 threaded connectors combined with adjustable table aids in testing set-u

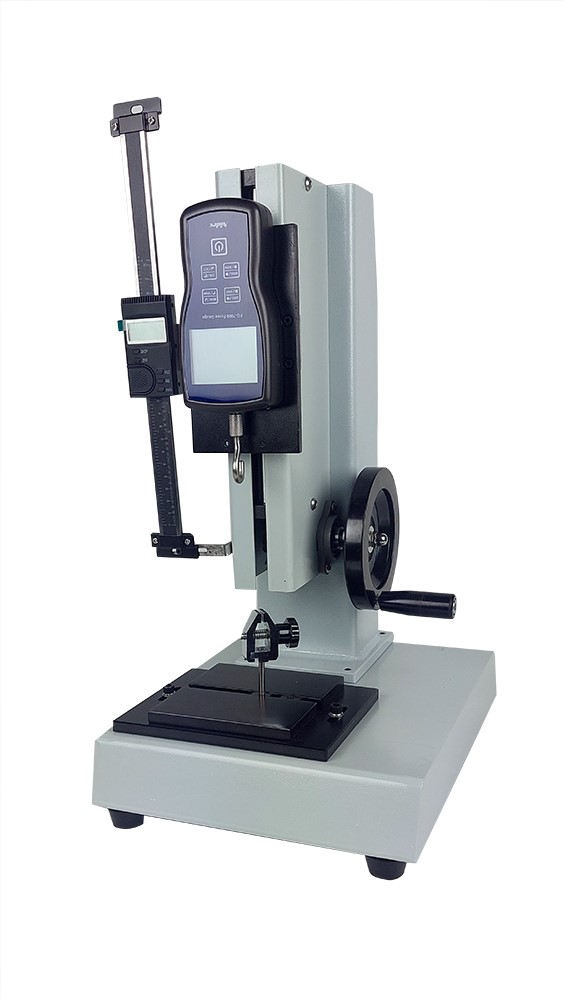

- Digital Scale kit available for high resolution movement recording
- Hand-Wheel operation idea for precise control of movement
| Capacity | 220 lb / 100 kg / 1000 N |
| Travel / Stroke | 7" / 180 mm |
| Travel Pitch | 0.060” (1.5 mm) per revolution of the hand wheel |
| Clearance | FGS-200W: 11.25” (285.75 mm) FGS-200W-EX: 22.44” (570 mm) |
| Weight | FGS-200W: 39.7 lb / 18 kg FGS-200W-EX: 66.1 lb / 30 kg |
| Dimensions | FGS-200W: 10.2 x 13.9 x 19.3” (260 x 352 x 490 mm). FGS-200W-EX: 10.2 x 13.9 x 30.7” (260 x 352 x 780 mm) |
| Include Accessories | Flat Chuck Grip, M6 x M6 male 45 mm threaded base connector, gauge and bracket mounting screws and bolts, Allen wrenches & mounting brackets and screws for digital scale (Digital Scale FGS-200W-DSK sold seperately) |
| Item | Description | Price | ||
|---|---|---|---|---|
Hand-Wheel Operated Vertical Test Stand, 220 lb / 100 kg / 1000 N | $695.00 | |||
Hand-Wheel Operated Vertical Test Stand, Extended-Height, 220 lb / 100 kg / 1000 N | $895.00 | |||
| Accessories | ||||
FGS-200W-DSK | Digital Scale for FGS-200W Manual Force Test Stand | $175.00 | ||
