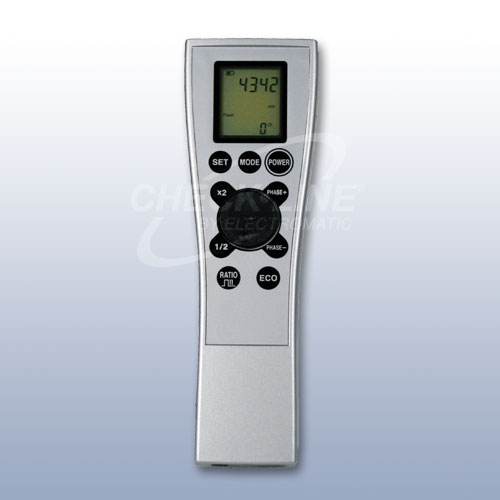

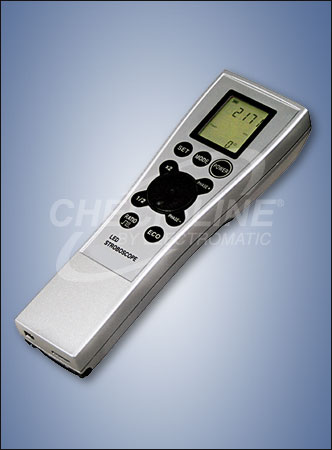

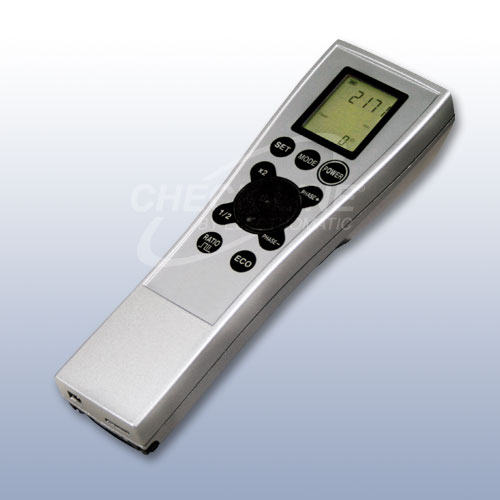

The DT-326 is a portable stroboscope utilizing super bright LED’s in a robust, durable all metal design. The DT-326’s unique LED array provides an accurate, stable strobe light. The innovative LED design allows for a longer flash life – 5 times longer than traditional xenon flashtubes!

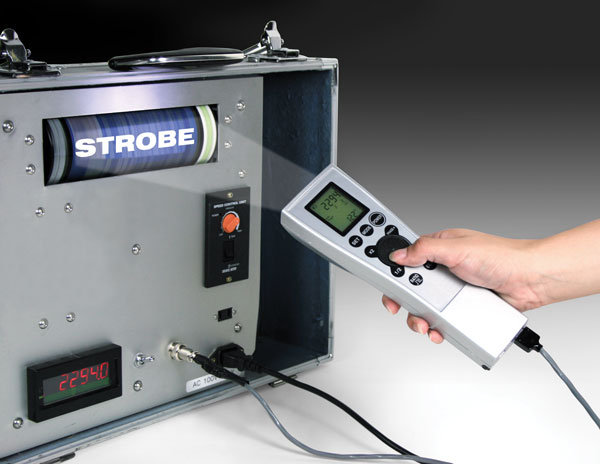

The DT-326 is designed for Speed (RPM) and Frequency (Hz) measurements in motion and vibration analysis. It is ideal for predictive and preventive maintenance applications such as: motors, shafts, roto-gravure printing, extruders, blow molding, wire lettering and striping, engraving, pulse jets, water jets, fans, cams, gear teeth, belt inspections, audio/speakers, fuel injectors, vibration analysis and cutting blade timing and sharpness. With its intuitive “ONE HAND” controls, vast adjustable flash rate, superior brightness, focus control, silent operation, AC/DC power flexibility, the DT-326 LED Stroboscope provides a superior value in a compact, ergonomic package.
- Wide Flash Range: 60-120,000 flashes per minute, can be applied to meet almost any HIGH-SPEED application
- Phase Shift: Advance or retard flash timing for viewing gear teeth, cutting surfaces, repeats or “drifting” images
- Ratio Control (Flash Pulse Duration): Adjustable Flash Pulse duration achieves sharper images for critical inspection
- All Metal Construction: Durable, comfortable, hand-held, fixed or swing arm mounted
- ECO Mode: Brightness control extends battery life
- Input/Output Interface: Input sensor triggers or Output synchronization controls
- AC/DC Operation: AC adapter for continuous use or (4xAA batteries) for maximum portability
- Includes Traceable Calibration Certificate
- 2 Year Warranty
at 30 cm Distance, 6000 flashes/min (FPM)
| Units of Measure | FPM (flashes per minute) or Hz (frequency) |
| Flash Rate Range | High Range: 60 - 120,000 FPM (1 - 2,000 Hz) LowRange: 60 - 12,000 FPM (1 - 200 Hz) |
| Flash Rate Accuracy | ±0.02% (at 77°F [25 °C]) |
| Ratio (Flash Duty) | 0.1 – 2.5° (/ 360°) Setting of every 0.1° |
| Light Source | High Brightness LEDs |
| Flash Mode | Normal and ECO (Power Saving Mode) |
| Flash Delay/Phase Shift | Time: 0 - 999 ms; Angle: 0 - 359° |
| Controls | Power, Multiply by 2, Divide by 2, Phase Shift±, Ratio, ECO, Mode Setting |
| External Trigger Input | Photocoupler input 12mA/DC12V |
| External Clock Output | Photocoupler Output 30mA/DC30V, Pulse width 200µs |
| Display | LCD with Backlight, Main Display: 6 characters, Sub-display: Flash, Units, Battery, Settings |
| Power Supply | 4 AA Alkaline Batteries: 80 minute operation in ECO mode, 20 minute in normal operation AC Adapter: AC 100V – 240V 50/60Hz 24 – 33VA (2.0A/DC5V) |
| Operating Temperature | 32 - 95° F (0 - 30° C) |

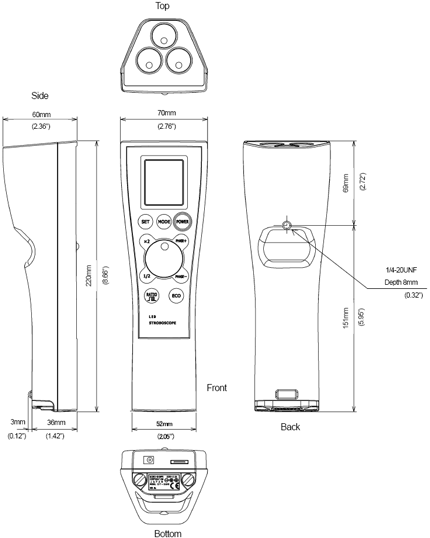

| Dimensions | 8.66" (220 mm) x 2.76" (70 mm) x 2.36" (60 mm) |
| Product Weight | 1.1 lbs (0.55 kg) |
| Certification | CE |
| Warranty | 2-Year |
| Flash Rate - Range(Resolution) | |
|---|---|
| High Range (FPM) | 60 - 30,000 FPM (1 FPM) 30,002 - 60,000 FPM (2 FPM) 60,005 - 100,000 FPM (5 FPM) 100,010 - 120,000 FPM (10 FPM) |
| Low Range (FPM) | 60.0 - 3,000.0 FPM (0.1 FPM) 3,000.2 - 6,000.0 FPM (0.2 FPM) 6,000.5 - 12,000.0 FPM (0.5 FPM) |
| High Range (Hz) | 0.1 - 2,000 Hz (0.1 Hz) |
| Low Range (Hz) | 0.01 - 200 Hz (0.01 Hz) |

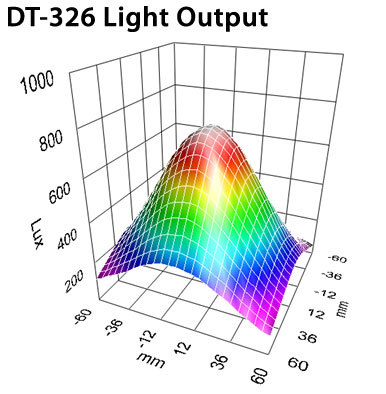

| Light Power | |
| Normal Mode | 1,300 lux: 6,000 FPM - 7.87in (20cm) 200 lux: 6,000 FPM - 19.69in (50cm) |
| ECO Mode | 400 lux: 6,000 FPM - 7.87in (20cm) 100 lux: 6,000 FPM - 19.69in (50cm) |
| Item | Description | Price | ||
|---|---|---|---|---|
REPLACED BY DT-326B - DT-326 LED Stroboscope Complete Kit | $ | |||
| Accessories | ||||
DT-326-BC | Battery Charger for DT-326 LED Stroboscope | $140.00 | ||
