Measuring Range: 0 - 50 mm / 0 - 2.0 inch
Jaw Depth: 600 mm / 23.6 inch
Resolution: 0.1 mm / 0.01 inch

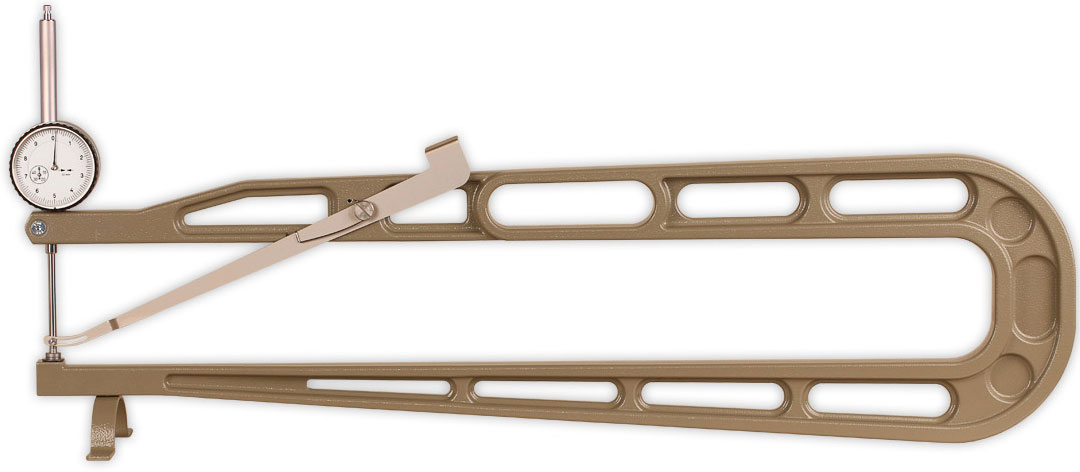

The K-600-50 deep jaw thickness gauge is an easy-to-read analog display along with high accuracy. 5 different feelers are available, they are listed below.

The K-600-50 is ideal for determining the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc.

Features

Self closing mechanism for fast and reliable measurements
5 different feelers
Calibration Certificate OPTIONAL

Feeler Shape

To order, please indicate the desired feeler, e.g. K-300-50-B for gauge with feeler B.

	Feeler: A For rubber, felt, soft materials, non wovens, etc. Meets no DIN EN ISO standard
	Feeler: B For rubber, felt, soft materials, non wovens, etc. Meets no DIN EN ISO standard
	Feeler: C For soft leather, cardboard, paper, foils, etc.
	Feeler: D For hard leather, plywood, fiberboard, etc.
	Feeler: E For sheet metal, etc.

Related Products

Click image for more info

K-200

Analog Dial Thickness Gauge with 200mm / 7.87 in Jaw Depth

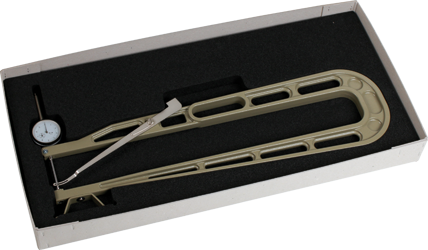

Complete Kit

Specifications

Measuring Range	50 mm (K models) 2.00" (KZ models)
Resolution	0.1mm (K models) 0.010" (KZ models)
Depth Of Jaw	600mm / 23.6"
Scale Diameter	54 mm / 2"
Feeler Shape	Select Feeler "A", "B", "C", "D" or "E"
Measuring Principle	Self closing
Weight, net (gross)	5 kg / 10lbs
