Measuring Range: 0 - 30 mm / 0 - 1.00 inch
Jaw Depth: 400 mm / 15.75 inch

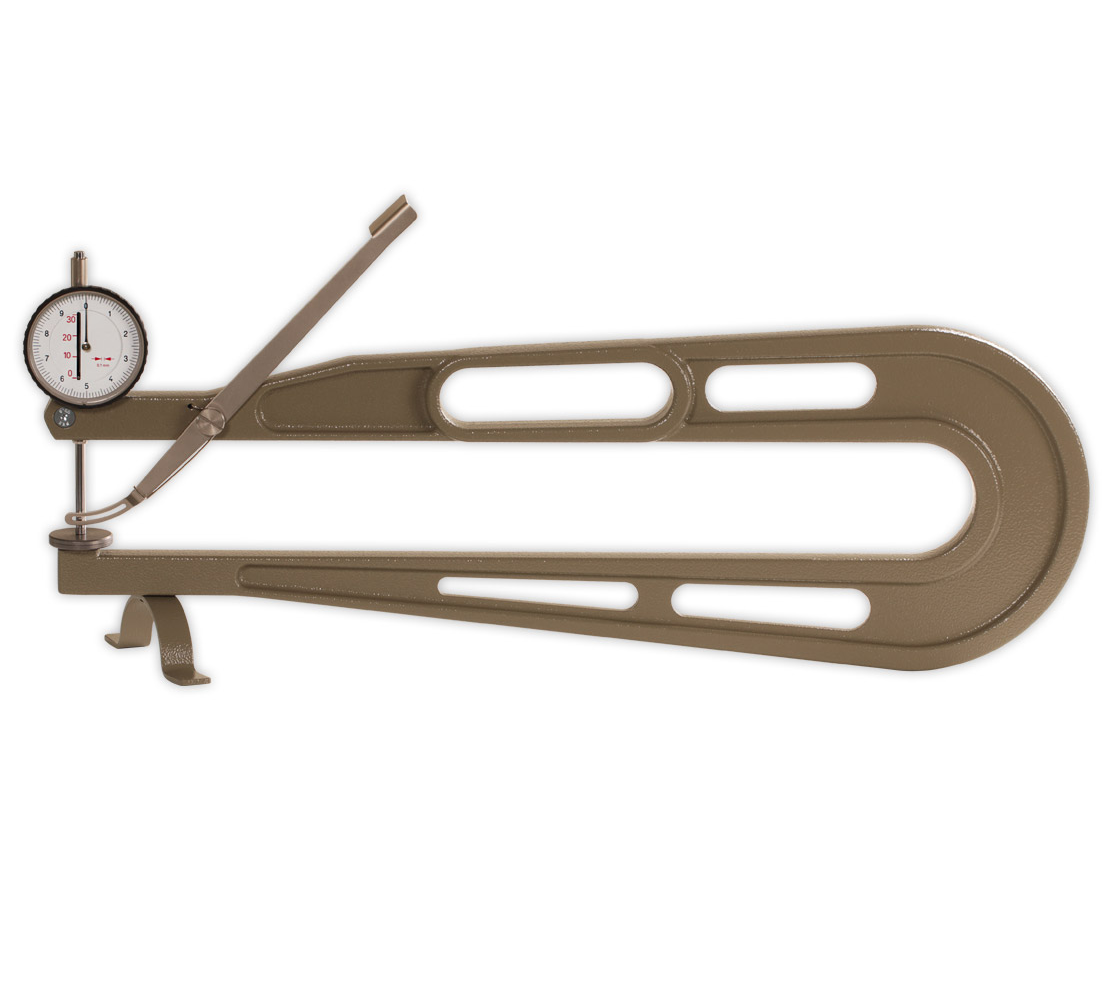

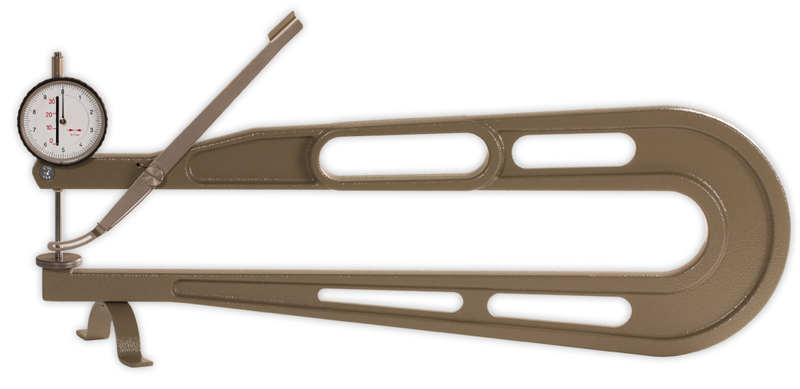

Resolution: 0.1 mm / 0.010 inch The K-400 thickness gauge features an easy to read analog display along with the high accuracy. The K-400 model is available with 5 different feelers, which can be found below. Measurement is done by a spring force. Opening by lifting device (lever) - self closing. Standard spring Force is 1.8N, however a Reduced Force Version offering 0.9N as well as a Increased Force Version offering 2.5N is available.
Jaw Depth: 400 mm / 15.75 inch
Resolution: 0.1 mm / 0.010 inch The K-400 thickness gauge features an easy to read analog display along with the high accuracy. The K-400 model is available with 5 different feelers, which can be found below. Measurement is done by a spring force. Opening by lifting device (lever) - self closing. Standard spring Force is 1.8N, however a Reduced Force Version offering 0.9N as well as a Increased Force Version offering 2.5N is available.
To order, please indicate the desired feeler, e.g. K-400-B for gauge with feeler >b<. This means that NOT all feelers are included in the package!
 |
Feeler: A For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard |
 |
Feeler: B For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard |
 |
Feeler: C For soft leather, cardboard, paper, foils, etc. |
 |
Feeler: D For hard leather, plywood, fiberboard, etc. |
 |
Feeler: E For sheet metal, etc. |
| Range | 1.00" (KZ models) 30 mm (K models) |
| Resolution | 0.010" (KZ models) 0.1 mm (K models) |
| Range per revolution | 0.4" (10 mm) |
| Bezel-Ø | 2.3" (58 mm) |
| Depth of Jaw | 15.75" (400 mm) |
| Feeler Type | Select Feeler "A", "B", "C", "D" or "E" |
| Test Pressure | 1.8N Standard (optional 0.9N and 2.5N) |
| Weight | 3 Lbs (1.4 Kg) |
| Item | Description | Price | ||
|---|---|---|---|---|
Analog Thickness Gauge, 30mm range, 400mm Jaw Depth, 30mm dia feelers (Code A) | $395.00 | |||
Analog Thickness Gauge, 30mm range, 400mm Jaw Depth, 20mm dia feelers (Code B) | $395.00 | |||
Analog Thickness Gauge, 30mm range, 400mm Jaw Depth, 10mm dia feelers (Code C) | $395.00 | |||
Analog Thickness Gauge, 30mm range, 400mm Jaw Depth, 10mm dia curved feelers (Code D) | $395.00 | |||
Analog Thickness Gauge, 30mm range, 400mm Jaw Depth, 5mm dia curved feelers (Code E) | $395.00 | |||
Analog Thickness Gauge, 1 inch range, 400mm Jaw Depth, 30mm dia feelers (Code A) | $395.00 | |||
Analog Thickness Gauge, 1 inch range, 400mm Jaw Depth, 20mm dia feelers (Code B) | $395.00 | |||
Analog Thickness Gauge, 1 inch range, 400mm Jaw Depth, 10mm dia feelers (Code C) | $395.00 | |||
Analog Thickness Gauge, 1 inch range, 400mm Jaw Depth, 10mm dia curved feelers (Code D) | $395.00 | |||
Analog Thickness Gauge, 1 inch range, 400mm Jaw Depth, 5mm dia curved feelers (Code E) | $395.00 | |||
| Accessories | ||||
NISTCAL | NIST Traceable Calibration Certificate | $100.00 | ||
