Measuring Range: 0 - 30 mm / 0 - 1.2 inch
Jaw Depth: 200 mm / 7.87 inch

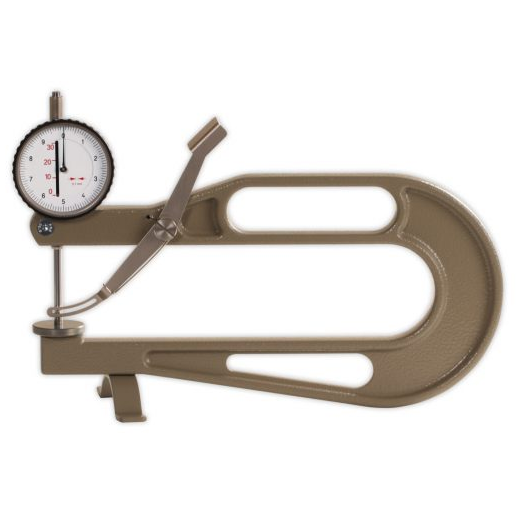

Resolution: 0.1 mm / 0.010 inch The K-200 thickness gauge features an easy-to-read analog display along with high accuracy. The K-200 model is available with 5 different feelers, which can be found below. Measurement is done by a spring force. Opening by lifting device (lever) - self-closing. The K-200 is ideal for determining the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc. Standard spring Force is 1.8N, however, a Reduced Force Version offering 0.9N as well as a Increased Force Version offering 2.5N is available.
Jaw Depth: 200 mm / 7.87 inch
Resolution: 0.1 mm / 0.010 inch The K-200 thickness gauge features an easy-to-read analog display along with high accuracy. The K-200 model is available with 5 different feelers, which can be found below. Measurement is done by a spring force. Opening by lifting device (lever) - self-closing. The K-200 is ideal for determining the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc. Standard spring Force is 1.8N, however, a Reduced Force Version offering 0.9N as well as a Increased Force Version offering 2.5N is available.
To order, please indicate the desired feeler, e.g. K-200-B for gauge with feeler B.
 |
Feeler: A For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard |
 |
Feeler: B For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard |
 |
Feeler: C For soft leather, cardboard, paper, foils, etc. |
 |
Feeler: D For hard leather, plywood, fiberboard, etc. |
 |
Feeler: E For sheet metal, etc. |
The K-200 comes complete with gauge in transport packing case.
| Measuring Range | 1.00" (KZ models) 30 mm (K models) |
| Resolution | 0.010" (KZ models) 0.1 mm (K models) |
| Depth Of Jaw | 7.87 in (200 mm) |
| Scale Diameter | 2.3 in (58 mm) |
| Measuring Pressure | 2 N (Optional: 1 N or 4 N) |
| Feeler Shape | Select Feeler "A", "B", "C", "D" or "E" |
| Measuring Principle | Self closing |
| Weight, net (gross) | 1.5 Lbs (700 g) |
| Item | Description | Price | ||
|---|---|---|---|---|
Analog Thickness Gauge, 30mm range, 200mm Jaw Depth, 30mm dia feelers (Code A) | $395.00 | |||
Analog Thickness Gauge, 30mm range, 200mm Jaw Depth, 20mm dia feelers (Code B) | $395.00 | |||
Analog Thickness Gauge, 30mm range, 200mm Jaw Depth, 10mm dia feelers (Code C) | $395.00 | |||
Analog Thickness Gauge, 30mm range, 200mm Jaw Depth, 10mm dia radiused feelers (Code D) | $395.00 | |||
Analog Thickness Gauge, 30mm range, 200mm Jaw Depth, 5mm dia radiused feelers (Code E) | $395.00 | |||
Analog Thickness Gauge, 1 Inch range, 200mm Jaw Depth, 30mm dia feelers (Code A) | $395.00 | |||
Analog Thickness Gauge, 1 Inch range, 200mm Jaw Depth, 20mm dia feelers (Code B) | $395.00 | |||
Analog Thickness Gauge, 1 Inch range, 200mm Jaw Depth, 10mm dia feelers (Code C) | $395.00 | |||
Analog Thickness Gauge, 1 Inch range, 200mm Jaw Depth, 10mm dia radiused feelers (Code D) | $395.00 | |||
Analog Thickness Gauge, 1 Inch range, 200mm Jaw Depth, 5mm dia radiused feelers (Code E) | $395.00 | |||
| Accessories | ||||
NISTCAL | NIST Traceable Calibration Certificate | $100.00 | ||
