Measuring Ranges: 0 - 0.500" / 0 – 12.50 mm
Resolution: 0.001", 0.01 mm

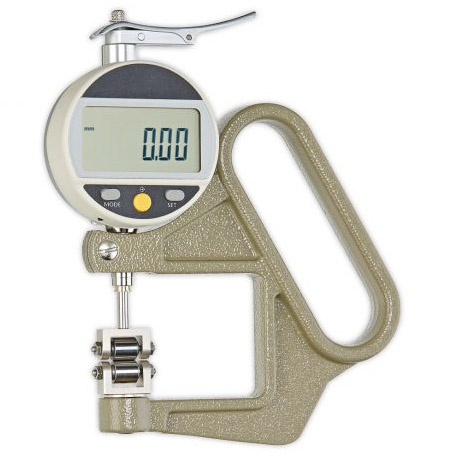

Jaw Depth: 50mm / 2" The JD-50R is a digital thickness gauge with ball-bearing mounted cylindrical rollers. It is ideal for measuring the diameter or thickness of slowly moving wire, filaments, foil, ribbon, narrow fabrics, etc., without stopping manufacturing.
Resolution: 0.001", 0.01 mm
Jaw Depth: 50mm / 2" The JD-50R is a digital thickness gauge with ball-bearing mounted cylindrical rollers. It is ideal for measuring the diameter or thickness of slowly moving wire, filaments, foil, ribbon, narrow fabrics, etc., without stopping manufacturing.
- Selectable units of measurement (mm or inch)
- Calibration Certificate OPTIONAL
- Precision steel rollers for wire speeds up to 500 ft/min
- Available with or without roller flanges
- USB and RS-232 output
The JD-50R is supplied as a kit with carrying case, and instruction manual.
| Measuring range | 0 – 12.5 mm / 0.5 inch |
| Resolution | 0.01 mm / 0.001 inch |
| Depth of jaw | 50 mm / 2" |
| Jaw Operation | Self closing (spring assisted) |
| Display | LCD 6 digit, 8.5 mm high |
| Measuring system | Capacitive (Sylvac) |
| Temperature range | 10 – 45 °C |
| Battery | 3 V Lithium, CR 2032 |
| Data output | USB, RS-232 |
| Weight, net (gross) | Approx. 390 g (675 g) |
| Item | Description | Price | ||
|---|---|---|---|---|
Digital Running Diameter/Thickness Gauge, 0 - 12.50 mm / 0 - 0.500", with flanges, 50 mm jaw depth | $1,095.00 | |||
Digital Running Diameter/Thickness Gauge, 0 - 12.50 mm / 0 - 0.500", without flanges, 50 mm jaw depth | $1,095.00 | |||
| Accessories | ||||
NISTCAL | NIST Traceable Calibration Certificate | $100.00 | ||
