Measuring Range: 0 - 10.00 mm / 0 - 0.400 inch
(25 mm /1 inch range, optional)
Resolution: 0.01 mm / 0.001 inch
(25 mm /1 inch range, optional)
Resolution: 0.01 mm / 0.001 inch

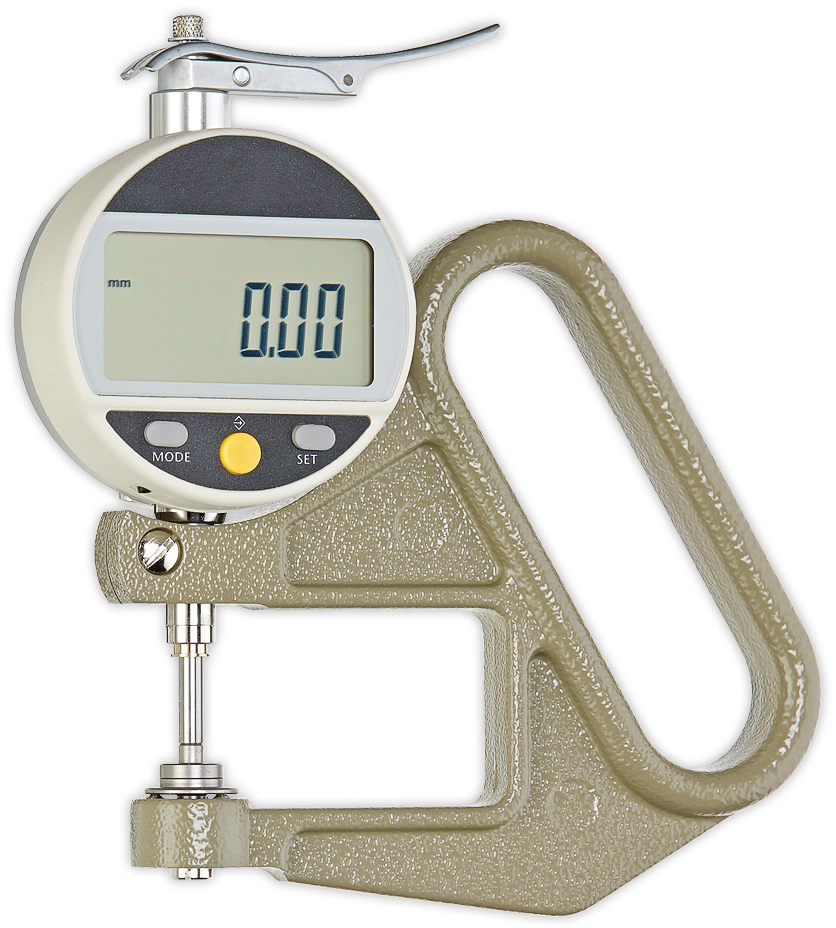

The 500-JD digital thickness gauge features an easy to read LCD display along with the high accuracy. The user can select to display thickness in inches or mm.
The 500-JD model is available with 5 different feelers, which can be found below. Measurement is done by a spring force. Opening by lifting device (lever) - self closing.
- Operating by lifting device - self closing
- Resolution 0.001 inch(0.01 mm)
- Easy to read LCD Display
- User selectable units mm and inch
- USB Data Output (requires optional cable, DCPRMD-USB)
- Dial gauge model: Sylvac S 229
- Depth of Throat 50 mm (2 inches)
To order, please indicate the desired feeler, e.g. 500-JD-B for gauge with feeler >b<. This means that NOT all feelers are included in the package!
 |
Feeler: A For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard |
 |
Feeler: B For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard |
 |
Feeler: C For soft leather, cardboard, paper, foils, etc. |
 |
Feeler: D For hard leather, plywood, fiberboard, etc. |
 |
Feeler: E For sheet metal, etc. |
| Resolution: | 0.01 mm / 0.001 inch |
| Measuring range: | 0 - 10 mm / 0.4 inch |
| Depth of jaw: | 50 mm / 2 inch |
| Display: | LCD 6 digit, 8.5 mm high |
| Measuring principle: | Capacitive (Sylvac) |
| Measuring pressure: | < 1.4 N |
| Feeler shape: | a,b,c,d or e |
| Lifting device: | Operating by lifting device - self closing |
| Data output: | RS 232, optical coupling |
| Power supply: | Battery, 3 V Lithium, CR 2032 |
| Temperature range: | 10 - 45°C |
| Weight, net: | 300 g |
| Item | Description | Price | ||
|---|---|---|---|---|
| Models with 10mm / 0.4" Range | ||||
Digital Thickness Gauge, 10mm / .4" Range, with 30mm footers - 500-JD-A | $695.00 | |||
Digital Thickness Gauge, 10mm / .4" Range, with 20mm footers - 500-JD-B | $695.00 | |||
Digital Thickness Gauge, 10mm / .4" Range, with 10mm footers - 500-JD-C | $695.00 | |||
Digital Thickness Gauge, 10mm / .4" Range, with 10mm Curved footers - 500-JD-D | $695.00 | |||
Digital Thickness Gauge, 10mm / .4" Range, with 5mm Curved footers - 500-JD-E | $695.00 | |||
| Models with 25mm / 1" Range | ||||
Digital Thickness Gauge, 25mm / 1" Range, with 30mm footers - 500-JD-A | $845.00 | |||
Digital Thickness Gauge, 25mm / 1" Range, with 20mm footers - 500-JD-B | $845.00 | |||
Digital Thickness Gauge, 25mm / 1" Range, with 10mm footers - 500-JD-C | $845.00 | |||
Digital Thickness Gauge, 25mm / 1" Range, with 10mm Curved footers - 500-JD-D | $845.00 | |||
Digital Thickness Gauge, 25mm / 1" Range, with 5mm Curved footers - 500-JD-E | $845.00 | |||
| Accessories | ||||
NISTCAL | NIST Traceable Calibration Certificate | $100.00 | ||
DCPRMD-USB | USB Data Output Cable (2m/6ft) for FD and JD thickness Gauges with Free Software | $195.00 | ||
