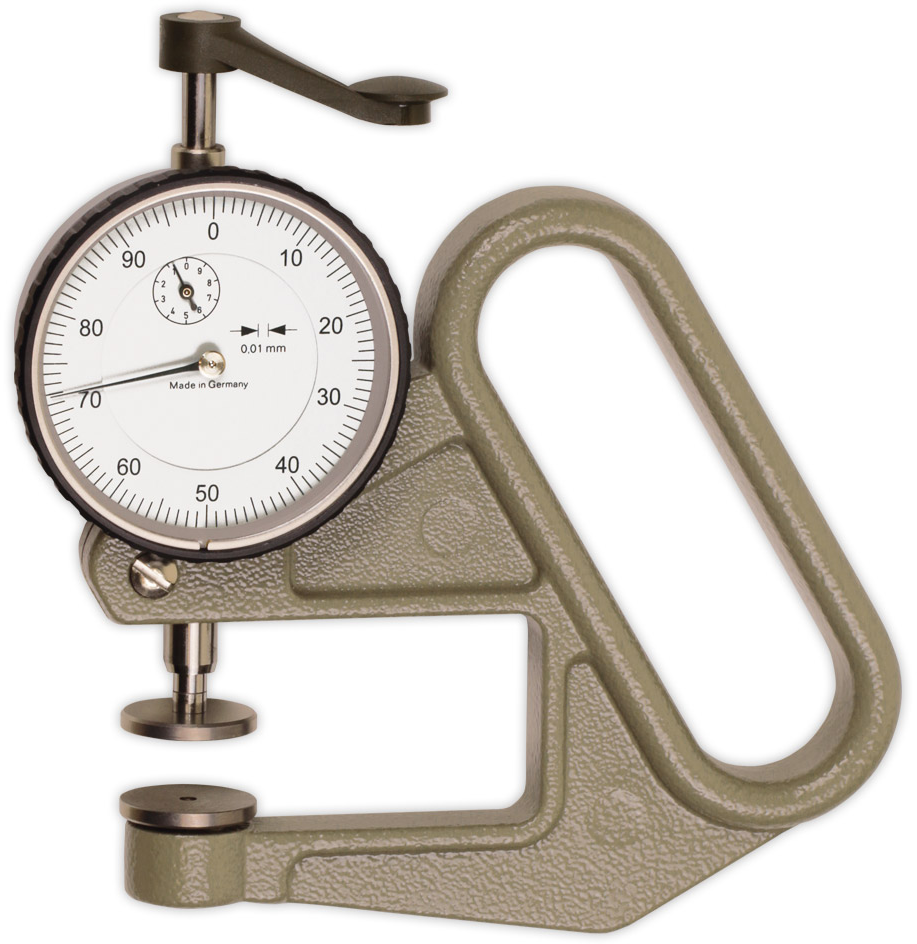

J-50 Analog Thickness Gauge with 50mm Jaw Depth

Made in Germany
Click images to enlarge.
Thickness gauges are used for measuring the thickness of leather, textile, cardboard, felt, rubber, sheet metal, foils, plywood, plastic parts of all kind, etc.

The J-50 model is available with 5 different feelers, which can be found below. Measurement by manual pressure by plunger.

Features

  • Metric or Inch Dials Available
  • Resolution 0.01 mm or 0.001 inch
  • Measurement by manual pressure by plunger
  • Opening by spring force - self opening
  • NIST-Traceable Calibration Certificate is optional

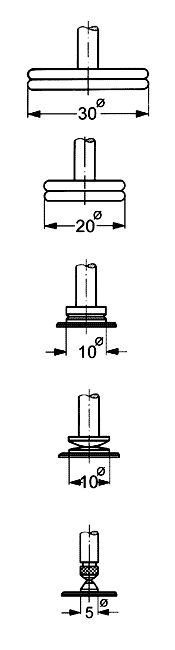

Feeler Shape

To order, please indicate the desired feeler, e.g. J-50-B for gauge with feeler >b<. This means that NOT all feelers are included in the package!
Feeler: A

For rubber, felt*, soft materials*, non wovens*, etc.

*Meets no DIN EN ISO standard Customized feeler type >a< with diameter 30 to 56 mm are available on request at extra charge

Feeler: B For rubber, felt*, soft materials*, non wovens*, etc.

*Meets no DIN EN ISO standard



Feeler: C

For soft leather, cardboard, paper, foils, etc.



Feeler: D

For hard leather, plywood, fiberboard, etc.



Feeler: E

For sheet metal, etc.



Related Products

Click image for more info
Table Stand for Thickness Gauge
- Table stand for thickness gauges

Specifications

Resolution:0.01 mm
Measuring range:10 mm
Depth of jaw:50 mm
Scale diameter:58 mm
Feeler shape:a,b,c,d or e
Spring force:Self opening
Weight, net:300 g

Downloads

Buy Now

Item Description Price
Dial Thickness Gauge, 10m Range, 50mm Jaw Depth, feeler A (30mm dia)
$295.00
Dial Thickness Gauge, 10m Range, 50mm Jaw Depth, feeler B (20mm dia)
$295.00
Dial Thickness Gauge, 10m Range, 50mm Jaw Depth, feeler C (10mm dia)
$295.00
Dial Thickness Gauge, 10m Range, 50mm Jaw Depth, feeler D (10mm dia, curved)
$295.00
Dial Thickness Gauge, 10m Range, 50mm Jaw Depth, feeler E (5mm dia, curved)
$295.00
Dial Thickness Gauge, 0.4in Range, 50mm Jaw Depth, feeler A (30mm dia)
$295.00
Dial Thickness Gauge, 0.4in Range, 50mm Jaw Depth, feeler B (20mm dia)
$295.00
Dial Thickness Gauge, 0.4in Range, 50mm Jaw Depth, feeler C (10mm dia)
$295.00
Dial Thickness Gauge, 0.4in Range, 50mm Jaw Depth, feeler D (10mm dia, curved)
$295.00
Dial Thickness Gauge, 0.4in Range, 50mm Jaw Depth, feeler E (5mm dia, curved)
$295.00
Accessories
NISTCAL
NIST Traceable Calibration Certificate
$100.00
J-50-100-TS
Table Stand for for J-50 and J-100 Thickness Gauges
$130.00
