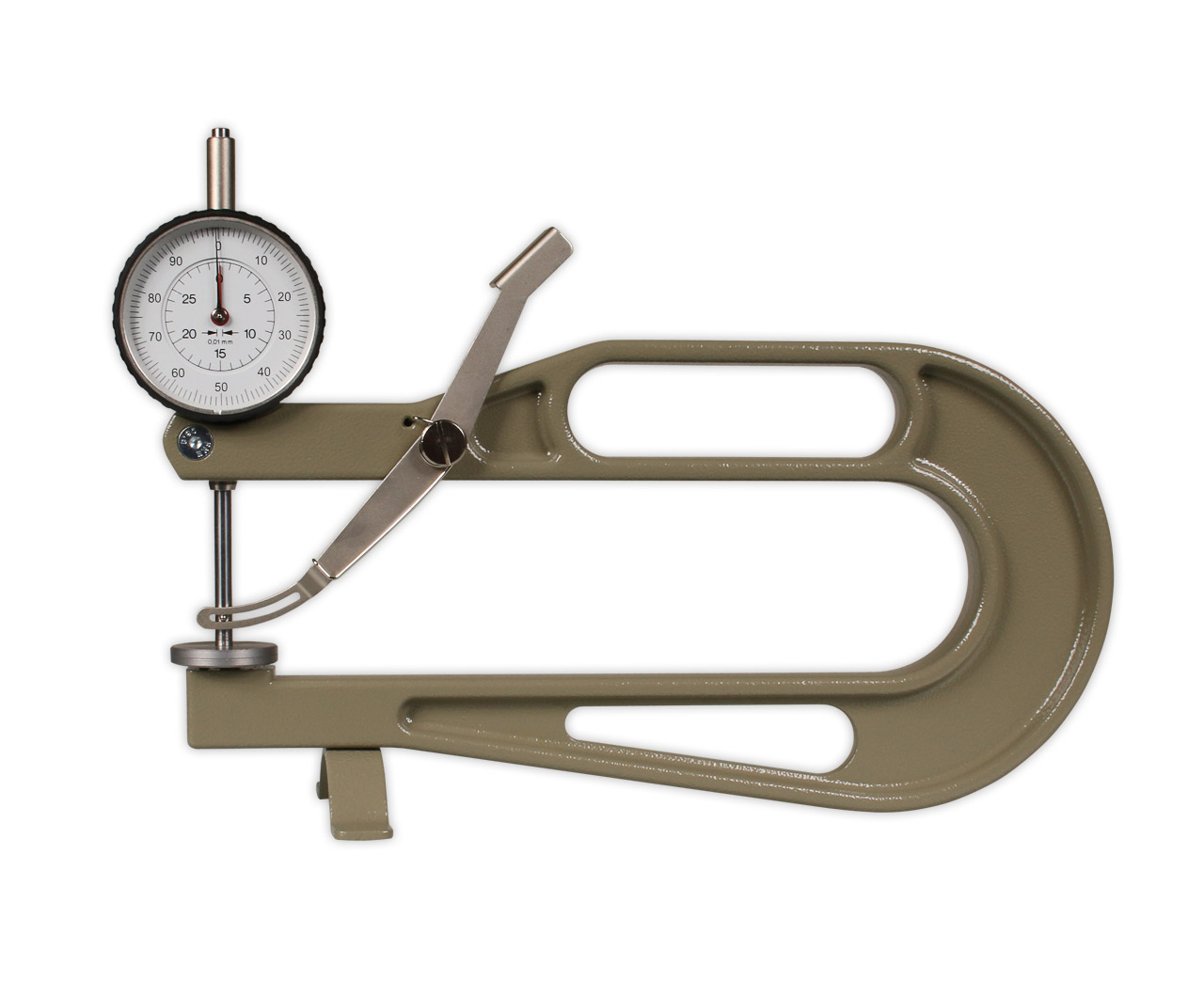

J-200 Analog Dial Thickness Gauge

J-200 Dial Thickness Gauge
Click images to enlarge.
Measuring Range: 0 - 10 mm / 0 - 0.40 inch
Jaw Depth: 200 mm / 8 inch
Resolution: 0.01 mm / 0.0004 inch

The J-200 thickness gauge features an easy to read analog display along with the high accuracy.

The J-200 model is available with 5 different feelers, which can be found below. Measurement is done by a spring force. Opening by lifting device (lever) - self closing.

The J-200 is ideal for determine the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc.

Available Models

ModelMeasuring rangeResolutionDepth of jaw
J-20010 mm (0.40 inch)0.01 mm (0.0005 inch)200 mm (7.87 inch)

Feeler Shape

To order, please indicate the desired feeler, e.g. K-200-B for gauge with feeler B. This means that NOT all feelers are included in the package!
Feeler: A

For rubber, felt*, soft materials*, non wovens*, etc.

*Meets no DIN EN ISO standard
Feeler: B

For rubber, felt*, soft materials*, non wovens*, etc.

*Meets no DIN EN ISO standard
Feeler: C

For soft leather, cardboard, paper, foils, etc.
Feeler: D

For hard leather, plywood, fiberboard, etc.
Feeler: E

For sheet metal, etc.

Complete Kit

The J-200 comes complete with guage in transport packing case.

Specifications

Resolution0.01 mm (0.0004 inch)
Measuring Range10 mm (0.40 inch)
Depth Of Jaw200 mm (7.87 inch)
Scale Diameter54 mm (2.1 inch)
Measuring Pressure1.5 N (Optional: 1.2 N or 3 N)
Feeler ShapeSelect Feeler "A", "B", "C", "D" or "E"
Measuring PrincipleSelf closing
Weight, net (gross)2.5 Lbs (1100 g)

Buy Now

Item Description Price
Dial Thickness Gauge, 200mm Jaw Depth, 10mm range - Feeler A (30 mm)
$450.00
Dial Thickness Gauge, 200mm Jaw Depth, 10mm range - Feeler B (20 mm)
$450.00
Dial Thickness Gauge, 200mm Jaw Depth, 10mm range - Feeler C (10 mm)
$450.00
Dial Thickness Gauge, 200mm Jaw Depth, 10mm range - Feeler D (10 mm curved)
$450.00
Dial Thickness Gauge, 200mm Jaw Depth, 10mm range - Feeler E (5 mm curved)
$450.00
Dial Thickness Gauge, 200mm Jaw Depth, 0.4 Inch range - Feeler A (30 mm)
$450.00
Dial Thickness Gauge, 200mm Jaw Depth, 0.4 Inch range - Feeler B (20 mm)
$450.00
Dial Thickness Gauge, 200mm Jaw Depth, 0.4 Inch range - Feeler C (10 mm)
$450.00
Dial Thickness Gauge, 200mm Jaw Depth, 0.4 Inch range - Feeler D (10 mm curved)
$450.00
Dial Thickness Gauge, 200mm Jaw Depth, 0.4 Inch range - Feeler E (5 mm curved)
$450.00
Accessories
NISTCAL
NIST Traceable Calibration Certificate
$100.00
