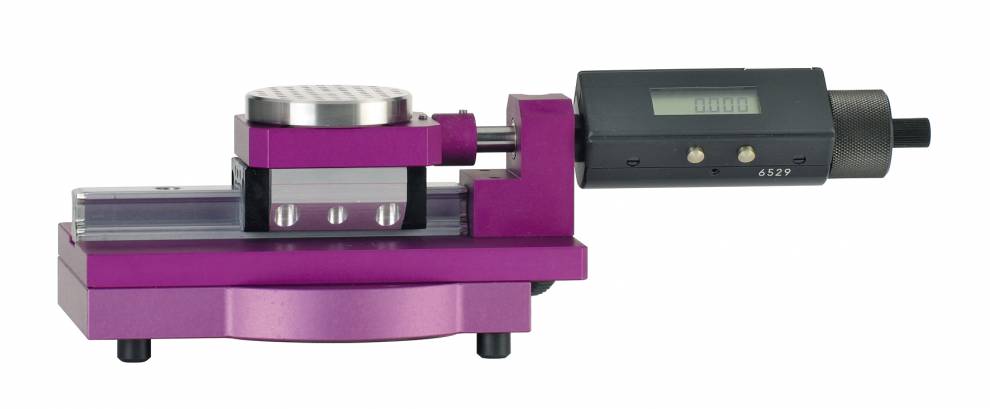

The X-Table centering device works with our IRHD-MICRO hardness tester. This fixture is designed to measure small irregular parts. Two straight pins are used as rest positions for the sample. The sample can be easily fixed with modelling clay. The digital distance meter allows for precise measurement at the measuring axis (the highest point of the sample).
- Custom designed sample holders are available
- Sample holder is locked in place with a straight pin preventing any rotation
- Connecting hole in base for sample holder: 8H7
| Dimensions | 260 mm x 140 mm x 70 mm |
| Net Weight | 1.35 kg |
| Distance Meter | |
|---|---|
| Measuring Range | 0-25mm |
| Resolution | 0.001mm |
| Functions | On/Off, mm/inch, HOLD, PRESET |

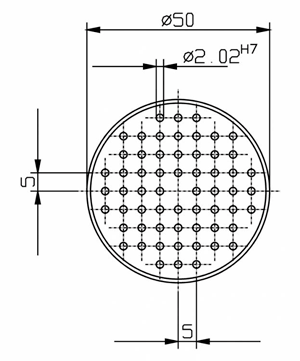

| Sample Holder | |
| Diameter | 50mm |
| Matrix | 5mm x 5mm, 60 holes with a diameter of 2H7 |
| Pins | 2 straight pins included |
