Measuring Ranges:
Model DC15: 0 to 15,000 Volts
Model DC30: 0 to 30,000 Volts Resolution:
Model DC15: 10 Volts

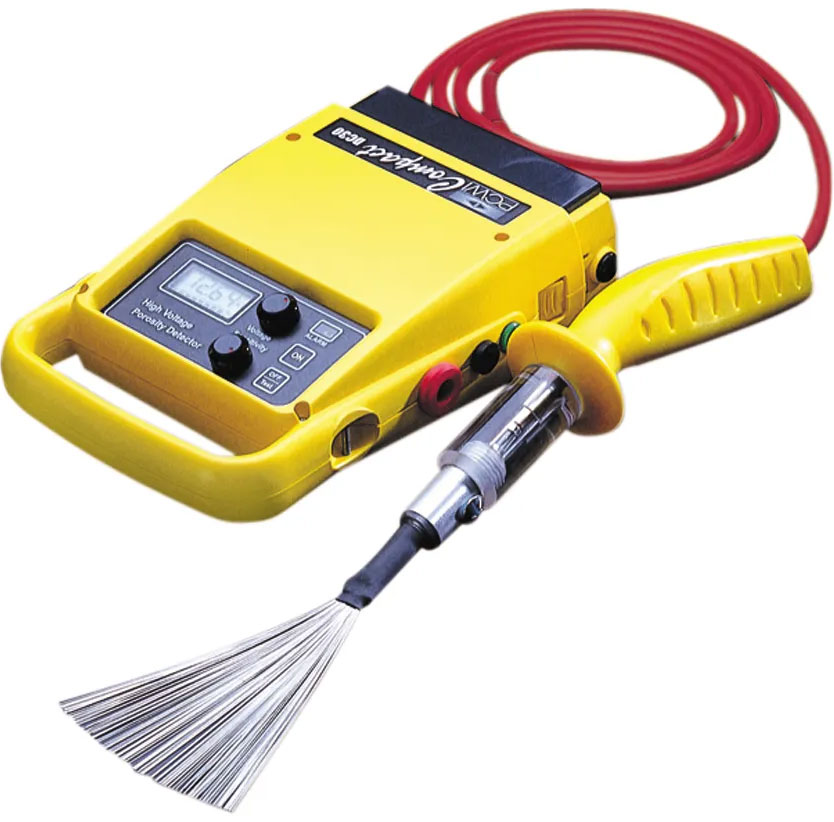

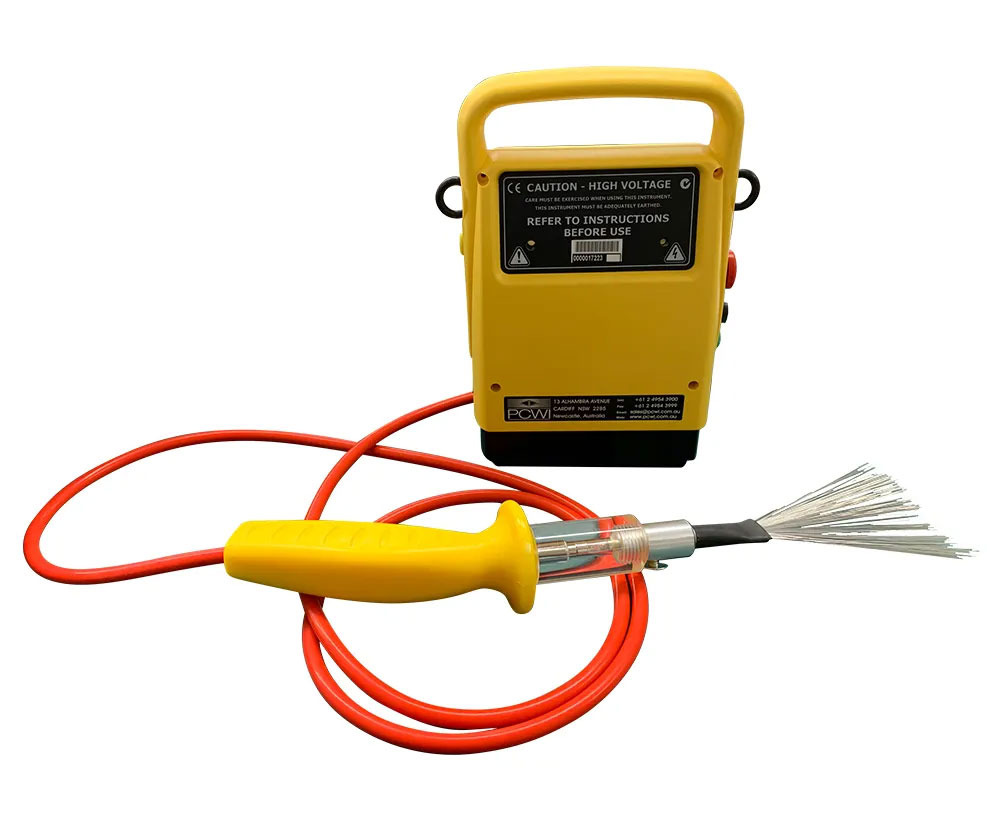

Model DC30: 10 Volts The PCWI Compact Holiday Detector is a High Voltage DC Porosity detector also known as holiday detectors, spark testers, porosimeters or jeepers. These are used to ensure the longevity of coating systems by locating pin holes, air bubbles, and porosity in non-conductive coatings on conductive substrates, including concrete. Suitable for production pipeline coating operations, tankwork and structures. Ideal for use on storage tanks, valves and pipelines.
Model DC15: 0 to 15,000 Volts
Model DC30: 0 to 30,000 Volts Resolution:
Model DC15: 10 Volts
Model DC30: 10 Volts The PCWI Compact Holiday Detector is a High Voltage DC Porosity detector also known as holiday detectors, spark testers, porosimeters or jeepers. These are used to ensure the longevity of coating systems by locating pin holes, air bubbles, and porosity in non-conductive coatings on conductive substrates, including concrete. Suitable for production pipeline coating operations, tankwork and structures. Ideal for use on storage tanks, valves and pipelines.
- Light weight ABS case
- Digital display of applied voltage with integral battery condition indicator
- Regulated DC voltage
- Momentary on-switch allows for automatic shut-off
- Voltage ranges of 0 to 15kV or 0 to 30kV, fully adjustable
- Clip-on battery pack
- Constant test current
- Sensitivity control
- Overcharge protection
- Single power supply
- Earphones for noisy environments
- Optional on/off switch in handle
| Model: | DC15 | DC30 |
| Unit Weight: | 4.8 lbs (2.2 kg) | 4.8 lbs (2.2 kg) |
| Packed Weight: | 13.2 lbs (6.0 kg) | 13.2 lbs (6.0 kg) |
| Display: | LCD 3-1/2 digits | LCD 3-1/2 digits |
| Voltage: | 0 to 15,000 V | 0 to 30,000 V |
| Probe Resolution: | 10V | 10V |
| Short Circuit Test Current: | 0.5 mA max. | |
| Power Supply: | Gell Cell 3Ah Slide-Off | |
| Dimensions: | 10.25" x 6.3" x 2.8" (260 x 160 x 70 mm) | |
| Alarm: | Audible and visual | |
| Probe: Handle | 79" (2 m) high-voltage silicon-rubber cable | |
| Battery Condition | LCD display bar graph | |

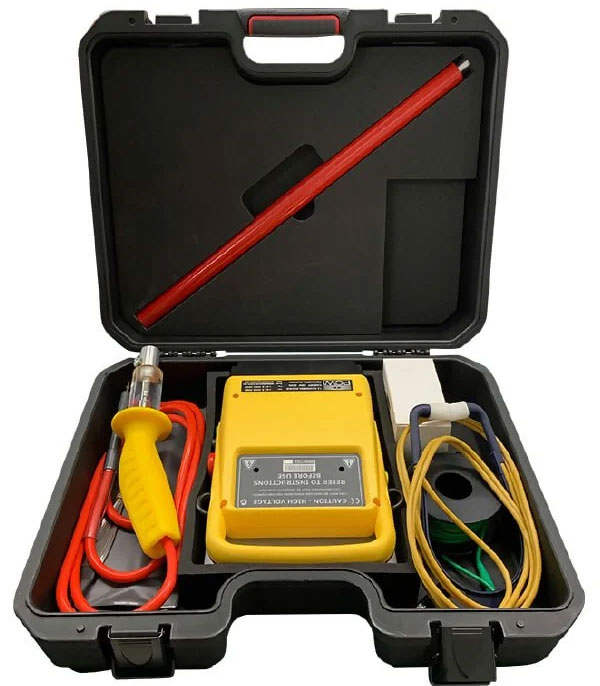

The DC Holiday Detector is delivered as a complete kit, 2 versions are available
Industrial Kit:
Detector with clip-on power pack, 10hr Charger, Probe handle with neon and 2m lead, 60mm Connector for flat brushes, 7m Earth lead with clamp, Fan Brush, 250mm Flat brass wire brush, 450mm Probe extension, Air-operated earphones, Shoulder & Waist Harness, Kit Case, Operating instructions with Calibration Certificate.
Pipeline Kit:
Detector with clip-on power pack, Spare clip-on battery pack, 10hr Charger, Probe handle with neon and 2m lead, 60mm Connector for flat brushes, 7m Earth lead with clamp, Fan brush, Coil joiner with 450mm connector, Air-operated earphones, Shoulder & Waist Harness, Kit Case, Operating instructions with Calibration certificate.
Industrial Kit:
Detector with clip-on power pack, 10hr Charger, Probe handle with neon and 2m lead, 60mm Connector for flat brushes, 7m Earth lead with clamp, Fan Brush, 250mm Flat brass wire brush, 450mm Probe extension, Air-operated earphones, Shoulder & Waist Harness, Kit Case, Operating instructions with Calibration Certificate.
Pipeline Kit:
Detector with clip-on power pack, Spare clip-on battery pack, 10hr Charger, Probe handle with neon and 2m lead, 60mm Connector for flat brushes, 7m Earth lead with clamp, Fan brush, Coil joiner with 450mm connector, Air-operated earphones, Shoulder & Waist Harness, Kit Case, Operating instructions with Calibration certificate.
| Item | Description | Price | ||
|---|---|---|---|---|
DC15 Holiday Detector Industrial Kit Range: 0 to 15,000 V | $2,725.00 | |||
DC15 Holiday Detector Pipeline Kit Range: 0 to 15,000 V | $2,725.00 | |||
DC30 Holiday Detector Industrial Kit Range: 0 to 30,000 V | $3,061.00 | |||
DC30 Holiday Detector Pipeline Kit Range: 0 to 30,000 V | $3,061.00 | |||
| Accessories | ||||
0867 | Battery Charger for PCWI Holiday Detectors | $70.00 | ||
0647 | Fuse holder, including fuse | $45.00 | ||
0222 | Coil joiner only for pipeline coils | $90.00 | ||
0214 | Neon light holder with neon globe | $75.00 | ||
0215 | Neon globe only | $30.00 | ||
1116 | NiMH battery, charger clip and universal charger for DC30 | $163.00 | ||
0841 | Probe handle complete for DC Holiday Detector | $210.00 | ||
