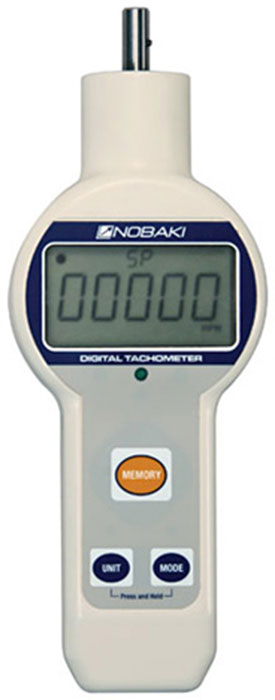

The EHT-600 tachometer features exceptional resolution at low speeds and statistics. It also features four measuring modes: Real time displays the current value, Maximum displays the highest value, Minimum displays the lowest value and Mean displays the average value taken during the test. It's built with a durable metal housing and operates on two standard AA batteries.
- Four measuring modes: Real time, maximum, minimum and mean
- Rugged metal housing
- Auto measuring range of 0 to 25,000 rpm with up to 0.01 rpm resolution up to 2,000 fpm using the optional 12" wheel
- 15 different measuring units: RPM, rev/sec, FPM, in/min, yd/min, in/sec, m/min, cm/min, cm/sec, revolutions, ft, in, yd, m, cm
- Last reading recall and 99 data memory
- Auto statistics: Max, Min and Mean
- Easy-to-read 5 digit 0.47" (12 mm) high LCD

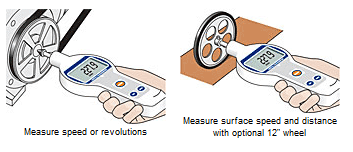

- Optional 12" wheel available for measuring surface speed and distance
| Measuring Range | 0.40 - 25000 RPM (floating decimal point) 0.40 - 2000.0 ft/min (with optional 12" wheel) |
| Accuracy | 0.01% of reading ± 1 digit |
| Display | 5 digit LCD 12mm Character Height |
| Measuring Unit* | Speed Mode: RPM, rev/sec, FPM, in/min, yd/min, in/sec, m/min, cm/min, cm/sec Counter Mode: revolutions, ft, in, yd, m, cm |
| Memory | Short Term Auto Memory: MAX, MIN, MEAN and last 9 data Long Term On-Demand memory: 99 data |
| Display Update | 0.5 sec or 1.0 sec selectable |
| Power | 2 - AA Battery, Aprox. 60 hrs continuous operation |
| Indicators | LOW BATT, Units, MAX, MIN, MEAN and memory location |
| Operating Temp. | 0 - 45°C (32 - 113°F) |
| Construction | Die-cast aluminum housing |
| Standard Accessories | Cone adapter, funnel adapter, 2-AA Batteries, NIST traceable Certificate |
| Optional Accessories | 12" wheel (surface speed measuring wheel is necessary to measure linear speed), 3-1/2" Extension Shaft. |
The EHT-600 is supplied as a complete kit including the tachometer, Cone adapter, funnel adapter, 2-AA Batteries, NIST traceable Certificate in a fitted carrying case.
| Item | Description | Price | ||
|---|---|---|---|---|
Digital Tachometer kit includes cone and funnel adapters, carrying case and two AA batteries | $236.50 | |||
Digital Tachometer kit includes cone and funnel adapters, carrying case and 4-AA rechargeable batteries & charger | $264.00 | |||
Digital Tachometer kit includes cone and funnel adapters, carrying case and two AA batteries & 12" surface speed wheel | $275.00 | |||
Digital Tachometer kit includes cone and funnel adapters, carrying case and 12" surface speed wheel, 4-AA rechargeable batteries & charger | $302.50 | |||
| Accessories | ||||
6 Inch Circumference Tachometer wheel, 7mm shaft (FPM-6) | $30.00 | |||
12 Inch Circumference Tachometer wheel, 7mm shaft (FPM-12) | $50.00 | |||
Shaft Extension for Tachometers, 3 inch - EXT-SHAFT | $15.00 | |||
ISO-17025 | ISO-17025 Accredited Calibration with Certificate | $220.00 | ||
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
