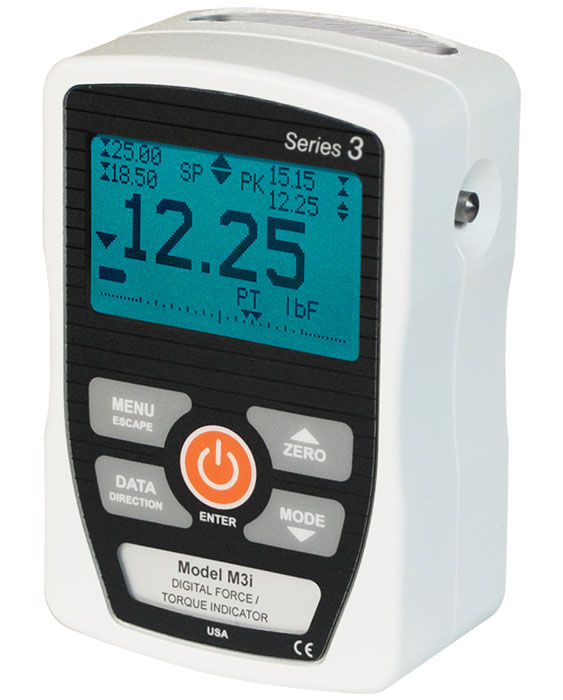

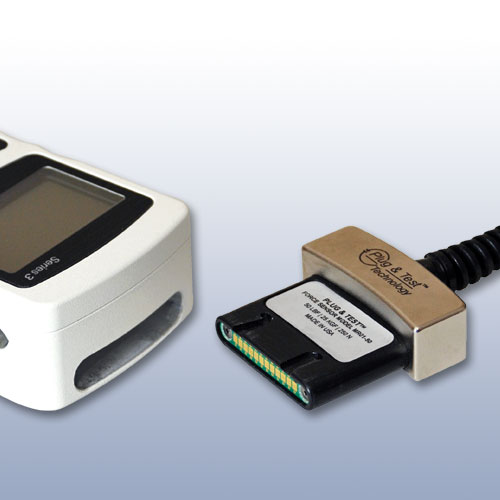

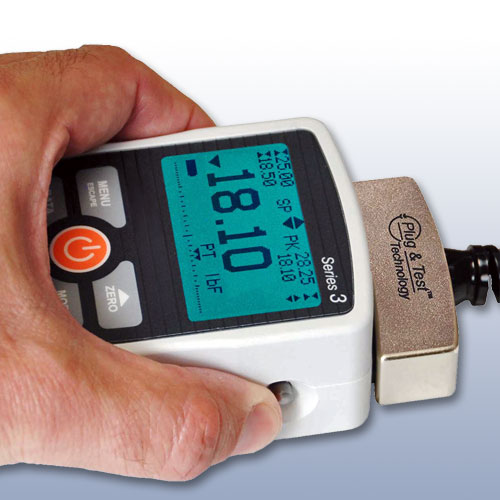

The 3i digital force / torque indicator is designed to work with a wide range of Mark-10 remote force and torque sensors. With exclusive Plug & Test™ technology, all calibration and configuration data is saved within the sensor’s smart connector, not the indicator, allowing for true interchangeability. In addition, all sensors are fully compatible with the advanced 5i force / torque indicator.

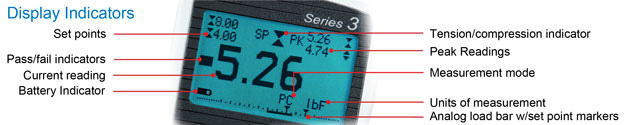

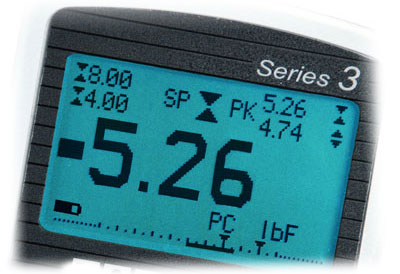

The 3i shares its menu structure and most specifications with Series 3 digital force gauges. The sampling rate is 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges’ features and configurable parameters. The display also features an analog load bar for graphical representation of applied load, as well as set point indicators for pass-fail testing. USB output is provided for data collection purposes.
The gauges include MESURTM Lite data acquisition software. MESURTM Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.- Includes NIST Traceable Calibration Certificate
- Interchangeable force and torque sensors through Plug & Test™technology
- Peak readings and set points always displayed
- External trigger mode - for switch contact testing or remotely stopping display update
- USB data output
- Configurable audio alarms and key tones
- Configurable audio alarms and key tones
- MESURTM Lite data collection software included
- High-speed 2,000 Hz sampling rate
- Ultra-compact size
- Programmable set points with pass/fail audible and visual indicators
- Live load bar graph with set point markers
- Programmable auto-shutoff
- Battery or AC operation
- CE mark
- Made in the USA
- 3-Year Warranty
| Model | Description |
|---|---|
R01
|
Rugged "S-beam" force sensor |
R02
|
Compression Force Sensor |
R03
|
Tension and Compression Force Sensor |
R04
|
Miniature S-Beam Force Sensor |
R05
|
Measures push and pull force |
R50
|
Universal Torque Sensor |
R51
|
General torque testing |
R52
|
Torque tool testing |
R53
|
Closure, bottle cap testing |
R55
|
Square Drive Torque Sensor |
The 3i indicator includes a carrying case, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESUR Lite software, MESURgauge DEMO software, and user's guide), and NIST-traceable certificate of calibration.
| Accuracy | ±0.2% of full scale + sensor |
| Sampling rate | 2,000 Hz |
| Power | AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low. |
| Battery Life | Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use |
| USB Output | By pressing DATA key only. Configurable up to 115,200 baud. |
| Configurable Settings | Digital filters, USB output settings, backlight, automatic shutoff, key tones, audio alarms, default settings, calibration |
| Safe overload | 150% of full scale (display shows "OVER" at 110% and above) |
| Weight | Weight: 0.7 lbs (0.3 kg) |
| Included items | Carrying case, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESURTM Lite software, MESURTMgauge DEMO software, and user's guide), NIST-traceable certificate of calibration. |
| Warranty | 3 years (see individual statement for further details) |
| Item | Description | Price | ||
|---|---|---|---|---|
Digital Force and torque indicator with 2,000 Hz sampling rate | $641.25 | |||
| Accessories | ||||

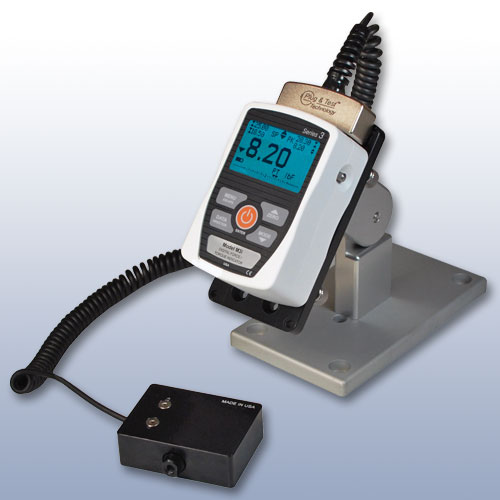

STAND, TABLE TOP, INDICATOR/TORQUE GAUGE | $175.00 | |||
MESUR gauge Load & Travel Analysis Software - NO LONGER AVAILABE, Order Mesurgage Plus - Please contact us for pricing and availability. | $ | |||
AC1118 | Spare rechargeable battery for M-10 Gauges, old PN 08-1026 | $20.00 | ||
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
