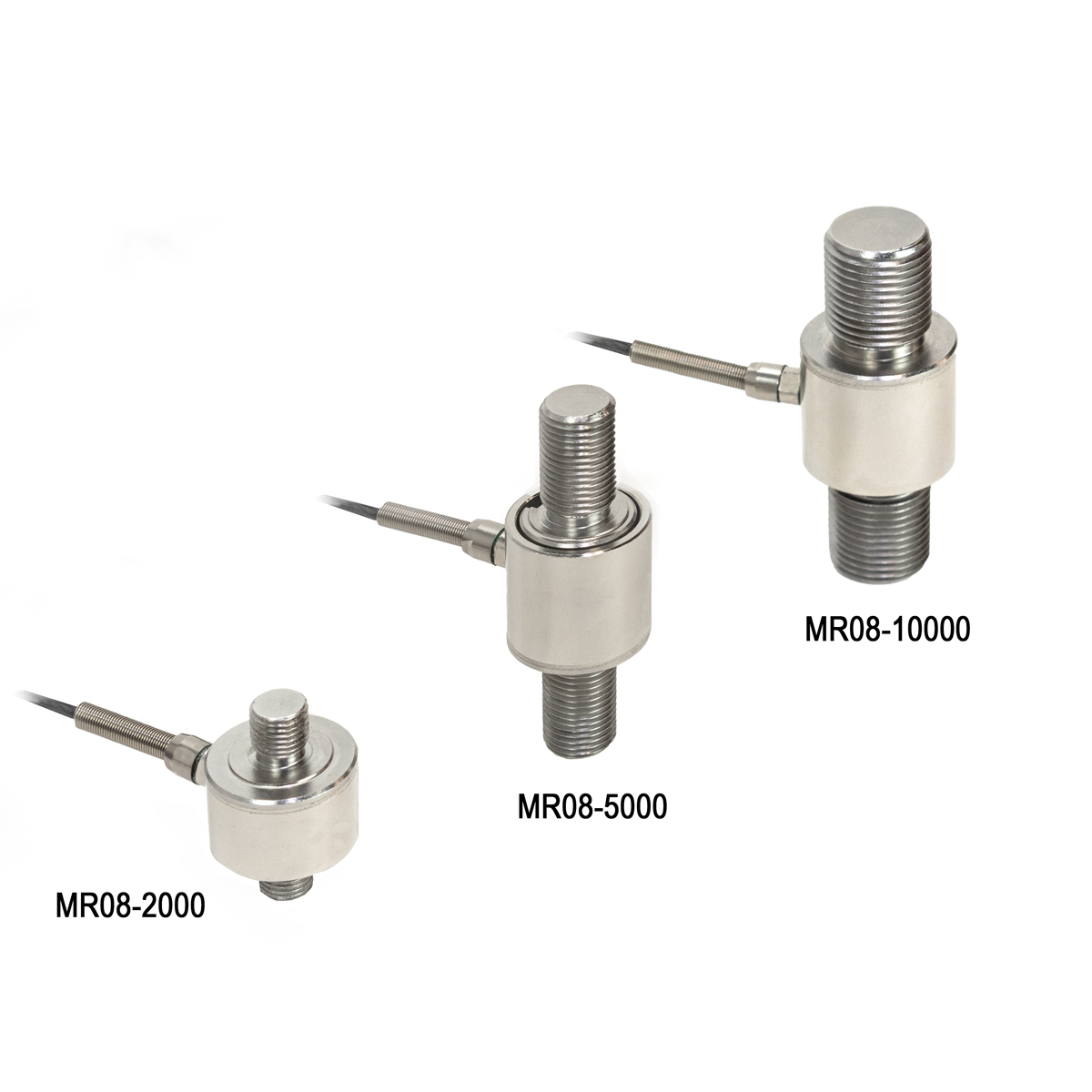

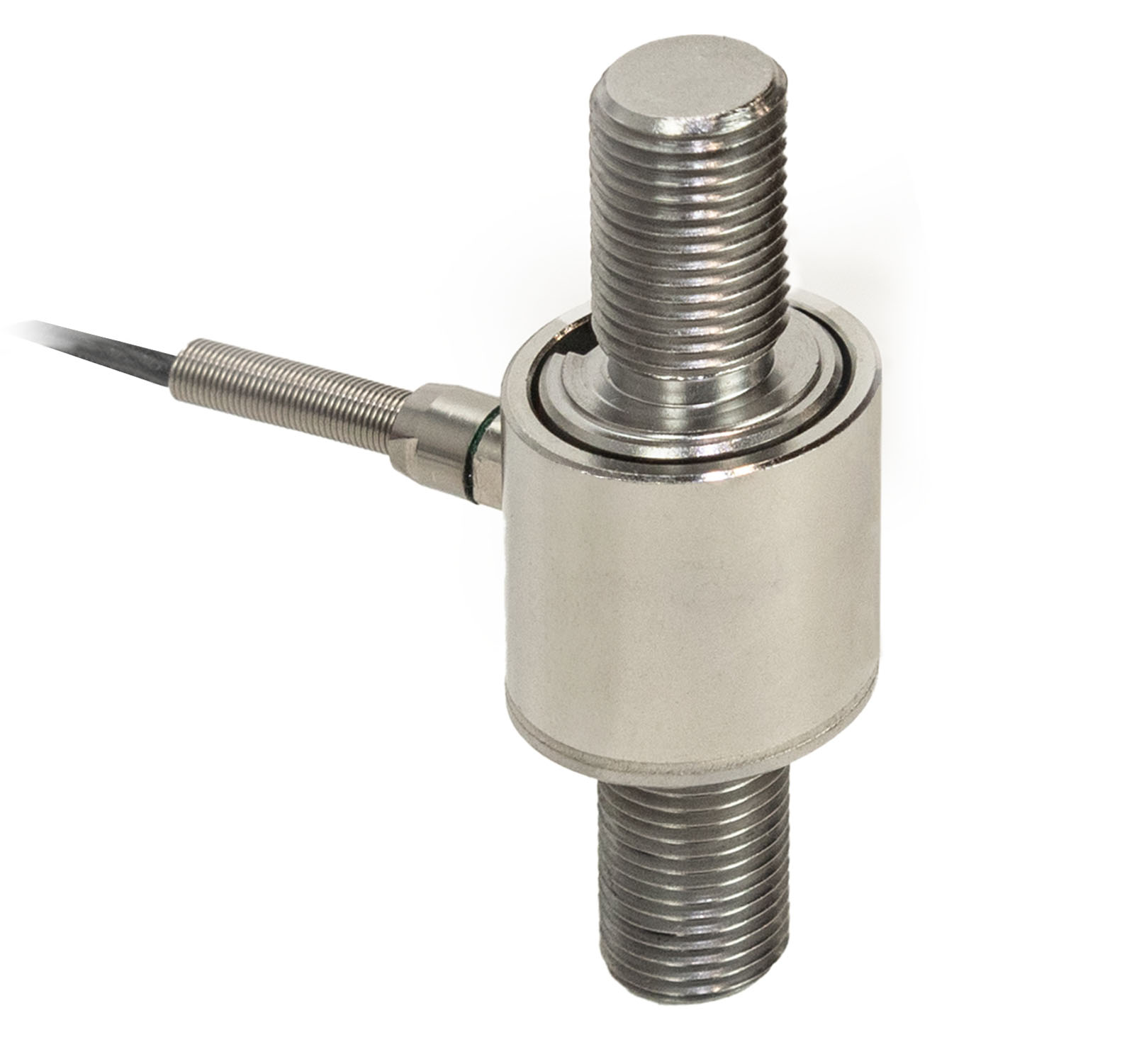

The Series R08 is a threaded niversal sensor for tension and compression applications up to 10,000 lbF (50 kN). Threaded rods on each end allow for a variety of mounting configurations..
Compatible with Mark-10 indicators (sold separately), through unique Plug & Test® technology. A combined certificate for the sensor and an indicator is available at time of order, part no. CERT-SI.
- Threaded rods on both ends
- 17-4PH stainless steel / IP64 design withstands harsh environments
- NIST-traceable certificate of calibration with data is included.
- Warranty: 3 years
| Accuracy | ±0.5% of full scale + indicator |
| Weight | MR08-2000: 0.3 lb [0.1 kg] MR08-5000: 0.4 lb [0.1 kg] MR08-10000:0.6 lb [0.2 kg] |
| Item | Description | Price | ||
|---|---|---|---|---|
Force sensor, 2000 lbF / 32000 ozF / 1000 kgF / 10000 N / 10 kN | $760.00 | |||
Force sensor, 5000 lbF / 2500 kgF / 25000 N / 25 kN | $760.00 | |||
Force sensor, 10000 lbF / 5000 kgF / 50000 N / 50 kN | $760.00 |
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
