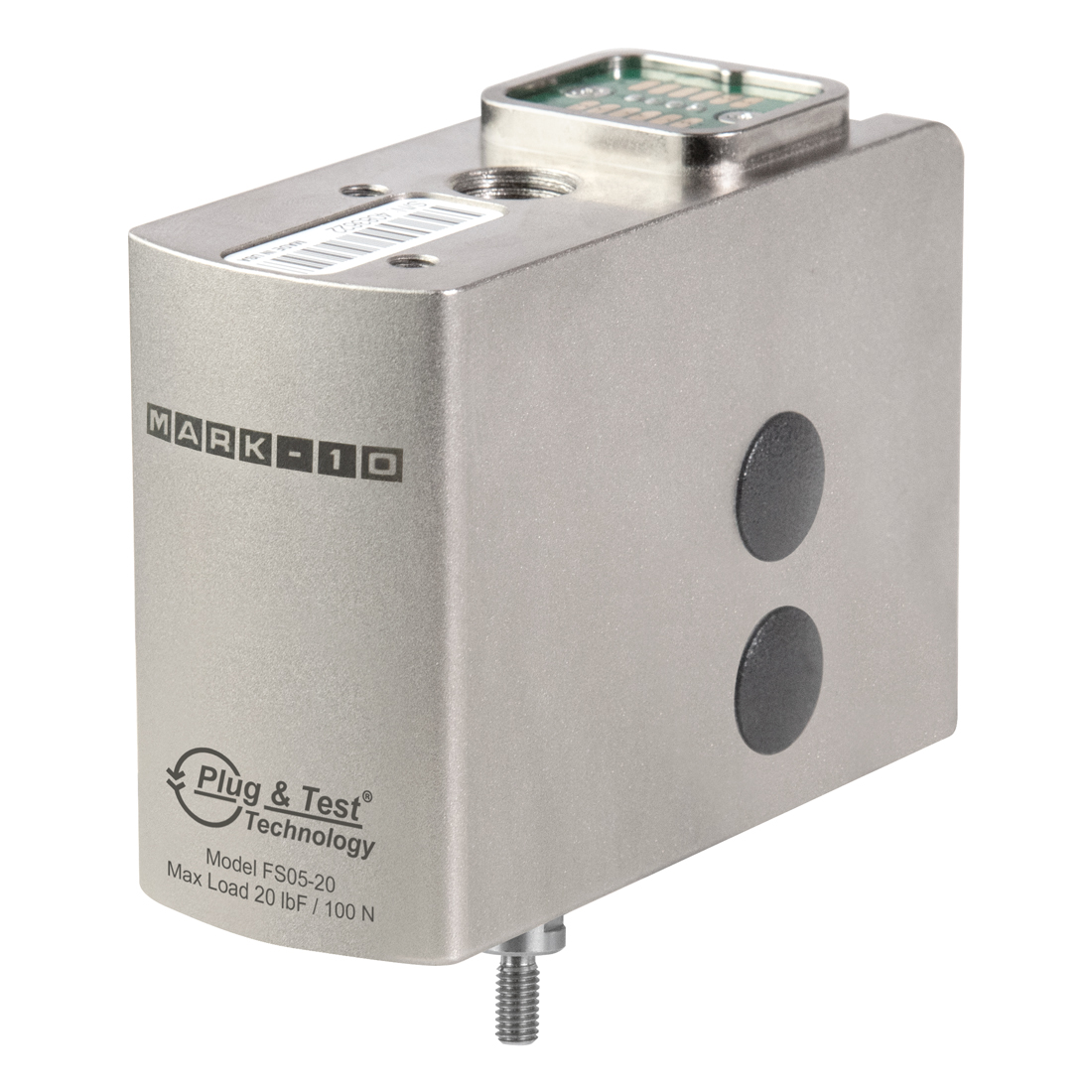

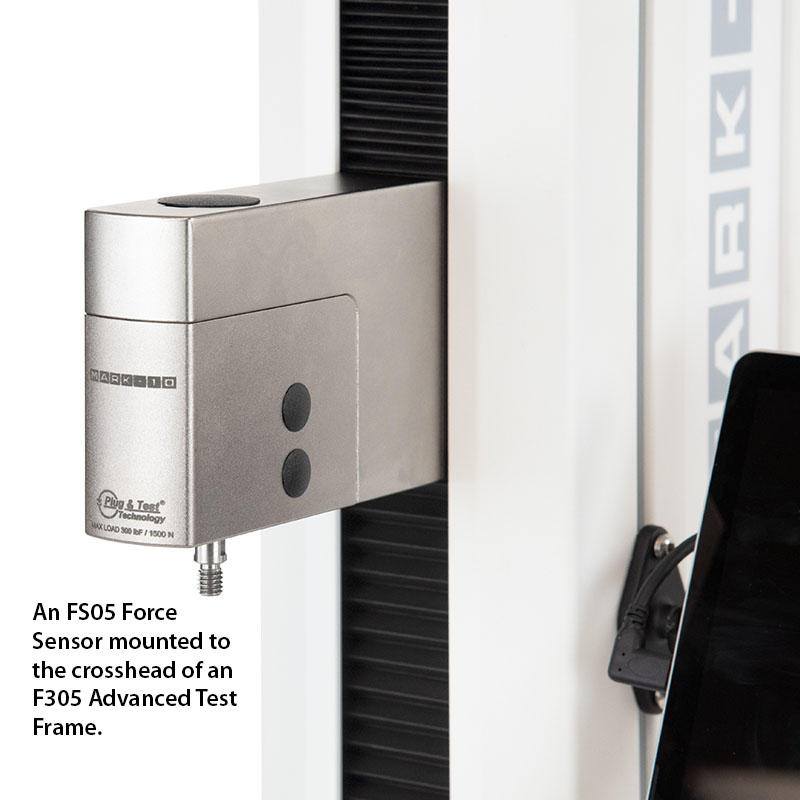

Series FS05 force sensors measure tension and compression forces. They mount directly to the crosshead of models F105, F305, F505, and F505H test frames, for a clean, integrated look.
With Plug & Test® technology, all configuration and calibration data is saved within the sensor, allowing it to be calibrated on the test frame or off-site with a Mark-10 indicator (optional adapter: AC1083 required ). Ranges available from 0.12 to 500 lbF [0.5 N to 2.5 kN].

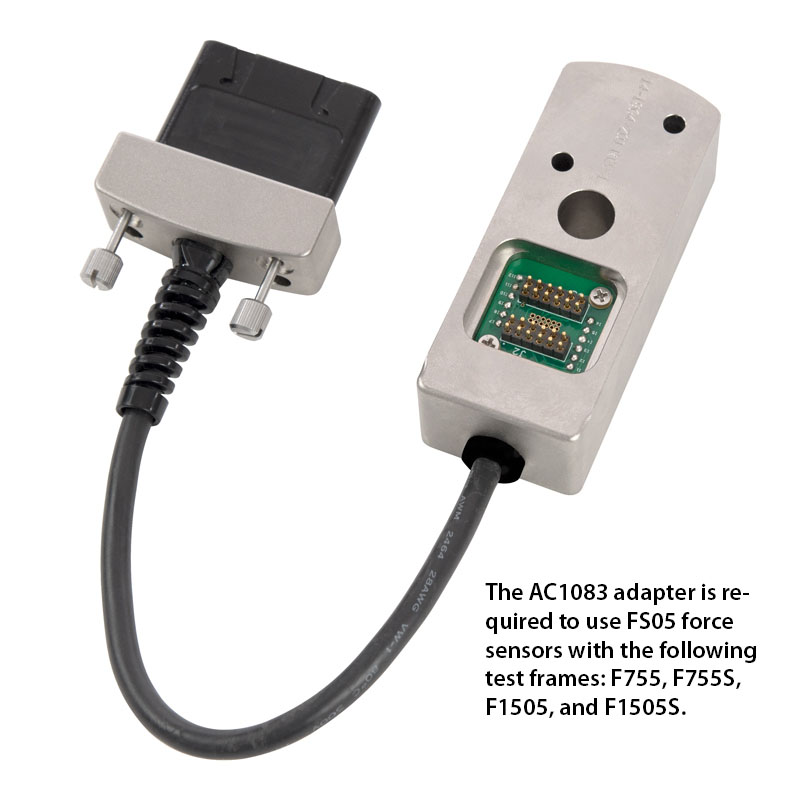

Note: An AC1083 adapter is required to use FS05 force sensors with the following test frames: F755, F755S, F1505, and F1505S.
- NIST-traceable certificate of calibration with data is included
- Mount directly to crosshead of models F105, F305, F505, and F505H without any connection cables
- Member of the Plug & Test® family of interchangeable sensors and indicators (adapter required)
- Measure tension and compression force
- Warranty: 3 years

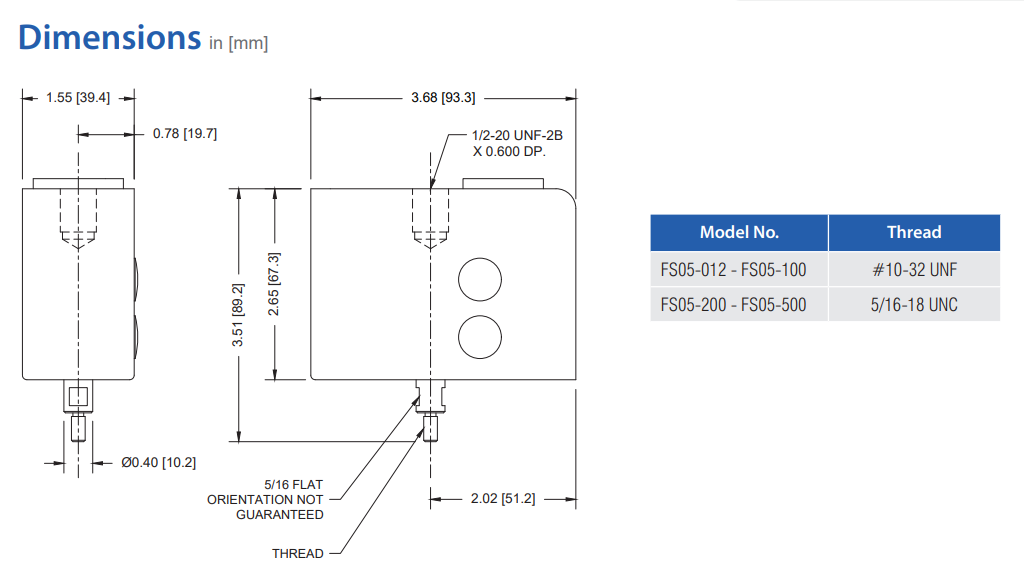

| Accuracy | ± 0.1% of full scale + indicator or test frame |
| Safe Overload | 150% of full scale |
| Weight | From 1.9 to 3 lb (0.9 to 1.4 kg) |
| Model | lbF | ozF | gF | N | Kg |
|---|---|---|---|---|---|
| FS05-012 | 0.12 x 0.00002 | 2 x 0.0005 | 50 x 0.01 | 0.5 x 0.0001 | - |
| FS05-025 | 0.25 x 0.0001 | 4 x 0.002 | 100 x 0.05 | 1 x 0.0005 | - |
| FS05-05 | 0.5 x 0.0002 | 8 x 0.005 | 250 x 0.1 | 2.5 x 0.001 | - |
| FS05-2 | 2 x 0.001 | 32 x 0.02 | 1000 x 0.5 | 10 x 0.005 | 1 x 0.0005 |
| FS05-5 | 5 x 0.002 | 80 x 0.05 | 2500 x 1 | 25 x 0.01 | 2.5 x 0.001 |
| FS05-10 | 10 x 0.005 | 160 x 0.1 | 5000 x 2 | 50 x 0.02 | 5 x 0.002 |
| FS05-20 | 20 x 0.01 | 320 x 0.2 | 10000 x 5 | 100 x 0.05 | 10 x 0.005 |
| FS05-50 | 50 x 0.02 | 800 x 0.5 | 25000 x 10 | 250 x 0.1 | 25 x 0.01 |
| FS05-100 | 100 x 0.05 | 1600 x 1 | 50000 x 20 | 500 x 0.2 | 50 x 0.02 |
| FS05-200 | 200 x 0.1 | 3200 x 2 | – | 1000 x 0.5 | 100 x 0.05 |
| FS05-300 | 300 x 0.1 | 4800 x 2 | – | 1500 x 0.5 | 150 x 0.05 |
| FS05-500 | 500 x 0.2 | 8000 x 5 | – | 2500 x 1 | 250 x 0.1 |
| Item | Description | Price | ||
|---|---|---|---|---|
Force sensor, 0.12 lbF / 2 ozF / 50 gF / 0.5 N / 500 mN | $1,895.25 | |||
Force sensor, 0.25 lbF / 4 ozF / 100 gF / 1 N / 1000 mN | $1,724.25 | |||
Force sensor, 0.5 lbF / 8 ozF / 250 gF / 2.5 N / 2500 mN | $1,377.50 | |||
Force sensor, 2 lbF / 32 ozF / 1 kgF / 1000 gF / 10 N | $1,220.75 | |||
Force sensor, 5 lbF / 80 ozF / 2.5 kgF / 2500 gF / 25 N | $1,220.75 | |||
Force sensor, 10 lbF / 160 ozF / 5 kgF / 5000 gF / 50 N | $1,220.75 | |||
Force sensor, 20 lbF / 320 ozF / 10 kgF / 10000 gF / 100 N | $1,220.75 | |||
Force sensor, 50 lbF / 800 ozF / 25 kgF / 25000 gF / 250 N | $1,220.75 | |||
Force sensor, 100 lbF / 1600 ozF / 50 kgF / 50000 gF / 500 N | $1,220.75 | |||
Force sensor, 200 lbF / 3200 ozF / 100 kgF / 1000 N / 1 kN | $1,377.50 | |||
Force sensor, 300 lbF / 4800 ozF / 150 kgF / 1500 N / 1.5 kN | $1,377.50 | |||
Force sensor, 500 lbF / 8000 ozF / 250 kgF / 2500 N / 2.5 kN | $1,377.50 | |||
| Accessories | ||||
AC1131-1 | Attachments kit, force gauges / Series FS05 sensors, 0.12 - 20 lbF models | $100.00 | ||
AC1131-2 | Attachments kit, force gauges / Series FS05 sensors, 50 - 100 lbF models (formerly 23-1031-2) | $100.00 | ||
AC1131-3 | Attachments kit, force gauges / Series FS05 sensors, 200 - 500 lbF models (formerly 23-1031-3) | $120.00 | ||
