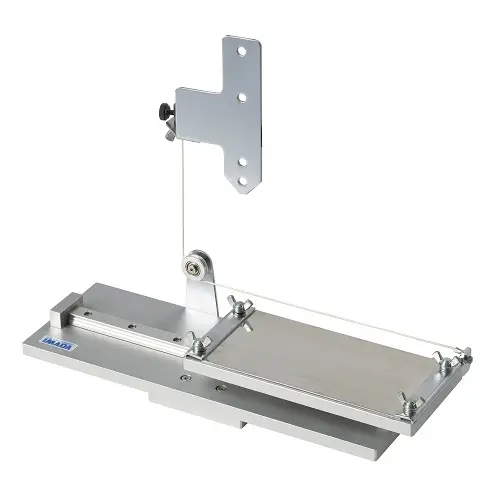

P90-200N 90° Peel Table

P90-200N
Click images to enlarge.
Ideal for 90 degree peel test or adhesion test of glue, sticker, tape and so on. Available in capacity up to 200N (440lbf, 20kgf).

Features

  • Ideal for adhesion test of tape, stickers, and so on.
  • It keeps peel angle at 90 degree.

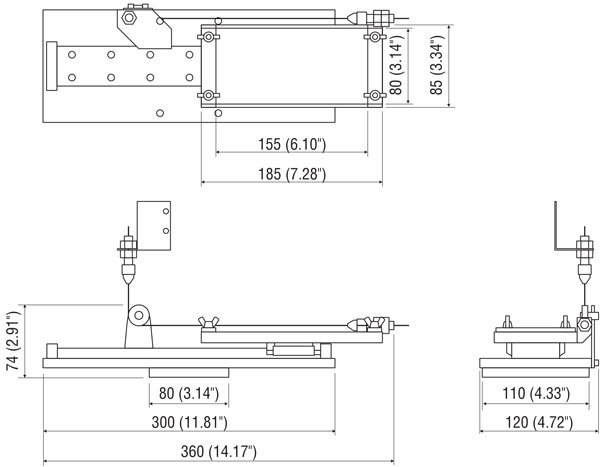

Dimensions


Specifications

Allowable length of samplesMax. 155mm
Allowable width of samplesMax. 80mm
Allowable loadUp to 200N (440 lbf, 20 kgf)
WeightApprox.3kg
Compatible Test StandsMX-500N, MX2-500N, MX-1000N, MX2-1000N
*An attachment to grip sample is sold separately.
*Please contact us if you would like to mount it on other test stands.

Buy Now

Item Description Price
P90-200N
Peel, 90 Degree Peel Slide Bearing Table
$2,871.00
View Cart
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
