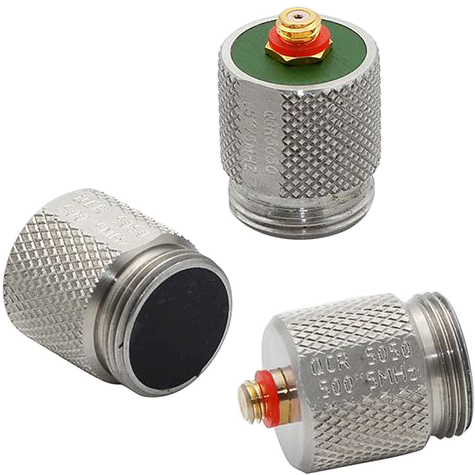

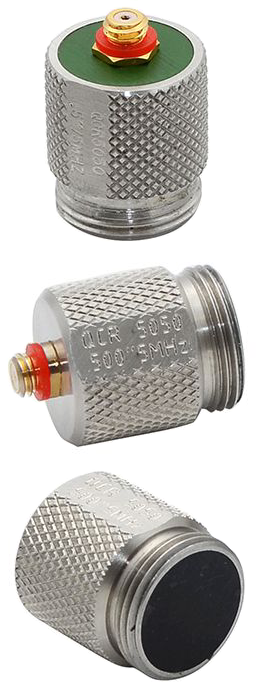

Shear Wave Quick Change Transducers are single element transducers with a threaded tip allowing angle beam wedges to be changed with minimum delay. Shear Wave Quick Change Transducers can be used when different frequencies are required using the same wedge, or where different angles are required using the same frequency transducer.
Shear Wave Quick Change Transducers can be fixed to wedges of different angles to produce shear wave measurements.
When used in conjunction with the ‘Trigonometry’ feature of the gauge, the transducer will produce instrumental flaw detection sound shear waves.
All Shear Wave Quick Change Transducers have Microdot connectors and are suitable to be measured via FX70 and FX80 series flaw detectors (previously known as DFX-7 and DFX-8 series).
| Part Number | Probe Diameter (in) | Probe Characteristic | Damping |
|---|---|---|---|
| 1.00MHz Shear Wave - Quick Change Transducers | |||
| PQCG251 | 1/4 | Composite | High Gain Damping |
| PQCG371 | 3/8 | Composite | High Gain Damping |
| PQCG501 | 1/2 | Composite | High Gain Damping |
| PQCR251 | 1/4 | Composite | Resolution |
| PQCR371 | 3/8 | Composite | Resolution |
| PQCR501 | 1/2 | Composite | Resolution |
| 2.25 MHz Shear Wave - Quick Change Transducers | |||
| QCG2525 | 1/4 | Standard | High Gain Damping |
| QCG3725 | 3/8 | Standard | High Gain Damping |
| QCG5025 | 1/2 | Standard | High Gain Damping |
| QCR2525 | 1/4 | Standard | Resolution |
| QCR3725 | 3/8 | Standard | Resolution |
| QCR5025 | 1/2 | Standard | Resolution |
| PQCG2525 | 1/4 | Composite | High Gain Damping |
| PQCG3725 | 3/8 | Composite | High Gain Damping |
| PQCG5025 | 1/2 | Composite | High Gain Damping |
| PQCR2525 | 1/4 | Composite | Resolution |
| PQCR3725 | 3/8 | Composite | Resolution |
| PQCR5025 | 1/2 | Composite | Resolution |
| 3.50 MHz Shear Wave - Quick Change Transducers | |||
| PQC5035 | 1/2 | Composite | Standard Undamped |
| 5.00 MHz Shear Wave - Quick Change Transducers | |||
| QCG2550 | 1/4 | Standard | High Gain Damping |
| QCG3750 | 3/8 | Standard | High Gain Damping |
| QCG5050 | 1/2 | Standard | High Gain Damping |
| QCR2550 | 1/4 | Standard | Resolution |
| QCR3750 | 3/8 | Standard | Resolution |
| QCR5050 | 1/2 | Standard | Resolution |
| PQCG2550 | 1/4 | Composite | High Gain Damping |
| PQCG3750 | 3/8 | Composite | High Gain Damping |
| PQCG5050 | 1/2 | Composite | High Gain Damping |
| PQCR2550 | 1/4 | Composite | Resolution |
| PQCR3750 | 3/8 | Composite | Resolution |
| PQCR5050 | 1/2 | Composite | Resolution |
| 10.00 MHz Shear Wave - Quick Change Transducers | |||
| QCG2510 | 1/4 | Standard | High Gain Damping |
| QCG3710 | 3/8 | Standard | High Gain Damping |
| QCG5010 | 1/2 | Standard | High Gain Damping |
| QCR2510 | 1/4 | Standard | Resolution |
| QCR3710 | 3/8 | Standard | Resolution |
| QCR5010 | 1/2 | Standard | Resolution |
| PQCG2510 | 1/4 | Composite | High Gain Damping |
| PQCR2510 | 1/4 | Composite | Resolution |
