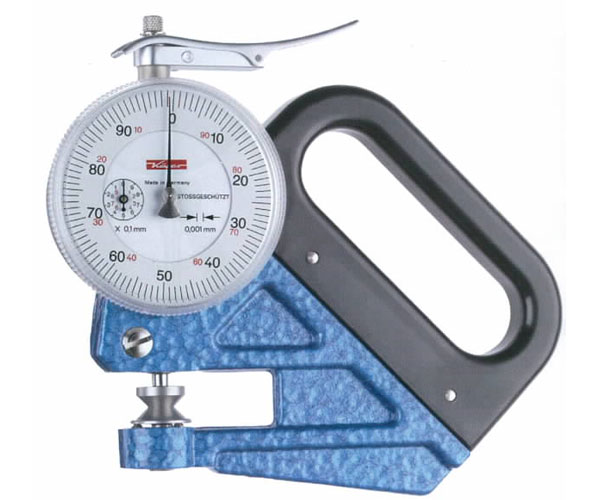

F-1101-30-01 Thin Foil Thickness Gauge

Click images to enlarge.
Measuring range: 0.1 mm
Resolution:: 0.001 mm
Accuracy:: ± 0.5 µm

This handy thickness gauge is used exclusively to measure the thickness of thin foils. The frame has the required rigidity, the insulation of the handle prevents transfer of heat from the hand of the user to the sensitive mechanical parts of the Dial Gauge.

The applied pressure is approximately 2 N.

Features

  • Special purpose model with resolution of 0.001 mm (1 µm)
  • Operating by lifting device - self closing - 2 N pressure
  • Insulated handle prevents transfer of heat from the hand of the user to the sensitive mechanical parts of the Dial Gauge
  • High accuracy of ± 0.5 µm

Feeler Shape

Feeler: F

For soft leather, cardboard, paper, foils, knitting needles etc.

Specifications

Resolution0.001 mm
Measuring range0.1 mm
Accuracy± 1.5 µm
Depth of jaw30 mm
Scale diameter58 mm
Measuring pressure2.0 N
Scale1 revolution = 0.1 mm
Feeler shapeF - 6.35 mm Ø flat
Measurment by spring loadOperating by lifting device - self closing
Warranty1 year

Buy Now

Item Description Price
F-1101-30-01 Thin Foil Thickness Gauge
$475.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
