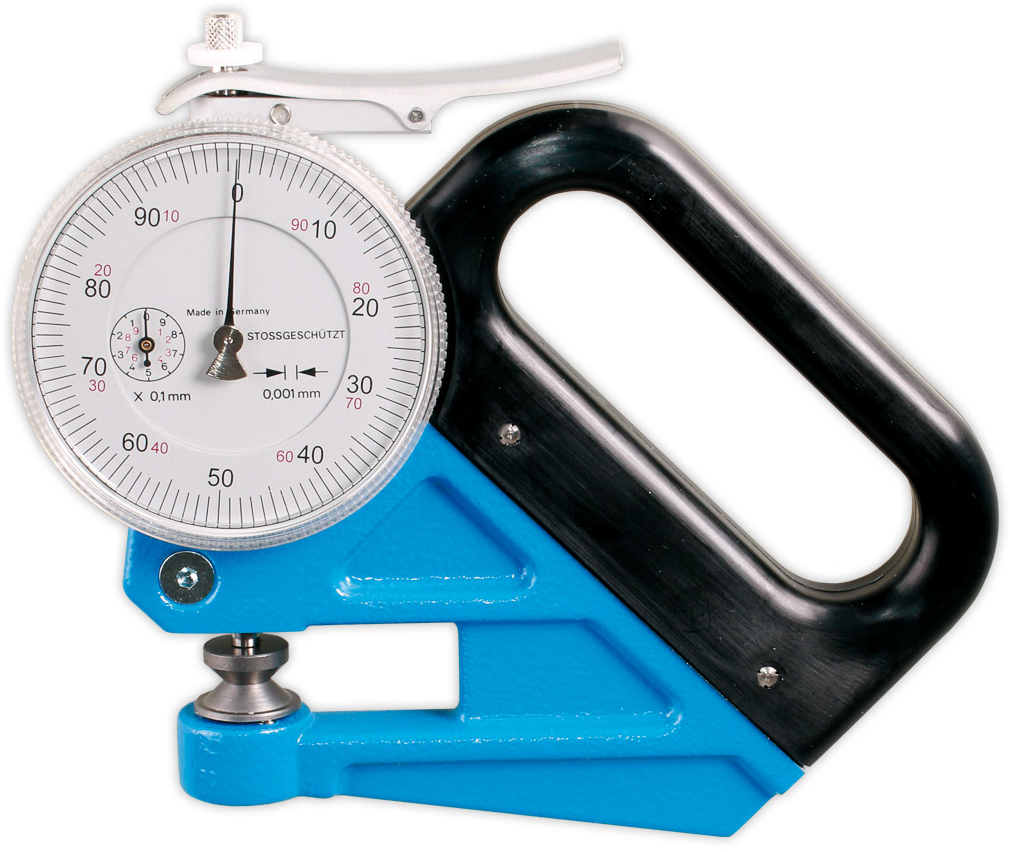

F-1101-30 Foil Thickness Gauge

Click images to enlarge.
This handy thickness gauge is used exclusively to measure the thickness of foils. The frame has the required rigidity, the insulation of the handle prevents transfer of heat from the hand of the user to the sensitive mechanical parts of the Dial Gauge.

One revolution of the pointer equals 0,1 mm. Because of the 100 divisions on the scale the measuring result can be more easily and more accurately read off then on the predecessor model F 1000/30.

The applied pressure is approximately 2 N.

Features

  • Special purpose model with resolution of 0.001 mm (1 µm)
  • Operating by lifting device - self closing
  • Insulated handle prevents transfer of heat from the hand of the user to the sensitive mechanical parts of the Dial Gauge

Feeler Shape

Feeler: F

For soft leather, cardboard, paper, foils, knitting needles etc.

Specifications

Resolution0.001 mm
Measuring range1 mm
Depth of jaw30 mm
Scale diameter58 mm
Measuring pressure2.0 N (On request: 0.7 N)
Scale1 revolution = 0.100 mm
Feeler shapeF - 6.35 mm Ø flat
Measurment by spring loadOperating by lifting device - self closing
Warranty1 year

Buy Now

Item Description Price
Foil Thickness Gauge, 30 mm Jaw Depth, 0-1.000 mm with Feeler 6.35 mm Dia. Flat
$495.00
Accessories
NISTCAL
NIST Traceable Calibration Certificate
$100.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
