ETX - ETPX Data Logging Limited Access Digital Tension Meter with Color LED Display & USB Output

Made in Germany

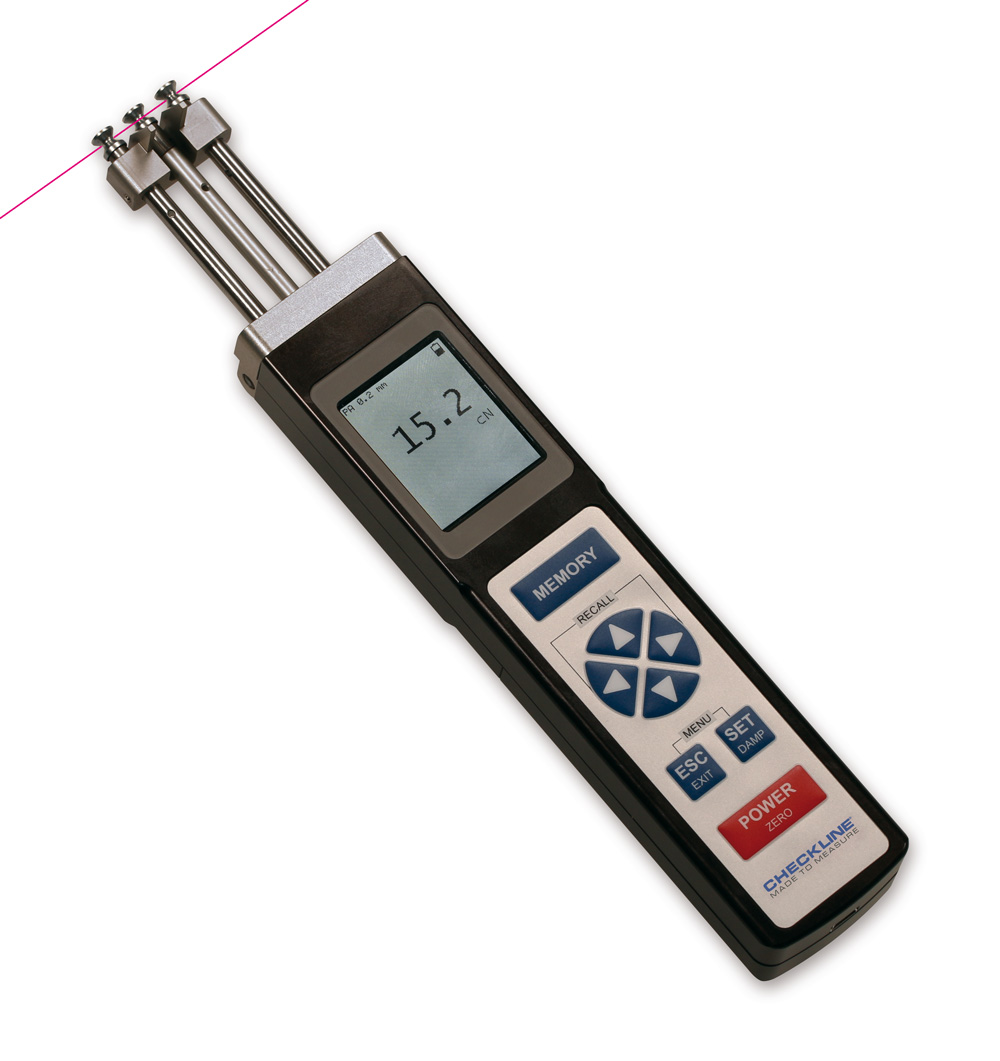

ETX Digital Tension Meter
Click images to enlarge.
5 Ranges
0.3 - 100.0 grams (or cN)
2.0 - 200.0 grams (or cN)
2.0 - 500.0 grams (or cN)
3 - 1000 grams (or cN)
3 - 2000 grams (or cN)
For fibers up to 500 tex and Cu wire Ø 0.17 mm

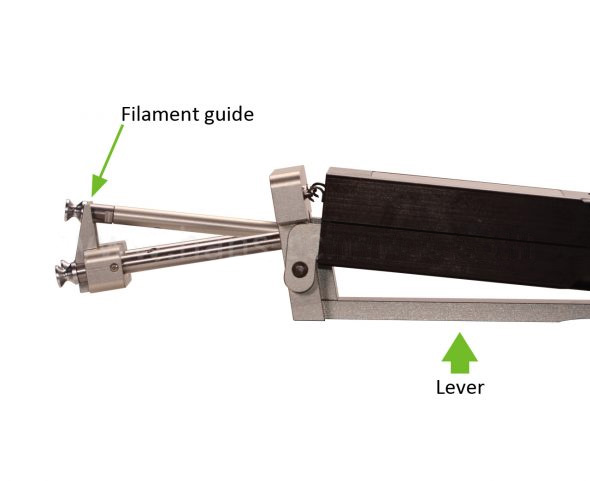

The Checkline ETX / ETPX datalogging tension meters are designed for accurate measurement of tension on fine wires, yarns and fibers in various applications. Rollers or Ceramic Pins are mounted at the end of long "fingers" permitting the user to measure tension with limited access space or when several lines are closely spaced such as on a warp sheet. Five (5) measuring ranges are available with a maximum capacity of 2000 grams or cN. The 1000 g and 2000 g capacity models have 7.4mm diameter V-Grooved Rollers mounted on shortened pins (fingers) instead of the standard length pins (fingers) and miniature 3.7 mm rollers.

New features include expanded memory for 60,000 data points in up to 999 batches, Hi-Speed Sampling of 200 Hz (1 kHz for Peak capture), Color, backlight TFT-display with 3 different displays modes: numeric, numeric with live bargraph, numeric with graph (time vs tension). The display auto rotates in 90° steps for optimal visibility regardless of the position of the tension meter.

ETX models feature miniature high speed ball-bearing-mounted rollers for material speeds up to 2000 m/min
ETPX models feature non-rotating ceramic pins for material speeds to 6000 m/min

Features

  • ETX models feature miniature high speed ball-bearing-mounted rollers for material speeds up to 2000 m/min
  • ETPX models feature non-rotating ceramic pins for material speeds to 6000 m/min
  • Memory for 60,000 data points with USB output with sample rates up to 200 Hz
  • Five (5) Memory Modes; Statistics Only, Continuous, Fast and On-Demand
  • Includes Tension Inspect Software at no additional charge; displays real-time readings on a PC or download stored data

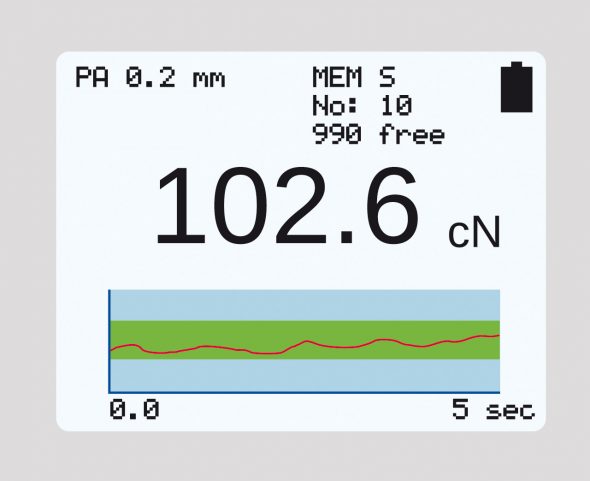

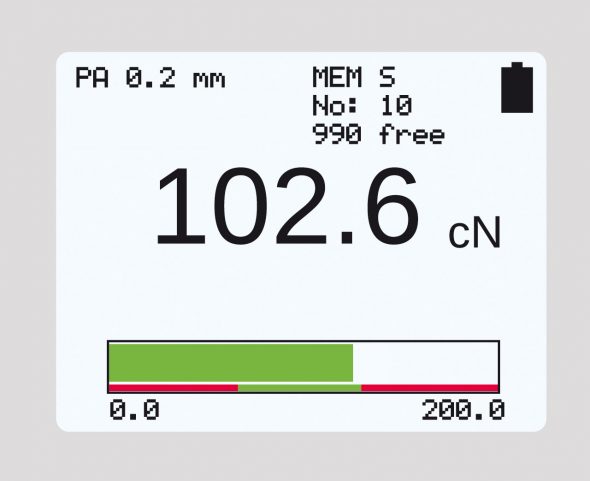

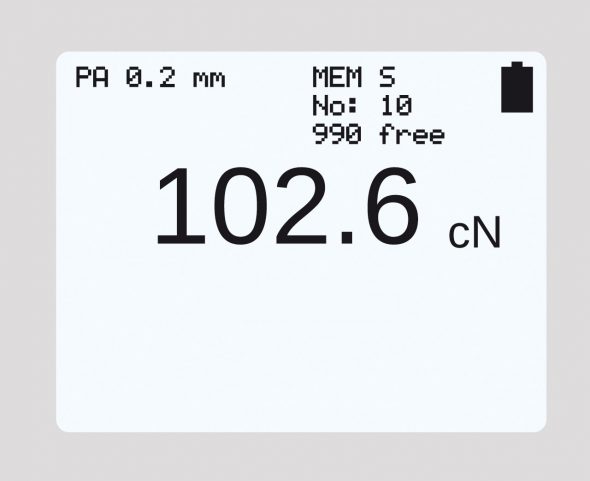

  • Large, backlight LCD-display with 3 different displays: numeric, numeric with live load bar, numeric with trend graph (time vs. tension)

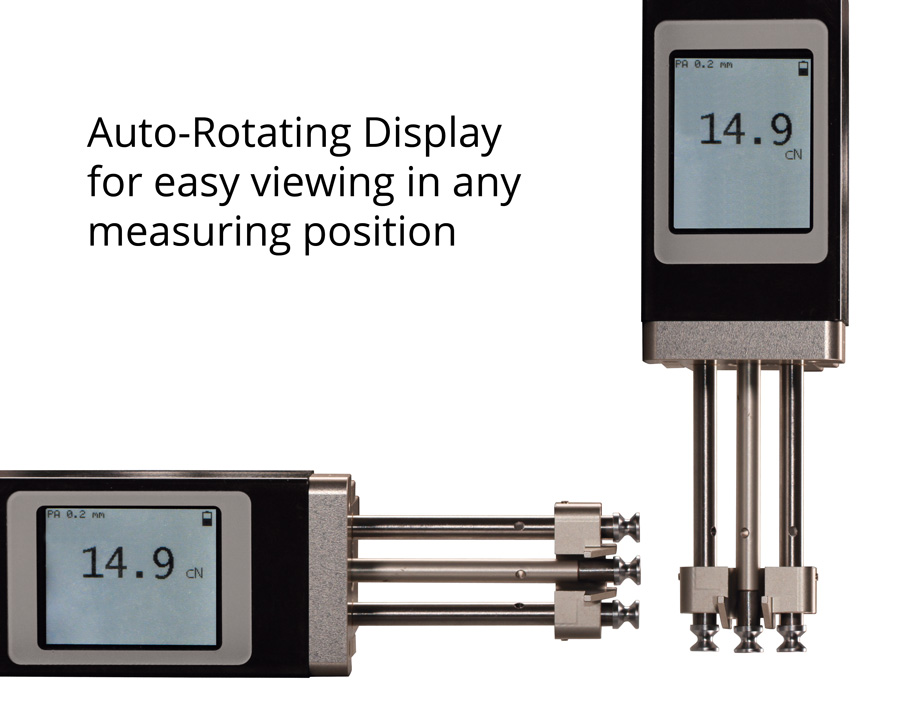

  • Display automatically rotates in 90° steps (or can be locked in any desired position)
  • Selectable units of measurement: Grams, cN, Kg, daN, Lbs and Newtons (N)
  • Automatic "Zero-Setting" in all measuring positions using built-in gravity sensor
  • 3 Material calibration memory locations for custom calibrations

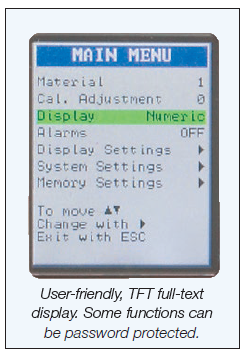

  • Easy-to-navigate menu system allows for quick adjustments of many parameters
  • User-set Min and Max alarms with indication on LCD if reading is out of limits
  • Adjustable electronic damping for better reading when tension fluctuates
  • NIST-Traceable Calibration Certification in optionally available
  • 1000g and 2000g models are fitted with 7.4mm diameter v-grooved rollers fabricated from hardcoat anodized aluminum
  • 1-year warranty against manufacturer's defects.

Ranges

ModelMeasuring
Range (g or cN)
Resolution
(g or cN)
Rollers or PinsMax Material
Speed
Measuring Head
Width
Calibration
Material
ETX-1000.3 - 100.00.13.7mm Rollers2000 meters/min24 mm0.20 mm PA
ETX-2002.0 - 200.00.13.7mm Rollers2000 meters/min24 mm0.20 mm PA
ETX-5002.0 - 500.00.13.7mm Rollers2000 meters/min24 mm0.20 mm PA
ETX-10003 - 100017.4mm Rollers2000 meters/min38 mm0.50 mm PA
ETX-20003 - 200017.4mm Rollers2000 meters/min38 mm0.50 mm PA
ETPX-1000.3-100.0 g or cN0.1Ceramic Pins6000 meters/min24 mm0.20 mm PA
ETPX-2002.0-200.0 g or cN0.1Ceramic Pins6000 meters/min24 mm0.20 mm PA
ETPX-5002.0-500.0 g or cN0.1Ceramic Pins6000 meters/min24 mm0.20 mm PA
Selectable Units: gram (g), centiNewtons (cN), Newtons (N), daN, kg, and Lbs

Outer Roller Spacing 24mm

Standard Calibration Material 0.20 mm Polyamide Monofilament

Roller Details

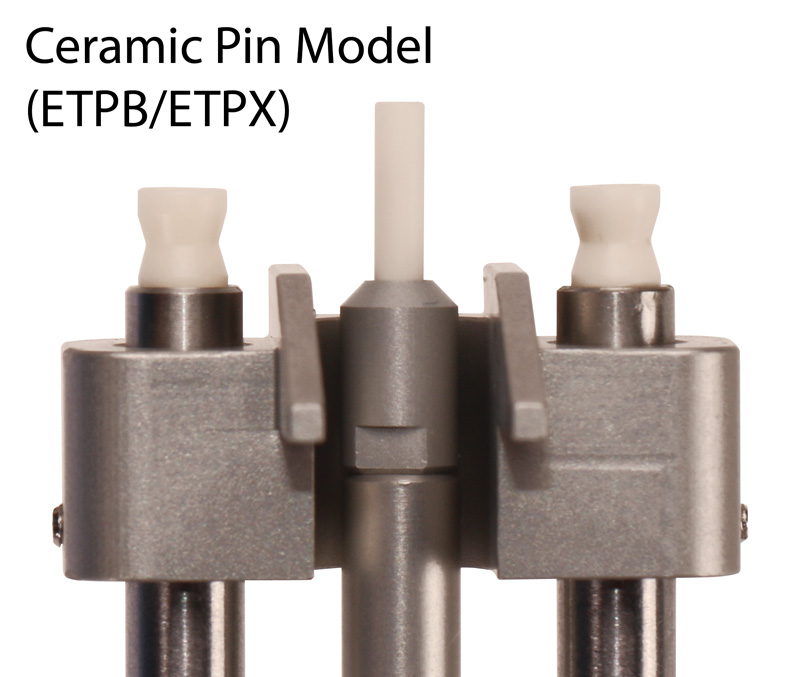

ETP / ETPX Rollers

ETX Roller Set (3) Part # R50017
ETPX Pin Set (3) Part # R50020

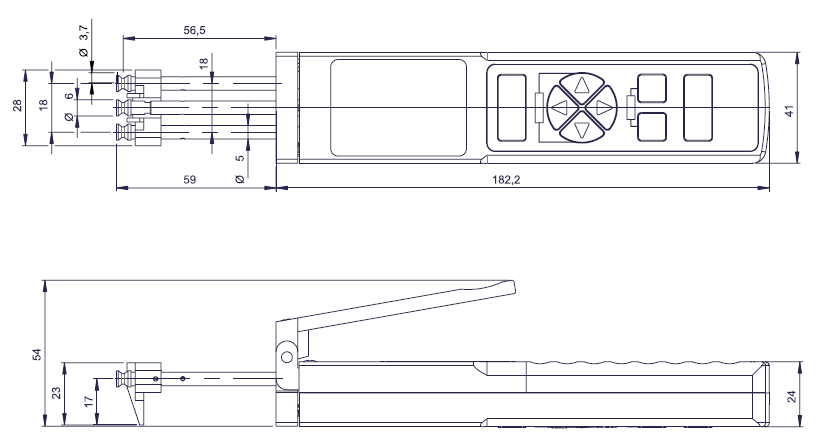

Dimensions

Complete Kit

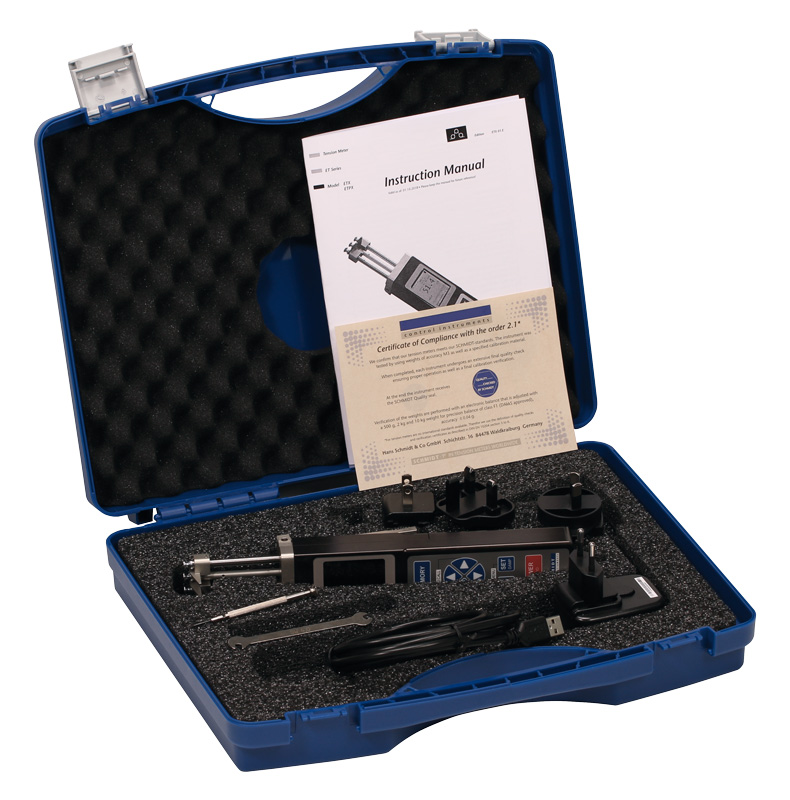

ETX Series gauges are delivered as a complete kit including tension meter, built-in rechargeable battery and USB/AC adapter with country adapters (EU, US, UK, AUS/NZ) , Tension Inspect Software, USB Output Cable and operating instructions all supplied in a foam-fitted carrying case.

NIST-Traceable Calibration Certification is OPTIONAL

Specifications

CalibrationAccording factory procedure
Accuracy±1% FS* ±1 Digit (typical ±0.5 % FS*)
Memory for material calibration1 for factory calibration plus 3 for customized calibrations
Measuring unitsGrams cN, N, and Lbs
Resolution0.1 grams or cN
OverrangeApprox. 10%, full scale, without accuracy guarantee
Overload protection200% Full Scale
Measuring principleStrain gauge bridge
Measuring roller deflection0.5 mm, maximum
Sampling rate200 Hz: AVG, MIN, MAX (1kHz for PEAK)
Display update rateApprox. 2 times per second
LCD DisplayColor-TFT 128 x 160
Display ModesNumeric, Numeric with Bargraph, X-Y Trendgraph (time vs. tension)
Standard MemoryMIN, MAX, PEAK, AVG and LAST
Data Memory60,000 values in up to 999 batches
Memory ModesFive (5) Memory Modes; Statistics Only, Continuous, Fast and On-Demand
DampingAdjustable electronic damping (averaging)
Cal. Adjustment±10 steps in 1% increments
Auto power offAfter approx. 3 minutes of non-use
Temperature coefficientGain: less than ± 0.01% FS* /°C
Temperature range50 – 113 °F (10 – 45 °C)
Air humidity85% RH, max.
Built-in BatteryLithium Polymer
Battery Life20 hours continuous use (approx.)
Recharging Time3-1/2 hours (approx.)
Battery Charger100-240V AC, swappable plug adapters
Plug AdaptersUSA, Euro and UK
Housing materialAluminium
Housing dimensions
(L x W x H)
13" x 1-3/4" x 1" (330 x 45 x 25mm)
Weight, net /grossApprox. 12 oz. (310 g) / 2.75 lbs (1220 g)
Charger Part#USB-MINI-CHARGER
