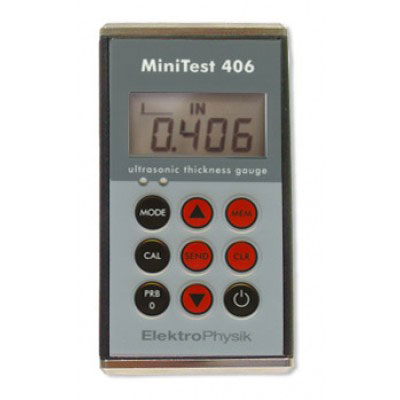

MiniTest 406 Ultrasonic Wall Thickness Gauge

Ultrasonic Wall Thickness Gauge
Click images to enlarge.
The MiniTest 406 is a simple to use hand-held Ultrasonic Thickness Gauge with the ability to measure through paint and coatings and eliminate the thickness of the paint or coating. The 406 uses a dual element style transducer. With the single press of a button, the 406 can be switched between pit or flaw mode ( pulse-echo), and through paint/coatings mode (echo-echo) for maximum inspection efficiency. The 406 is equipped with advanced features to make your job easer: Alarm mode, high speed scanning, and data send are the main features of the 406.

Features

  • Resolution of 0.0001 inch (0.001 mm)
  • Selectable units of inch or mm
  • Memory for 1000 data points in up to 10 batches
  • RS-232C Serial output for downloading stored data to a printer or computer
  • Windows compatible data transfer program supplied at no additional cost.
  • Large, backlit LCD display retains last reading
  • CE Certified
  • Includes NIST-Traceable Calibration Certificate
  • IP 65 Rated

Delay Line Tips for 406

P/N Description Standard / Optional Image
X-231-0000 1/4" x 3/8"
for all metals
(Short)
Standard
X-241-0000 1/4" x 1/2"
for all metals
(Long)
Standard
X-633-0000 1/4" x 3/8"
Graphite Tip
for thin plastics
(Graphite Short)
Standard on "-GT" models

Related Products

MiniTest 420 Ultrasonic Wall Thickness Gauge
Click image for more info
Ultrasonic Wall Thickness Gauge
MiniTest 430 Ultrasonic Wall Thickness Gauge
Click image for more info
Ultrasonic Wall Thickness Gauge

Specifications

Measuring Range:0.04'...19.99' depending on material
Resolution:0.001'
Range in Steel0.0060-1.0000" (0.15-25.40 mm)
Resolution.0001" (0.001 mm)
Display4½ - Digit, 0.5" Backlit LCD
Velocity Range0.0492 to .3937 in/μs. 1250 to 10,000 meters/sec
TransducerSingle element with delay tip. 10 to 22 MHz frequency range.
Probe WearfacePEEK (Polyethlethylketone)
Cable4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect LEMO connectors. Optional lengths up to 100 ft. (30 m)
Serial OutputRS-232C (8, N, 1, user-set baud rate)
Temp. LimitsAmbient: -20 to 120° F (-30 to 50° C)
Material: 0 to 200° F (-20 to 100° C)
Battery TypeTwo AA batteries
Battery Life150 hours
Weight7 ounces (300g)
Size2.5 x 4.5 x 1.25"
(64 x 114 x 32 mm)
Accessories IncludedProbe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
WarrantyGauge: 5 Years
Probes: 90 Days
Security Lock ModeHold down the DOWN ARROW Key as you power th gauge on. The "LOC" function with toggle on/off

Buy Now

Item Description Price
MiniTest 406 Ultrasonic Gauge, complete kit with with T-402-5507 probe - Please contact us for pricing and availability.
$
Accessories
1/4" diameter, 15 MHz delay line transducer with cable, 1/2" and 3/8" length delay line tips
$615.00
F-000-7102
1/4" x 3/8" Length Delay Line - OLD PN X-231-0000
$20.00
F-000-7103
1/4" Diameter x 1/2" Length Delay Line Tip - OLD PN X-241-0000
$20.00
X-633-0000
1/4" Diameter x 3/8" Length Graphite Tip Delay Line
$50.00
LEMO 00 - Microdot Single Probe Transducer Cable, 4 foot length
$80.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
