Special model where the rollers point away from the operator as the scale is viewed for applications where the access is limited to the front or top of the tape.
Cylindrical rollers are offered in 7, 10, 15, 20, 30, 36, 41 and 50 mm lengths. Roller length should not exceed 2x the width of the material being measured.
NOTE: Starting point of low-range instruments will be higher than DX2.
Cylindrical rollers are offered in 7, 10, 15, 20, 30, 36, 41 and 50 mm lengths. Roller length should not exceed 2x the width of the material being measured.
NOTE: Starting point of low-range instruments will be higher than DX2.
Note: This model does not include a filament guide and material thickness compensator
- NIST-Traceable Calibration Certification OPTIONAL
- Dual-flanged outer guide rollers with various widths for better filament guide (single-flanged rollers optional, recommendable if the material beeing measured is wider than the tape roller)
- Tape rollers with contact surface from 7 mm up to 50 mm are available

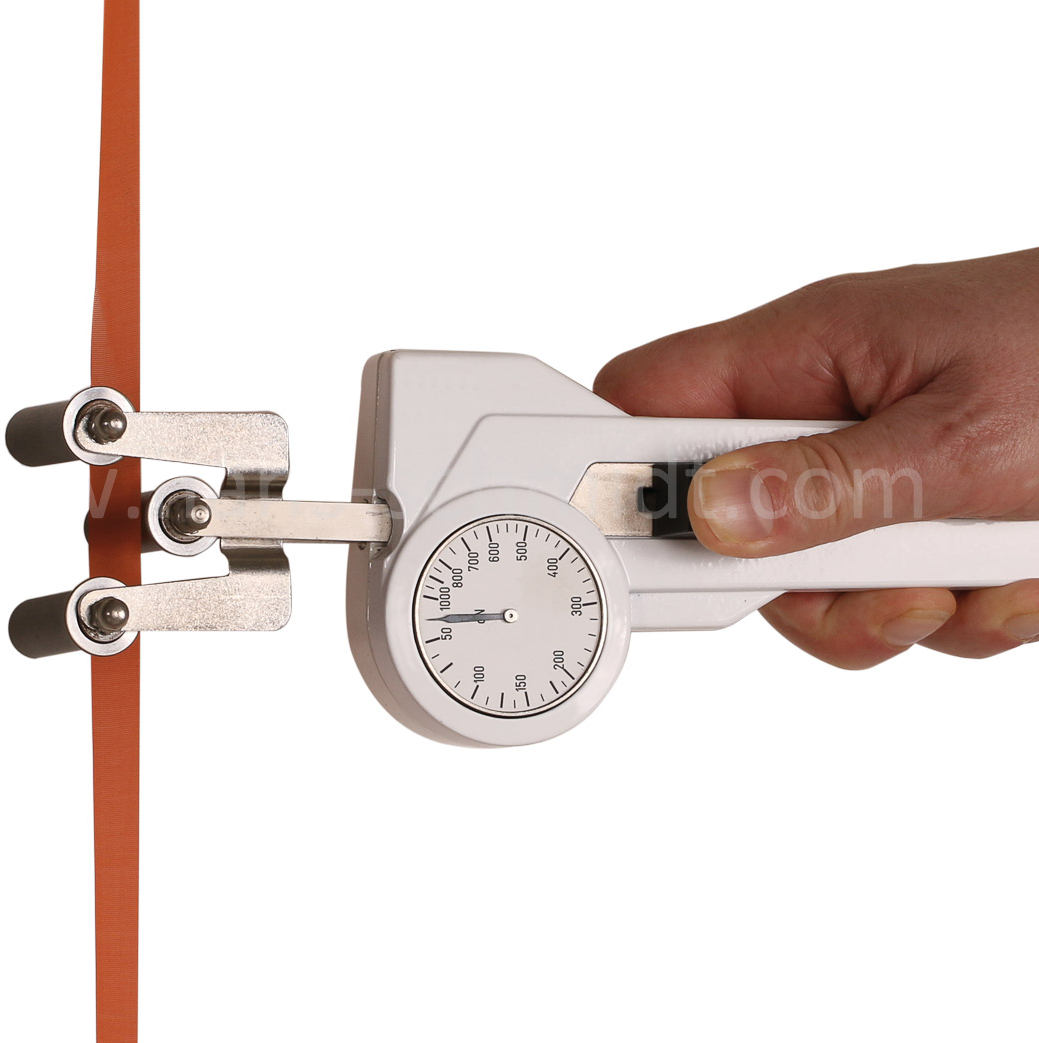

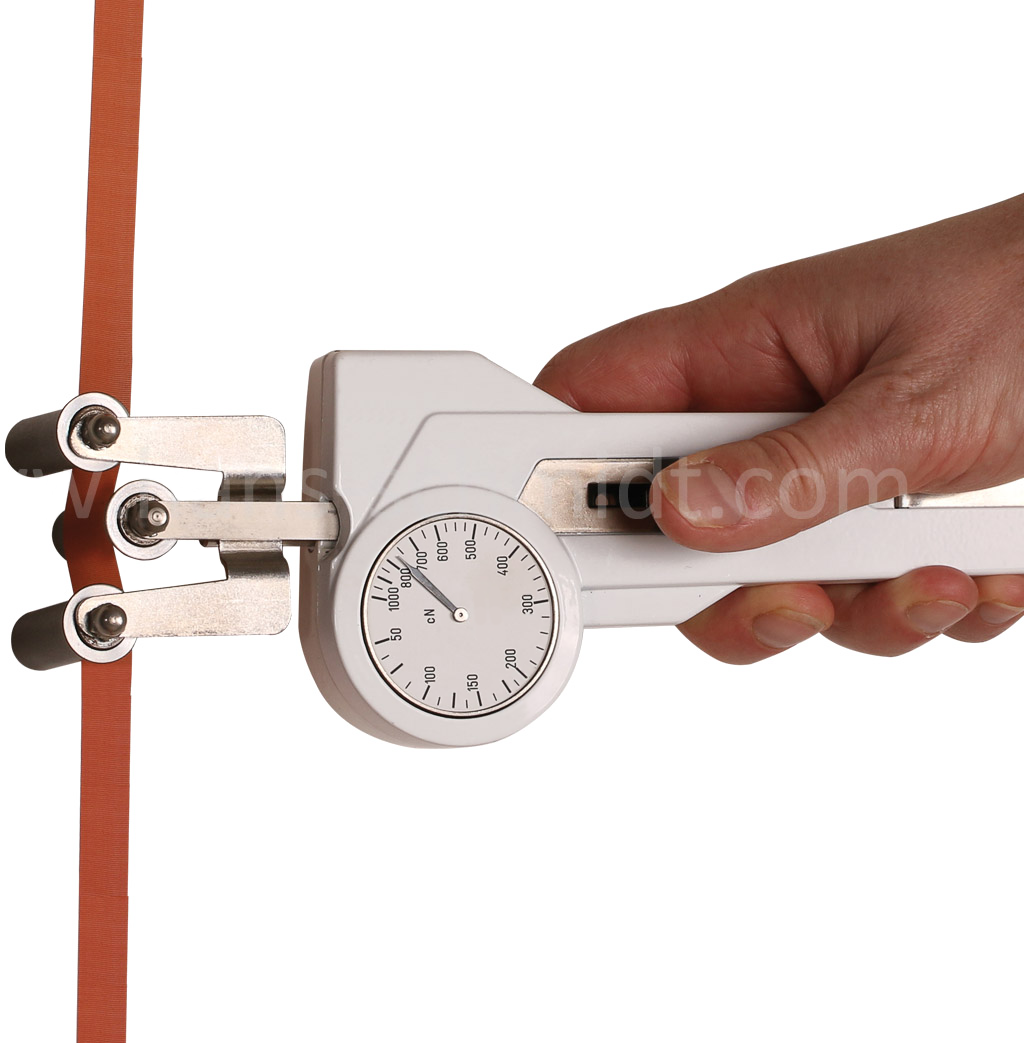

- Roller shifting mechanism ensure easy acquisition of the running material
-
Finger Support: We recommend
mounting a finger support for
higher tension ranges
- Built-in mounting holes permit fixed installation for online use
- Warranty: 1-Year
- Made in Germany
| Model | Range | Outer Roller Spacing | Roller Widths |
|---|---|---|---|
| TX2-5 | 10 - 50 g | 57 mm | 7 |
| TX2-12 | 20 - 120 g | 57 mm | 7,10,15,20,30 |
| TX2-20 | 20 - 200 g | 57 mm | 7,10,15,20,30 |
| TX2-40 | 20 - 400 g | 57 mm | 7,10,15,20,30 |
| TX2-EX | 100 - 1000 g | 57 mm | 7,10,15,20,30,36,41,50 |
| TX2-200 | 200 - 2000 g | 117 mm | 7,10,15,20,30,36,41,50 |
| TX2-500 | 400 - 5000 g | 117 mm | 7,10,15,20,30,36,41,50 |
| TX2-1K | 2.5 - 10 kg | 117 mm | 7,10,15,20,30 |
| TX2L-2K | 5 - 20 kg | 117 mm | 7,10,15,20 |
Calibration to customized material:
If process material differs significantly from the standard calibration material in diameter, rigidity or shape, special calibration using customer supplied samples is recommended. For this purpose a material sample of about 15 ft. should be supplied.
If process material differs significantly from the standard calibration material in diameter, rigidity or shape, special calibration using customer supplied samples is recommended. For this purpose a material sample of about 15 ft. should be supplied.
| Roller Widh |
Line Speed ...m/min |
Roller Material |
| 7 mm | 1000 | Nickel-plated steel |
| 10 mm | 1000 | Hardcoated aluminium |
| 15 mm | 1000 | Hardcoated aluminium |
| 20 mm | 1000 | Hardcoated aluminium |
| 30 mm | 1000 | Hardcoated aluminium |
| 36 mm | 1000 | Hardcoated aluminium |
| 41 mm | 1000 | Hardcoated aluminium |
| 50 mm | 1000 | Hardcoated aluminium |
Air Damping (A) An adjustable, precision air dashpot provides steady tension reading as tension fluctuate. |
 |
| Lever (L) A heavy duty, lever-operated mechanism moves the outer rollers for easy acquisition of the running filament. Recommended for models of 10 Kg or higher. |
 |
| Memory Pointer (M) Designed to retain the peak value as tensions fluctuate. Manually reset by using the knob located in the center of the dial. |
 |

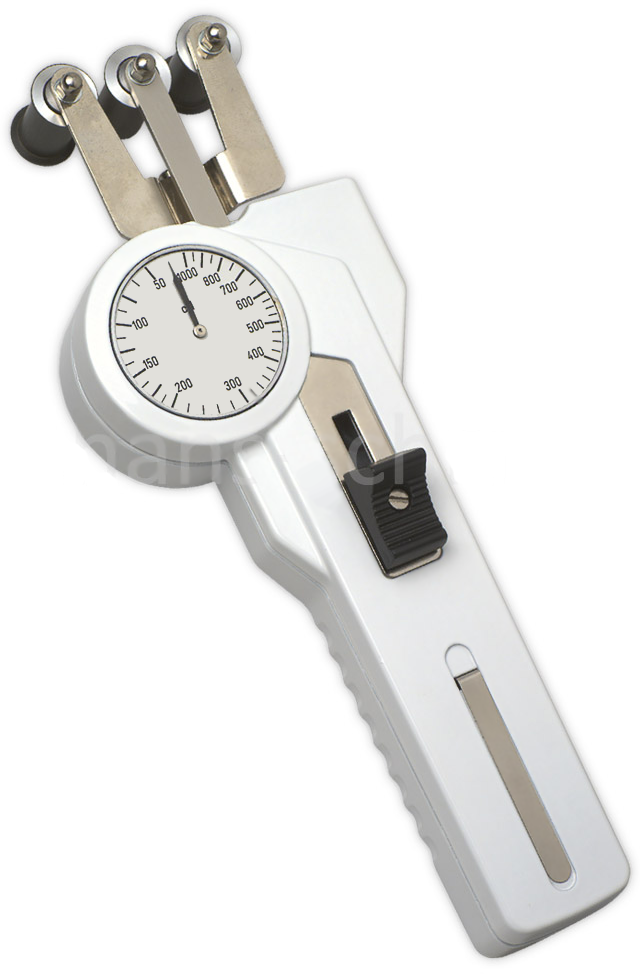

The TX2 Tension Meter is supplied as a complete kit including meter and instruction manual in a foam-fitted hard-plastic carrying case.
| Accuracy | ± 1% of full scale or ± 1 graduation mark on scale |
| Diameter of Scale | 41 mm |
| Maximum Speed | 1000 m/min |
| Roller Material | Hardcoated aluminium |
| Housing Material | Die-cast aluminum |
| Temperature range | 50 - 113°F (10 - 45°C) |
| Air humidity | 85 % RH, max. |
| Housing dimensions(L x W x H) | 7.5 x 3.3 x 1.8 in(188 x 85 x 45 mm) |
| Weight, net (gross) | 1.2 lbs (3 lbs) |
