DXR Tape & Band Tension Meter

Made in Germany
Click images to enlarge.
The CHECKLINE DXR Tension meter is designed for measuring all of tapes and bands, such as textile ribbons, films, foils, fiber bunches, etc.

Dual-flanged rollers for narrow webs less then 4 inches (100 mm) width is optionally available.

Note: This model does not include a filament guide and material thickness compensator

Features

  • NIST-Traceable Calibration Certification OPTIONAL
  • Single-flanged outer guide rollers with 50 mm or 100 mm width (dual-flanged rollers optional)
  • Roller shifting mechanism ensures easy acquisition of the running material
  • The analog display shows changing and fluctuating tensions fast and enables an optimal process adjustment
  • Warranty: 1-Year
  • Made in Germany

Tension Ranges

ModelRangeMeasuring Head
Width mm		Roller Widths mm
DXR-2000200-200012550, 100
DXR-5000400-500012550, 100
DXRL-10K2.5-10 Kg12550, 100
DXRL-20K5-20 Kg20050, 100
DXRL-30K5-30 Kg20050, 100
DXRL-50K5-50 Kg20050, 100
Special calibration using customer supplied samples is recommended, if process material differs significantly from the Check-Line calibration material in diameter, rigidity or shape. For this purpose a material sample of about 5 m should be supplied.

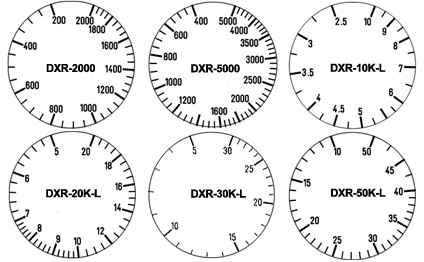

DXR Dial Faces

Related Products

Click image for more info
Roller Guide
Available Rollers for Hand-Held Tension Meters
TX2 Tension Meter
Click image for more info
TX2
Tape Tension Meter with rollers point away from operator
RX2 Tensiometer
Click image for more info
RX2-BX2
Carbon Fiber / Narrow Web / Tape Tension Meter

Guide Rollers

Roller Widh Line Speed
...m/min		 Roller Material
50 mm 1000Hardcoated aluminium
100 mm 1000Hardcoated aluminium

Options

Lever (L)
A heavy duty, lever-operated mechanism moves the outer rollers for easy acquisition of the running filament. Recommended for models of 10 Kg or higher.
Memory Pointer (M)
Designed to retain the peak value as tensions fluctuate. Manually reset by using the knob located in the center of the dial.

Complete Kit

The DXR Tension Meter is supplied as a complete kit including meter and instruction manual in a foam-fitted hard-plastic carrying case.

Specifications

Accuracy± 1% of full scale or
± 1 graduation mark on scale
Diameter of Scale41 mm
Maximum Speed1000 m/min
Roller MaterialHardcoated aluminium
Housing MaterialDie-cast aluminum
Temperature range50 - 113°F (10 - 45°C)
Air humidity85 % RH, max.
Housing dimensions(L x W x H)7.5 x 3.3 x 1.8 in(188 x 85 x 45 mm)
Weight, net (gross)2.2 lbs (4.5 lbs)
