HP-Bareiss Bareiss HP Analog Durometer

Made in Germany

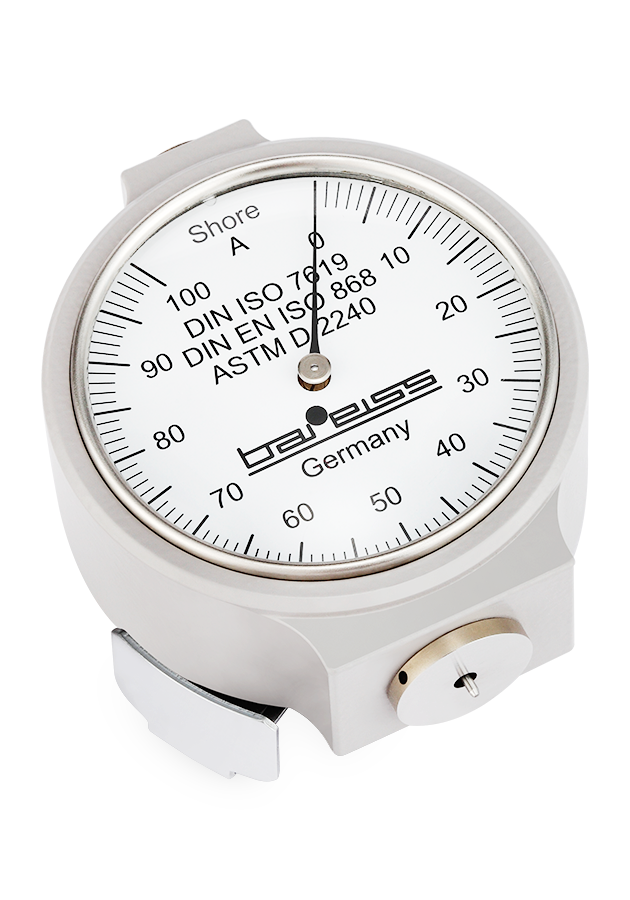

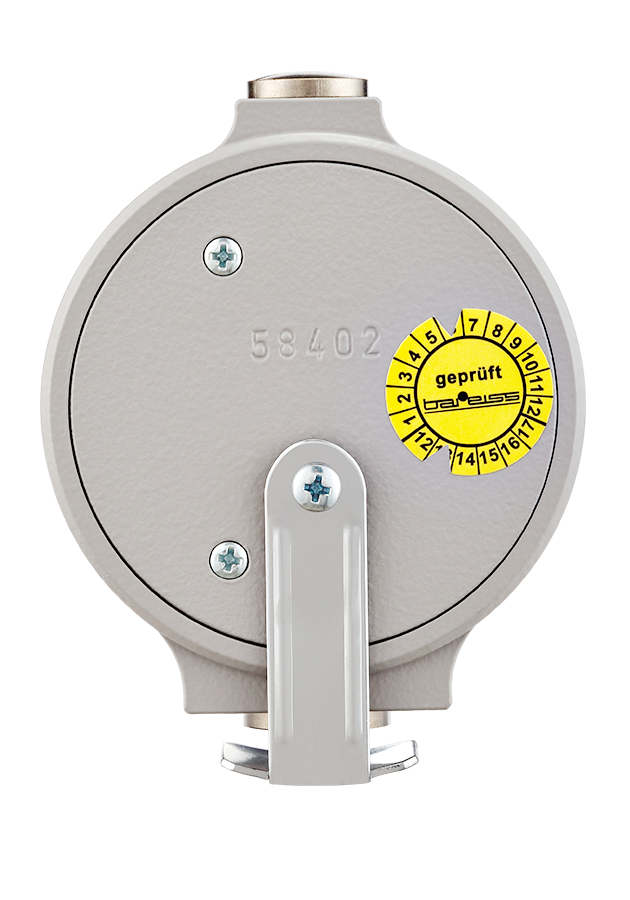

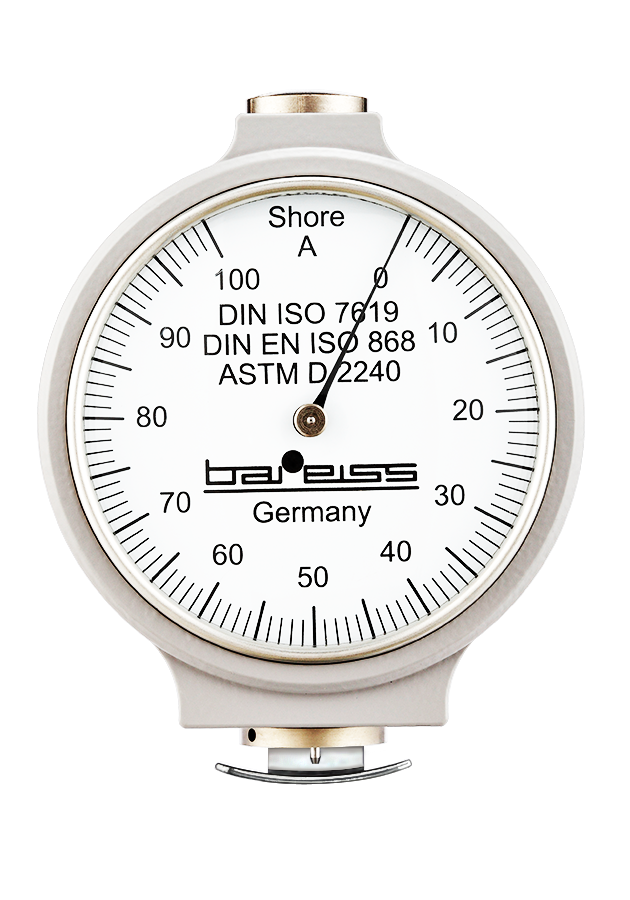

Bareiss HP Durometer
Click images to enlarge.
Available Scales: A, D, O, B C, DO, AO, E, OO, OOO, OOOS, E & Asker C

Bareiss HP Durometers measure hardness according to ASTM and ISO standards. Every HP is carefully assembled and calibrated by Bareiss technicians. To reduce friction, all Durometers include precision ball bearings to ensure smooth traveling of the indentor eliminating errors caused by friction. The Bareiss HP Series is available in different Shore and non-Shore scales.

They are fabricated using cast aluminum housings providing the durability required for use in tough production environments. Options include a Memory Pointer to retain the Peak Value during measurement. For measurement of round samples or on small parts or on a radius, it can be used with the BS61 Test Stand to increase repeatability and minimize operator variability.

Ideally suited for hardness measurement of all natural and synthetic rubber products, plastics, acrylic glass, acetates, thermoplastics, PVC, neoprenes, hardboards, wood, leather, and fruits utilizing Shore A, A0, B, 0, C, D, D0, 00, 000, 000S, E, and Asker C scales.

Please note that the number "0" is used in the part number instead of the letter "O", however, they are identical.
For example an HP-D0 = HP-DO.

Features

  • DAkkS-Traceable Calibration Certificate is optional
  • Conforms to DIN ISO 7619, DIN EN ISO 868, NF T 51-174, ASTM D 2240, BS 903 Part. A 26
  • Can be used in any measurement orientation as gravity does not affect readings
  • Optional Memory Pointer ("S" versions) holds highest reading (not available on OO and OOO models)
  • Slide-on/off metal protection plate covers the indentor and protects it from damage when not in use (not on 00 and 000)
  • 1-Year Warranty

Models

ScaleLoadSpring ForceFoot SizeIndentor TravelMin Sample ThicknessIndentor Shape
A1 Kg8.050 N18 mm2.5 mm4 mm (DIN EN ISO 868)
6 mm (all other standards)
35 degree indentor
D5 Kg44.45 N18 mm2.5 mm4 mm (DIN EN ISO 868)
6 mm (all other standards)
30 degree indentor
01 Kg8.050 N>500mm22.5 mm6 mm (all standards)
3-32nd indentor
B1 Kg8.050 N18 mm2.5 mm6 mm (all standards)
30 degree indentor
C5 Kg44.45 N18 mm2.5 mm6 mm (all standards)
35 degree indentor
D05 Kg44.45 N>500mm22.5 mm6 mm (all standards)
3-32nd indentor
A01 Kg8.050 N>500mm22.5 mm6 mm (all standards)
5mm indentor
E1 Kg8.050 N>500mm22.5 mm6 mm (all standards)
5mm indentor
00400 g1.111 N>500mm22.5 mm6 mm (all standards)
3-32nd indentor
000400 g1.111 N>500mm22.5 mm6 mm (all standards)
000S400 g1.932 N>500mm25.0 mm6 mm (all standards)
r10.7mm indentor

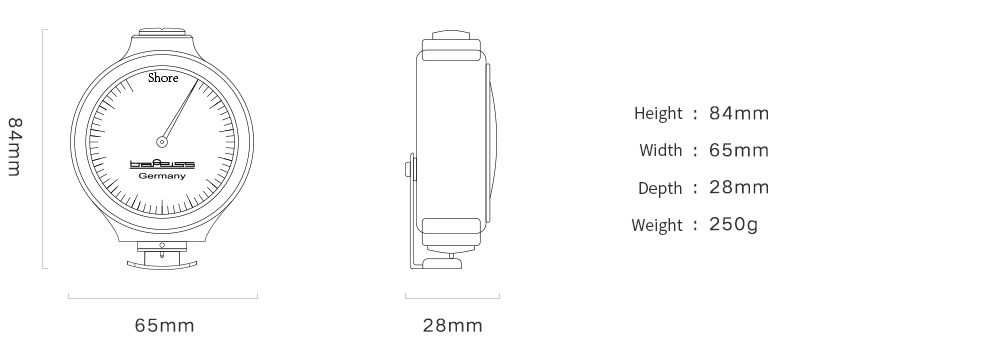

Dimensions

Related Products

Bareiss BS 61 II durometer test stand
Click image for more info
Durometer Test Stand - Lever Operated
bareiss HPE Durometer
Click image for more info
Bareiss HPE Digital Durometer
- Built-In timer function

Specifications

Measuring Range0 - 100 units
Accuracy*±1 durometer unit (A,B,C,D,O,DO & Asker C)
±2 durometer units (OO)
Dial Size50 mm Diameter
Dimensions128 x 57 x30 mm
Weight200 grams (7 ounces)
Warranty1 year
* Noteper ASTM D 2240-05, Sect 9.3: It is accepted that durometer readings below 20 or above 90 are not considered reliable. It is suggested that readings in these ranges be omitted.
Conforms toASTM D-2240, DIN 53505, ISO 868, JIS K 7215 & ISO 7619. Asker C model conforms to JIS K-7312.
Mounting Thread5/16-40
Tolerance± 0.5 at "100" and -0 +1 at "0"

Downloads

Buy Now

Item Description Price
Shore A Durometer for Soft rubber, plastics and elastomers, 18 mm Footer - fm00077
$1,080.00
Shore D Durometer for Hard rubber and plastics, 18 mm Footer - fm00087
$1,235.00
Shore 0 Durometer for soft elastomers below 20 A scale - fm00074
$1,340.00
Shore B Durometer for Harder elastomers and plastics. Use above 93 A scale - fm00083
$1,340.00
Shore C Durometer for Medium hard elastomers and plastics - fm00085
$1,340.00
Shore DO Durometer for Dense granular material and textile windings - fm00091
$1,480.00
Shore A0 Durometer for foams, steering wheels and inner linings of autos - fm00058
$1,480.00
Shore E Durometer for very soft foams and compressive materials - fm00131
$1,480.00
Shore 00 Durometer for Light foams, sponge rubber gels and animal tissue - fm00103
$1,725.00
Shore 000 Durometer for Ultra soft gels and sponge rubber - fm00104
$1,875.00
Shore 000S Durometer for Ultra soft gels and sponge rubber softer than OOO - fm00082
$2,060.00
Asker C Durometer for foam rubber, insole of tennis shoes, etc - fm00097
$1,340.00
Models with Max Hand (Memory Pointer)
Shore A Durometer with Max Pointer - fm00079
$1,230.00
Shore D Durometer with Max Pointer - fm00089
$1,385.00
Shore 0 Durometer with Max Pointer - fm00076
$1,515.00
Shore Durometer with Max Pointer - fm00084
$1,515.00
Shore C Durometer with Max Pointer - fm00086
$1,515.00
Shore DO Durometer with Max Pointer - fm00090
$1,650.00
Shore A0 Durometer for foams, steering wheels and inner linings of autos
with Max Pointer - fm00049
$1,650.00
Shore E Durometer for very soft foams and compressive materials
with Max Pointer - fm00132
$1,650.00
Accessories
HP-DAKKS
Official DAkkS-calibration certificate for Bareiss HP Shore Durometers - dkd09002
$610.00
