SY-L (Shore A, B, E, O, OO, Asker C)

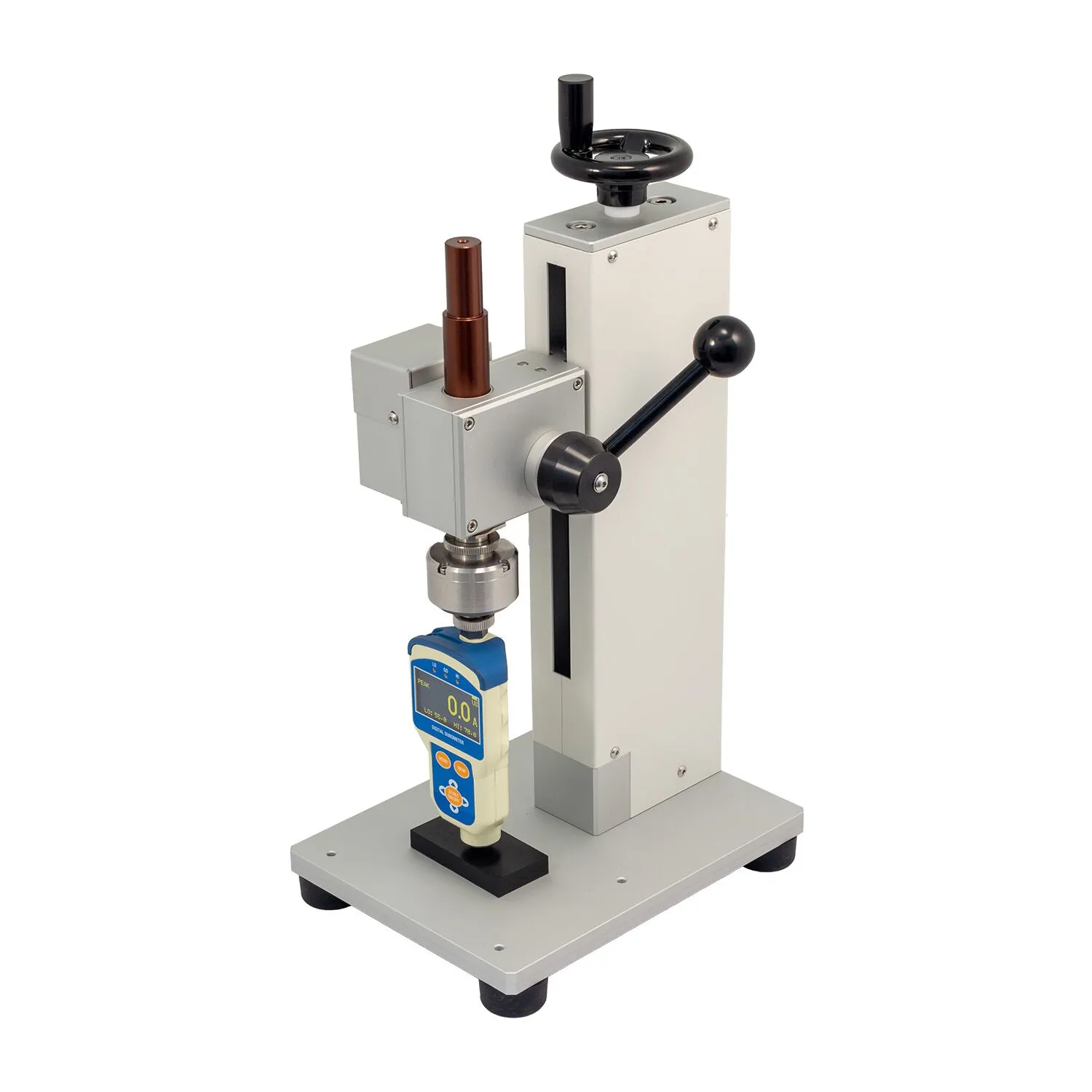

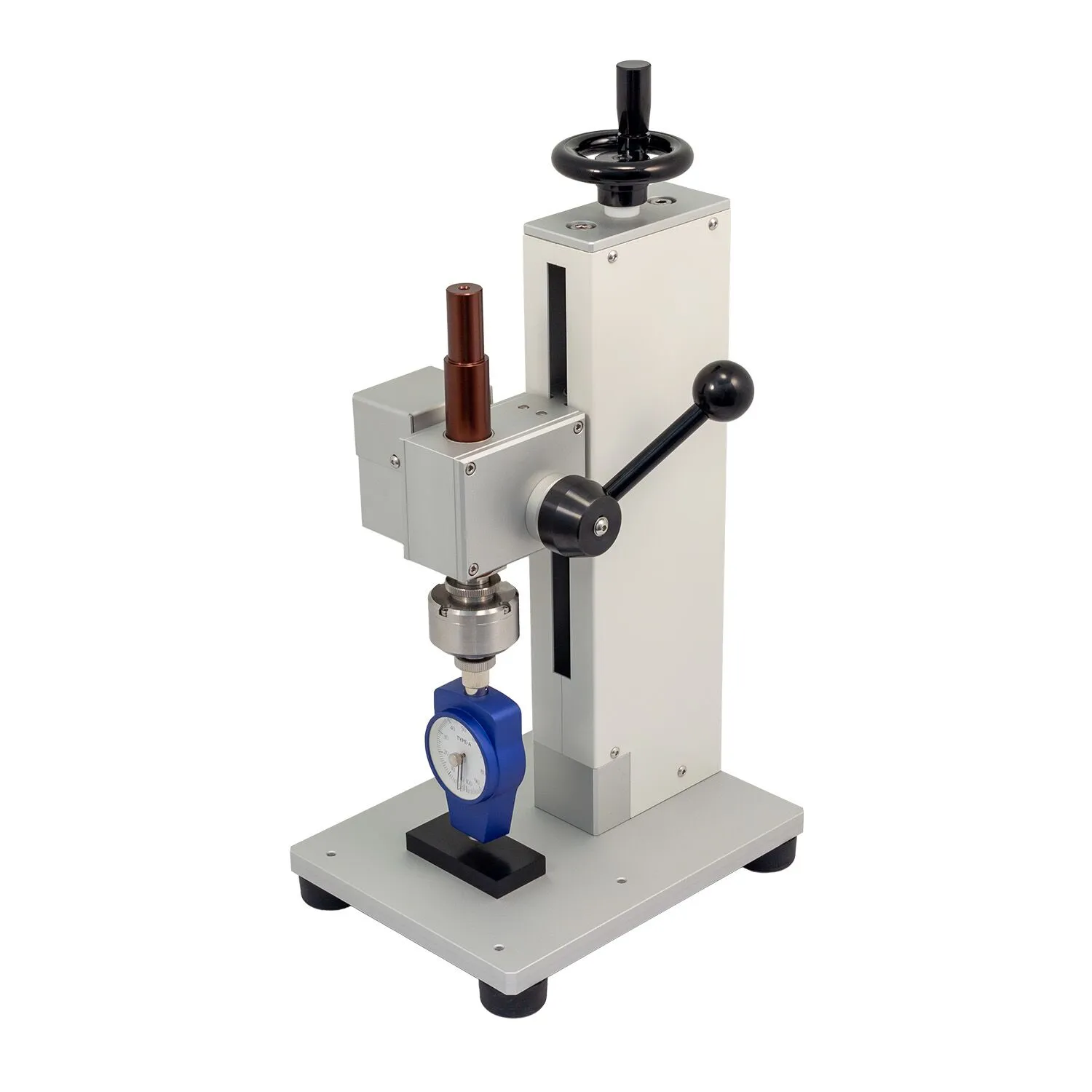

SY-H (Shore C, D, DO) SY Manual Durometer Stand eliminates the speed and load variables which occur when hand-testing samples with a durometer. The load and test speed the durometer applies to the sample are kept constant with a standard weight and pneumatic damper. Multiple scales can be tested using the appropriate durometer, coupling, weight and damper setting.
Operation
Use the handwheel to adjust clearance from the sample. Lightly pull the lever forward to start the durometer moving down. The Auto Contact Adapter (optional) enables the durometer to align to the sample to make full, even contact.
Auto Contact Adapter (Optional)
SY Lever-Operated Durometer Test Stands can be supplied with the optional Auto Contact Adapter which enables the durometer to align perpendicularly to the sample to make full, even contact. Part# SA-L or SA-H.
*Durometer NOT included.
SY-H (Shore C, D, DO) SY Manual Durometer Stand eliminates the speed and load variables which occur when hand-testing samples with a durometer. The load and test speed the durometer applies to the sample are kept constant with a standard weight and pneumatic damper. Multiple scales can be tested using the appropriate durometer, coupling, weight and damper setting.
Operation
Use the handwheel to adjust clearance from the sample. Lightly pull the lever forward to start the durometer moving down. The Auto Contact Adapter (optional) enables the durometer to align to the sample to make full, even contact.
Auto Contact Adapter (Optional)
SY Lever-Operated Durometer Test Stands can be supplied with the optional Auto Contact Adapter which enables the durometer to align perpendicularly to the sample to make full, even contact. Part# SA-L or SA-H.
*Durometer NOT included.
- Simple lever operation
- Handwheel enables easy height adjustment
- Pneumatic damper maintains consistent test speed
- Auto Contact Adapter enables the durometer to make full, even contact (Optional)
- Accommodates multiple durometer scales
- Heavy-duty metal construction
| Model | Durometer Scales | Contact Adapter | Weight |
|---|---|---|---|
| SY-L | Shore A, Shore B, Asker C, Shore O, Shore OO | SA-L | - |
| SH-H | Shore C, Shore D, Shore DO | SA-H | WH-5k |
| Item | Description | Price | ||
|---|---|---|---|---|
Manual Durometer Operating Stand for Shore A, B, E, O, OO, Asker C | $1,830.00 | |||
Manual Durometer Operating Stand for All Types, Shore C, D, DO + A, B, E, O, OO, Asker C | $1,980.00 | |||
| Accessories | ||||
Auto Contact Adapter for use with YMS-L or SY-L Test Stand | $530.00 | |||
Auto Contact Adapter for use with YMS-H or SY-H Test Stand | $530.00 | |||
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
