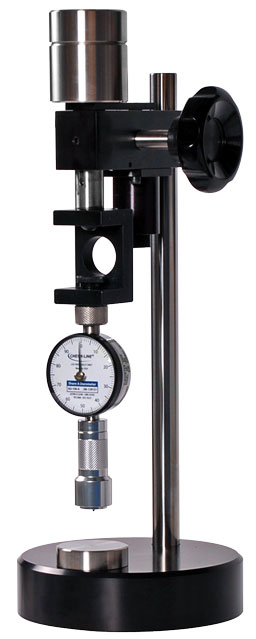

The OS-2 durometer operating stand is designed for use with type A, B, E and O scale durometers. The stand, used in conjunction with our Durometers, eliminates operator error sometimes associated with shop floor durometer testing. The stand features a load weight for the proper testing pressure as noted in ASTM D2240, and a quick-lock column for easy adjustment. It can be used with either the provided specimen holder or the optional ORF-1 O-Ring Fixturing Set (sold separately).

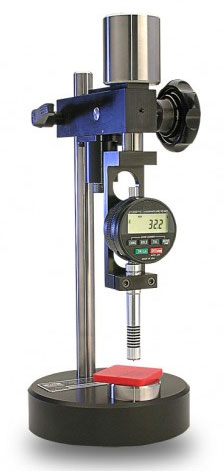

The OS-2H features an a dampener that lowers the durometer at the same rate for each test, resulting in superior repeatability for all durometer tests
*Durometer Sold Separately
- Eliminates operator error in the A, B, E and O scales
- Stainless steel and anodized aluminum construction
- Compact size - 13" high x 6" wide
- Total Weight approximately 9 lbs.
- Made in the U.S.A.
- Optional Dampener further increases repeatability
| Sample Clearance | Height: 2 5/8" To Specimen Holder Depth: 3 1/4" Durometer Center To Shaft |
| Item | Description | Price | ||
|---|---|---|---|---|
Durometer Test Stand for AD, DD and RX Series Durometers | $930.00 | |||
Durometer Test Stand with Dampener for RX Series Durometers | $1,255.00 | |||
Durometer Test Stand for AD-100 or DD-100 Durometers | $930.00 | |||
Durometer Test Stand with Dampener for AD-100 or DD-100 Durometers | $1,255.00 | |||
| Accessories | ||||
ORF-1 O-Ring Fixture Set | $380.00 | |||
DTS-DC | Operating Stand Dust Cover | $25.00 | ||
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
