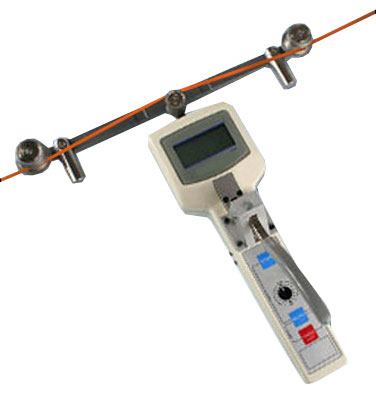

DTWB Standard Model
DTWX Data-Logging Model
DTWX Data-Logging Model
2 Ranges Up To 50 Kg
For material diameters up to 6mm (.250")
- Large bending radius assures gentle handling of the material being measured
- A precision strain-gauge sensing system accurately measures the force on the middle sensing roller.
- High-Speed Measurement Captures Max, Min & Peak Tension Values
- Built-in datalogging with RS232 and 0-1 VDC Analog output
- Memory capacity of 100 values plus min, max, peak, avg and standard deviation
- Optional TensionView software available for batch download or continuous real-time trending
| Model | Range | Resolution | Meas. Head Width |
|---|---|---|---|
| DTWB-20KB DTWX-20KB | 2.00 - 20.00 Kg | 0.01 Kg | 285 mm |
| DTWB-50KB DTWX-50KB | 5.00 - 50.00 Kg | 0.01 Kg | 285 mm |
| Roller Details | Image | Dimensions |
| Center Roller Max Speed: 1000 m/min Material: Hard-Coated Aluminum Part Number: R12900 |
 |
 |
| Outer Rollers Max Speed: 1000 m/min Material: Hard-Coated Aluminum Part Number: R12902 |
|
 |
The DTWB / DTWX is supplied as a complete kit including tension meter, four (4) AA batteries and isntruction manual in rugged plastic carrying case.
| Accuracy* | ± 0.5% Full Scale, ± 1 digit (10 - 90% of Full Scale) ± 3.0% Full Scale, ± 1 digit (Remaining portion of range) |
| Measuring Frequency | 16 m/sec (62.5 samples/sec) |
| Deflection of Sensing Roller | 0.2 mm (maximum) |
| Overload Capacity | 200% of Full Scale |
| Display | 4-Digit LCD, 12 mm high |
| Display Update Rate | 0.5, 1.0, 2.0 or 4.0 seconds, dip-switch selectable |
| Standard Memory | Last, maximum, minimum and peak |
| Field Calibration Adjustment | ± 7 steps, 1.5% per step |
| Battery Type | Four (4) 1.5 V AA (included) |
| Battery Life | 20 hours, continuous use |
| Auto Power Off | After 2 minutes of non-use |
| Roller Material | Hard-Coated Aluminum |
| Maximum Speed | 1000 meters per minute |
| Housing Material | Die-cast Aluminum |
| Weight | 1.43 lbs. (650 g) |
| Operating Temperature | 32 to 132 °F (0 to 45 °C) |
| Warranty | One year |
