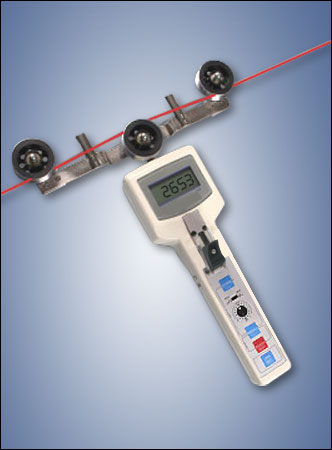

DTLB Standard Model
DTLX Data-Logging Model
DTLX Data-Logging Model
3 Ranges Up To 10 Kg
For material diameters up to 8mm (5/16")
Requires Calibration with Customer Sample
DTLB and DTLX models feature large diameter rollers with wide roller spacing to minimize bending when measuring tensions on rigid/stiff materials such as certain canles, buffer tubes, central strength members, plastic tubes, etc.
DTLX Additional Features
- Built-in datalogging with RS232 and 0-1 VDC Analog output
- Memory capacity of 100 values plus min, max, peak, avg and standard deviation
- Optional TensionView software available for batch download or continuous real-time trending
- Large, V- or U-grooved guide rollers with 29.5 mm groove diameter, ball-bearing mounted
- Large bending radius assures gentle handling of the material being measured
- Special guides on the bracket assembly permit easy material acquisition
- A precision strain-gauge sensing system accurately measures the force on the middle sensing roller.
- High-Speed Measurement Captures Max, Min & Peak Tension Values
- Requires Calibration on Customer Sample
| Model | Range | Resolution | Meas. Head Width | Lever |
|---|---|---|---|---|
| DTLB-2000 DTLX-2000 | 200-2000 g | 1 g | 185 mm | Optional |
| DTLB-5000 DTLX-5000 | 400-5000 g | 1 g | 235 mm | Optional |
| DTLB-10K-L DTLX-10K-L | 1 - 10 Kg | 0.01 Kg | 235 mm | Included |
NOTE Customer's sample required for calibration
NOTE DTLB-10K-L & DTLX-10K-L include lever in place of thumb piece. Lever is available as option on other ranges.
| Roller Details | Image | Dimensions |
| Standard Max Speed: 4000 (m/min) Material: hardened steel (R10006) |
 |
 |
| Option - R1 Max Speed: 4000 (m/min) Material: hardened steel (radius R5) |
|
 |
The DTLB / DTLX is supplied as a complete kit including tension meter, four (4) AA batteries and instruction manual in rugged plastic carrying case.
| *Accuracy | ± 0.5% Full Scale, ± 1 digit (10 - 90% of Full Scale) ± 3.0% Full Scale, ± 1 digit (Remaining portion of range) |
| Measuring Frequency | Measuring Frequency |
| Deflection of Sensing Roller | 0.2 mm (maximum) |
| Overload Capacity | 200% of Full Scale |
| Display | 4-Digit LCD, 12 mm high |
| Display Update Rate | 0.5, 1.0, 2.0 or 4.0 seconds, dip-switch selectable |
| Standard Memory | Last, maximum, minimum and peak |
| Calibration | Requires Calibration on Customer Sample |
| Field Calibration Adjustment | ± 7 steps, 1.5% per step |
| Battery Type | Four (4) 1.5 V AA (included) |
| Battery Life | 20 hours, continuous use |
| Auto Power Off | After 2 minutes of non-use |
| Roller Material | hardened steel |
| Maximum Speed | 4000 m/min |
| Housing Material | Die-cast Aluminum |
| Weight | 1.43 lbs. (650 g) |
| Operating Temperature | 32 to 132 °F (0 to 45 °C) |
| Warranty | One year |
| AC Adapter (optional) | 6 VDC @ 300 mA, for continuos in-line use |
| DTLX | Additional Specifications |
| Memory Capacity | 100 values plus maximum, minimum, average, peak, standard deviation and memory location |
| Memory Operation | Continuous Mode: Automatic storage of each displayed value until memory is full On-Demand Mode: Displayed value is stored when STORE key is pressed |
| Serial Output | RS-232C (4800 baud, 8 bit word length, no parity, 2 stop bits) |
| Analog Output | 0-1 VDC, proportional to tension range |
