2 models available:
- DDM-2007 with feeler pressure of 0.7 N
- DDM-2020 with feeler pressure of 2.0 N
Measuring range: .1" (3 mm)
Resolution: .00005" (0.001 mm / 1 µm)
Maximum error: ± .00012" (3 µm)

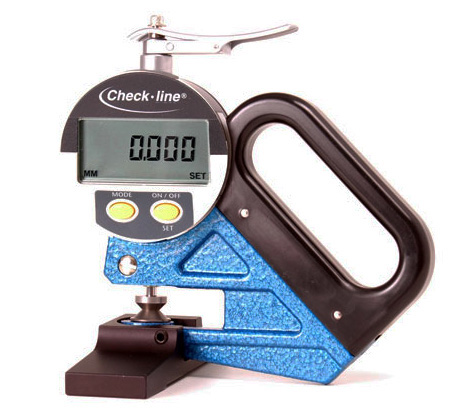

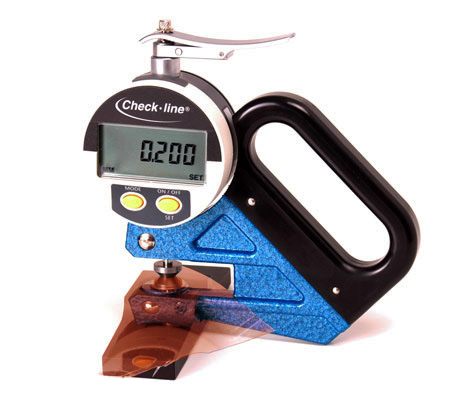

This handy thickness gauge is used exclusively to measure the thickness of thin foils. The frame has the required rigidity, the insulation of the handle prevents transfer of heat from the hand of the user to the sensitive mechanical parts of the Gauge.
- DDM-2007 with feeler pressure of 0.7 N
- DDM-2020 with feeler pressure of 2.0 N
Measuring range: .1" (3 mm)
Resolution: .00005" (0.001 mm / 1 µm)
Maximum error: ± .00012" (3 µm)
This handy thickness gauge is used exclusively to measure the thickness of thin foils. The frame has the required rigidity, the insulation of the handle prevents transfer of heat from the hand of the user to the sensitive mechanical parts of the Gauge.
- Insulated handle prevents transfer of heat from the hand of the user to the sensitive mechanical parts of the Dial Gauge
- Operated by lifting device, self closing, available with 0.7 N or 2.0 N pressure
- Special purpose model with resolution of .00005" (0.001 mm / 1 µm)
- Accuracy of ± .00012" (3 µm)
Feeler: F
For soft leather, cardboard, paper, foils, knitting needles etc.
An optional table stand is available to convert a the handheld thickness gauge into a table model.
Simply place the thickness gauge into the table stand and tighten the Hex screws with the included Allen Hex fastener.
| Resolution | .00005" (0.001 mm / 1 µm) |
| Measuring range | .1" (3 mm) |
| Accuracy | ± .00012" (3 µm) |
| Depth of jaw | 1.18" (30 mm) |
| Feeler Shape | F - 6,35 mm Ø flat |
| Measuring pressure | available with 0.7 N and 2.0 N closing pressure |
| Measurment by spring load | Operated by lifting device - self closing |
| Warranty | 1 year |
| Item | Description | Price | ||
|---|---|---|---|---|
Digital Thickness Gauge (0-0.100"/0-3mm) with 0.7 N Test Pressure | $995.00 | |||
Digital Thickness Gauge (0-0.100"/0-3mm) with 2.0N Pressure | $995.00 | |||
| Accessories | ||||
TABLE-STAND | Table Stand for Thickness Gauge | $99.00 | ||
NISTCAL | NIST Traceable Calibration Certificate | $100.00 | ||
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
