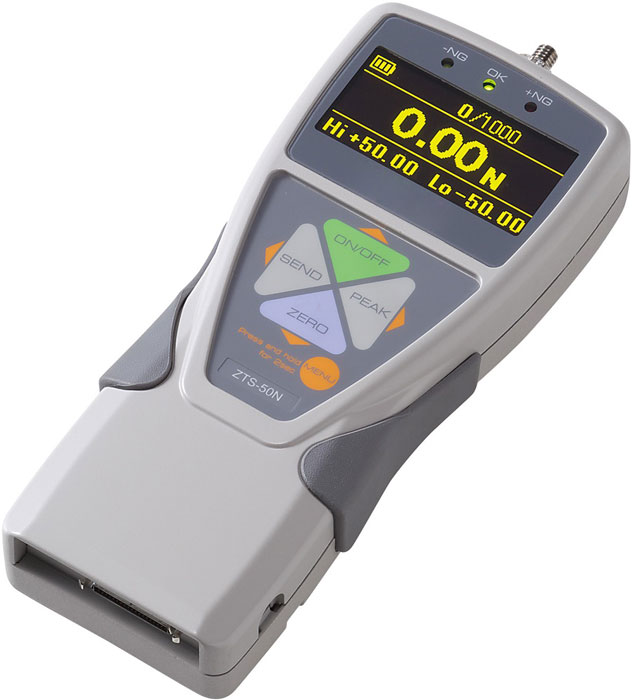

The ZTA is an advanced digital force gauge with high speed sampling, ELD display and USB output. Intuitive menus make it easy to select units, reverse the display and program high/low setpoints. A large, bright Electroluminescent display (ELD) shows force value, unit of measure, and peak, and can be configured with additional user-selectable data including memory data, +NG count, high/low setpoints, 1st and 2nd peaks, displacement value (using a test stand with FA option), etc.
Color-coded LED indicators alert the user to Go/No-Go conditions. Orange lights for less than low setpoint, green lights between high and low, and red for over the high.

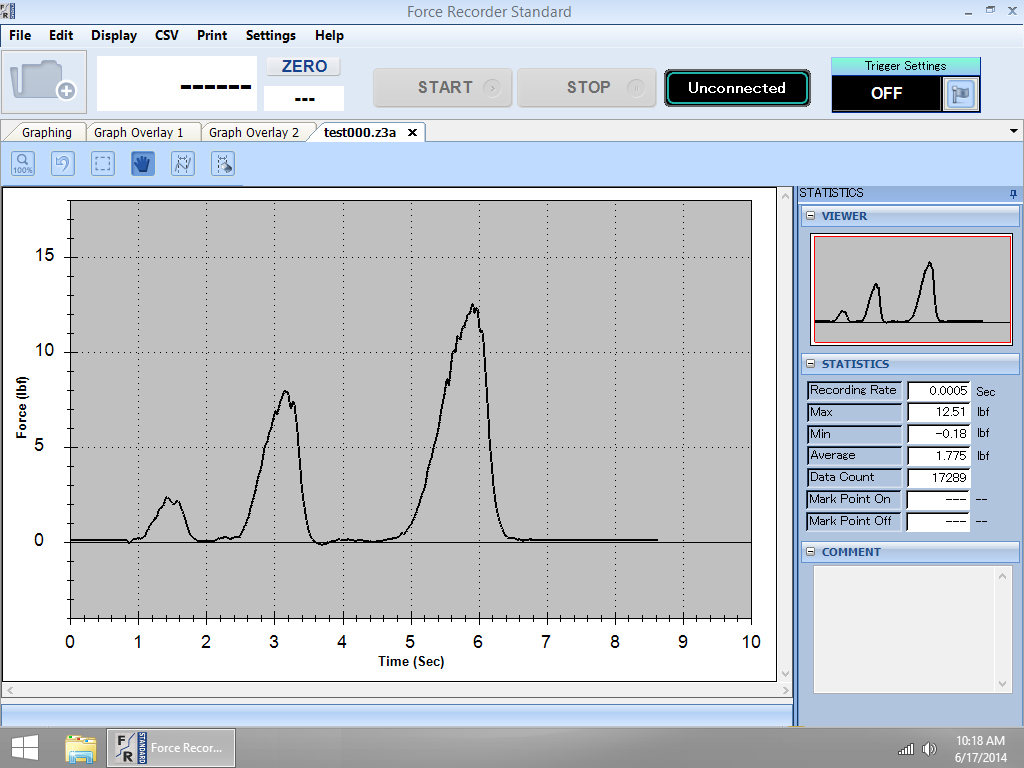

The ZTA can process and transmit 2,000 actual data per second using optional Force Recorder data acquisition software.
Display force and displacement data on ZTA gauges with test stands equipped with FA option.
Save data to USB flash drives. Export peak data or capture continuous data at 100 data/second to flash drives with ZTA force gauges.
ZT Logger data acquisition software downloads data from the gauge memory or captures a continuous stream of data at 10 data/second. Zero the gauge or capture data while at the computer. All gauge programming can be set and saved from the software.
-
Includes NIST Traceable Calibration Certificate
ISO-17025 calibration certificate option available - Electroluminescent display (ELD) is highly visible in dark locations
- 30,000 data/sec ultra-high sampling rate; Processes and transmits 2,000 data/sec.
- Ergonomic design with non-slip grips, heavy duty metal construction
- Overload capacity 200% F.S.
- Multi-langauge program menus: English, Spanish, French, Chinese, German, Italian, Korean, Japanese
- Color-coded LED indicators and output signal for Go/No Go testing
- External switch display hold and clear
- USB, RS-232C, Digimatic and Analog outputs
- Internal Ni-MH batteries or AC adapter
- Real time and peak mode (selectable)
- Overload alarm and output signal
- lbf, kgf, and N units are selectable
- Export gauge memory or save continuous data to USB flash drives (ZTA Models only)
- 2-Year Warranty
| Model | Capacity | Resolution |
|---|---|---|
| ZTA-0.4 | 7.00 ozf 200.0 gf 2.000 N | 0.01 ozf 0.1 gf 0.001 N |
| ZTA-1 | 18.00 ozf 500.0 gf 5.000 N | 0.01 ozf 0.1 gf 0.001 N |
| ZTA-4 | 4.400 lbf 2.000 kgf 20.00 N | 0.001 lbf 0.001 kgf 0.01 N |
| ZTA-11 | 11.00 lbf 5.000 kgf 50.00 N | 0.01 lbf 0.001 kgf 0.01 N |
| ZTA-44 | 44.00 lbf 20.00 kgf 200.0 N | 0.01 lbf 0.01 kgf 0.1 N |
| ZTA-110 | 110.0 lbf 50.00 kgf 500.0 N | 0.1 lbf 0.01 kgf 0.1 N |
| ZTA-220 | 220.0 lbf 100.0 kgf 1000 N | 0.1 lbf 0.1 kgf 1 N |
| ZTA-550 | 550.0 lbf 250.0 kgf 2500 N | 0.1 lbf 0.1 kgf 1 N |
| ZTA-1100 | 1100 lbf 500.0 kgf 5000 N | 1 lbf 0.1 kgf 1 N |

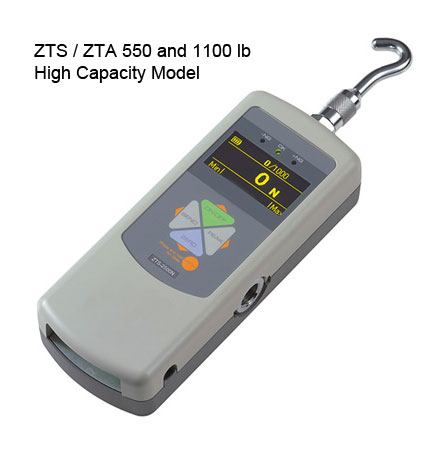

Kit includes, full set of 8 attachments (small hook, large hook, y-hook, flat, cone, chisel, notched and extension), ZT Logger data acquisition software, USB cable, AC adapter/charger, calibration cert traceable to NIST and carrying case. ZTS/ZTA 550 & 1100 models include screw-in handles.
| Accuracy | ± 0.2% F.S., ± 1 LSD |
| Selectable Units | lbf(ozf), kgf(gf) or Newtons |
| Overload Capacity | 200% of F.S. (Overload indicator flashes beyond 110% of F.S.) |
| Memory | Non-volative, recall up to 1,000 data values |
| Setpoints | Programmable high/low setpoints w/ color-coded LEDs & output signal |
| Display Type | Electro Luminescent (EL) Display |
| Display Update Rate | 10/second |
| Outputs | Outputs USB, RS-232C, Digimatic and ± 2 VDC analog output |
| Operating Temperature | 32 to 100 °F (0 to 40 °C) |
| Power | Rechargeable Ni-MH battery pack or AC adapter |
| Battery Life | approx. 8 hours (recharge time approx. 10 hours) |
| Battery Indicator | Indicates three charge states "high", "med" and "low" |
| Warranty | 2 Years |
| Sensitivity | Max, High, Medium, Low (selectable) |
| Auto Power Off | 5, 10, minutes or OFF (selectable) |
| Item | Description | Price | ||
|---|---|---|---|---|
Advanced Digital Force Gauge, 7 oz / 200 g / 2 N Capacity | $1,182.50 | |||
Advanced Digital Force Gauge, 18 oz / 500 g / 5 N Capacity | $1,182.50 | |||
Advanced Digital Force Gauge, 4.4 lb / 2 Kg / 20 N Capacity | $1,182.50 | |||
Advanced Digital Force Gauge, 11 lbs / 5 Kg / 50 N Capacity | $1,182.50 | |||
Advanced Digital Force Gauge, 44 lbs / 20 Kg / 200 N Capacity | $1,182.50 | |||
Advanced Digital Force Gauge, 110 lbs / 50 kg / 500 N Capacity | $1,182.50 | |||
Advanced Digital Force Gauge, 220 lbs / 100 Kg / 1000 N Capacity | $1,303.50 | |||
Advanced Digital Force Gauge, 550 lbs / 250 Kg / 2500 N Capacity | $1,413.50 | |||
Advanced Digital Force Gauge, 1100 lbs / 500 Kg/ 5000 N Capacity | $1,584.00 | |||
| Accessories | ||||
ISO-17025 | ISO-17025 Accredited Calibration with Certificate | $220.00 | ||

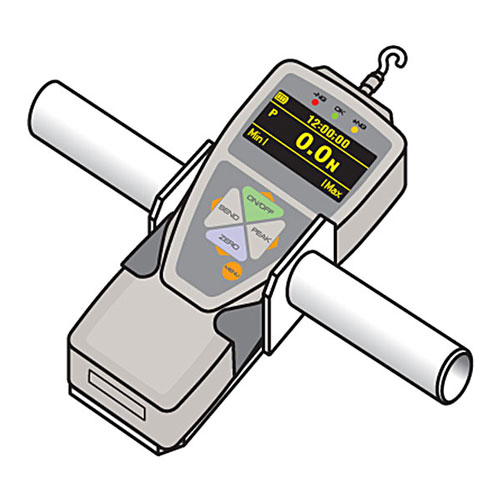

OH-1 | Double Sided Handle For Force Gauges up to 220 lbf / 100kg | $104.50 | ||
ADW-6010 | Spare / Replacement Power Adapter for ZT / HTGS / DTXS | $66.00 | ||
CB-108 | Analog Output Cable for ZTA / HTGS | $93.50 | ||
CB-208 | RS-232 Cable for ZTA / HTGS | $93.50 | ||
CB-308 | Digimatic Cable for ZTA / HTGS | $93.50 | ||
Force Recorder Software - Light Edition | $319.00 | |||
Force Recorder Software - Standard Edition | $440.00 | |||
Force Recorder Software - ProEdition | $704.00 | |||
