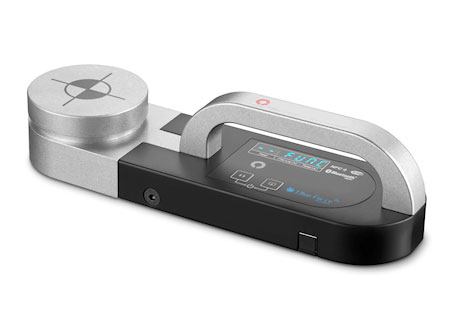

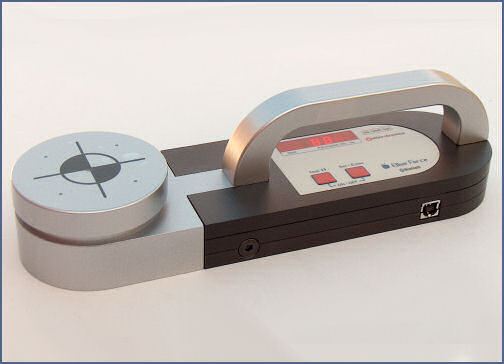

BlueForce Impact Force Gauge

Blueforce Impact Force Gauge
Click images to enlarge.

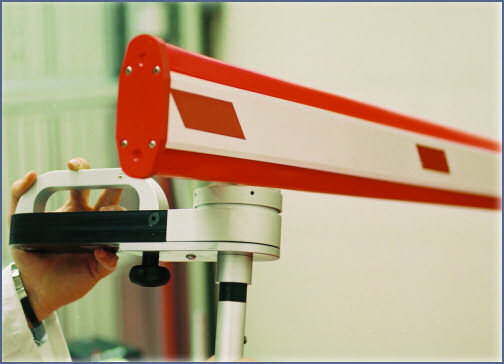

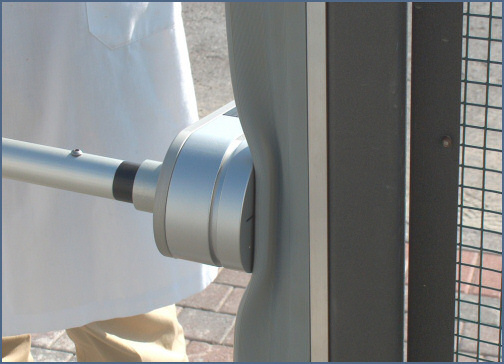

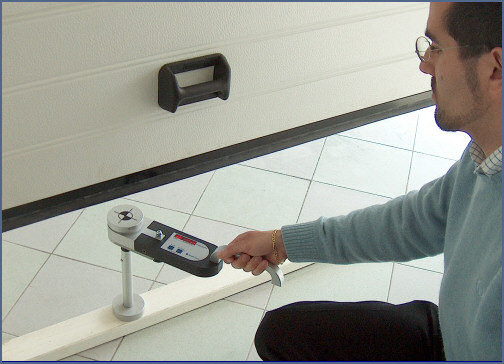

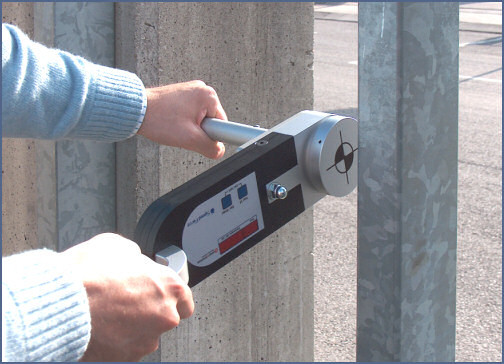

BlueForce SMART is an impact force gauge for automatic/power operated doors/gates, which complies with standards EN 12445 and EN 12453

BlueForce: one of a kind, with dual Bluetooth and USB interface

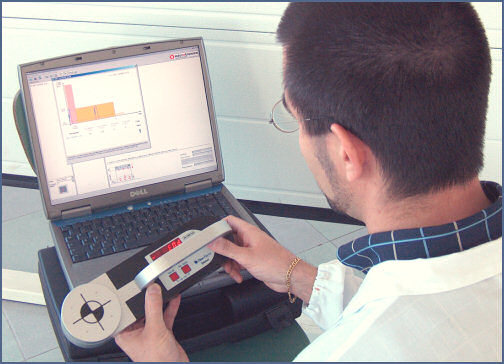

Thanks to the PC-LINK mode, Blue Force can also be linked up to a handheld computer or a PC during testing, allowing immediate viewing of the graph and values, as a well as immediate access to test results.

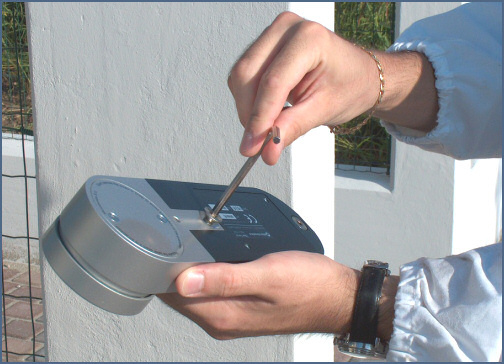

The comfortable handle, in an accessible and ergonomic position, ensures a steady grip and matchless manoeuvrability; the handle is also easy to remove (using the key supplied) and can be rotated by 180° (i.e. turned upside down).

Features

  • Software installation and set-up becomes even more straightforward!
  • Offers a fully independent operation mode, in which the parameters and mathematic averages can be displayed
  • Options include: sending, deleting and browsing saved tests (all using an interactive menu).
  • Blue Force SMART is a dual purpose gauge, as it incorporates both a display and internal storage allowing up to 80 measurements to be saved.
  • With the plug'n'go receiver device supplied, the measurements can be conveniently transferred using wireless technology.
  • New Built-in clock automatically saves date and time of each stored test

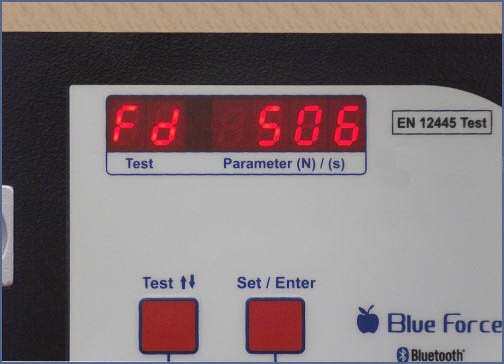

  • New Blue-colored alphanumeric LCD display improves visibility in all lighting conditions
  • Optional Bluetooth and NFC Technology allows for cable free data transfer to PCs and smartphones

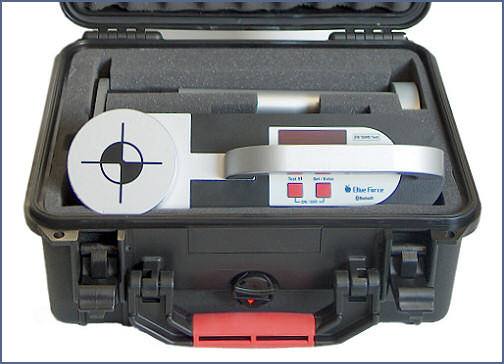

  • Optional EXTREME Carrying Case for Gauge & Straight Extension. IP67 Rated Impact-Proof, Dust-Proof and Water-Resistant Carrying Case
  • Made in Italy with2-Year Warranty

Complete Kit

Blueforce complete kit comes supplied with, the BlueForce gauge, software, Bluetooth device, spanner for handle, instruction manual and Calibration Certificate.

Specifications

Accuracy0 - 400 N: 1%
401-1000 N: 2%
1001 - 2000 N: 4%
Force Resolution1 N
Range0 - 2000 N (mechanical stop at approx. 2100 N)
Current Absorbedmin. 4mA, average 12mA, max. 80mA
Measuring Interval6 sec. sampling 1Ksmp/s
Dynamic Time Measurement Resolution0.01 sec

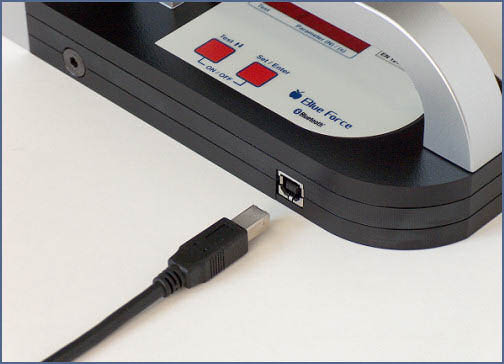

InterfaceUSB 2.0
BLUETOOTH Ver 4.1 (enabled via password)
NFC per ISO/IEC 14443 & NFC Forum Type 4
Power9V battery (alkaline)
Weight1.6 kg ± 10%
Dimensions
(L x W x H)
280mm. X 80mm. X 50mm. ± 5%
Testing StandardsComplies with EN12445, EN12453, EN16005, EN60335-2-95

Optional Accessories

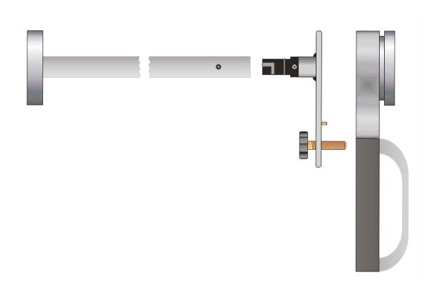

Linear Extension

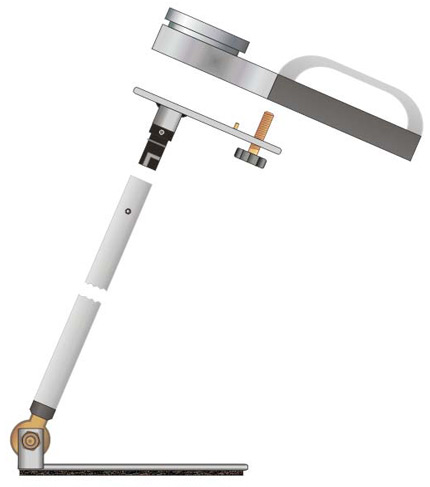

Angular Extension

During the use, the instrument has to be supported in way to not alter the results of measures.

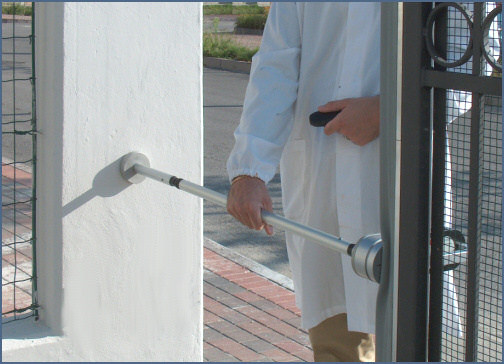

The optional accessories, (thanks to the fast-joint mechanism), permit to carry out measures by using only one hand, while with the other hand it is possible to drive the opening/closing device.

Two versions are available: The Linear Extension, for measures at 30 or 50 cm. and Angular Extension, for measures from 1.25 and 2.5 meters. Also requires use of the Straight Extension 50V003

Downloads

Buy Now

Item Description Price
BlueForce SMART PROo Impact Force Gauge Basic Kit - 50V001G
$2,325.00
BlueForce SMART PROo Impact Force Gauge PL Kit with Straight Extension - 50V001G-PL
$2,560.00
BlueForce SMART PROo Impact Force Gauge PRN Kit with Straight Extension and Portable Printer - 50V001G-PRN
$2,740.00
ISO-17025 Accredited Calibration for BlueForce (for new gauge)
$445.00
Accessories
50V003
Linear Extension for measurements from 30 to 50 cm
$295.00
50V004
Angular Extension for measurements from 1.25 and 2.5 meters
(also requires use of optional Linear Extension 50V003)
$325.00
50V011
EXTREME Carrying Case for BlueForce SMART and Linear Extension
$245.00
ISO-17025-BF-SMART
ISO-17025 Accredited Calibration for BlueForce (for new gauge)
$445.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
