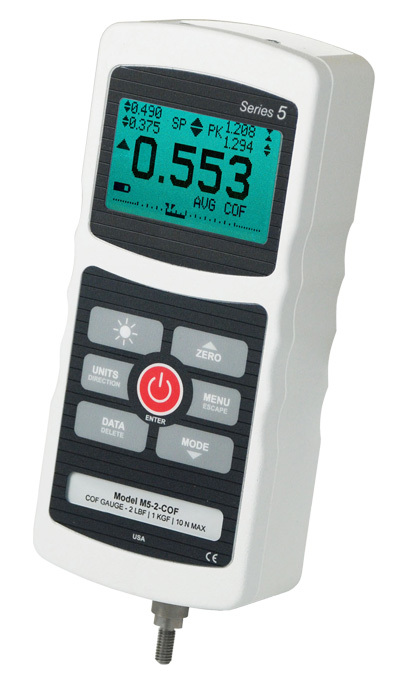

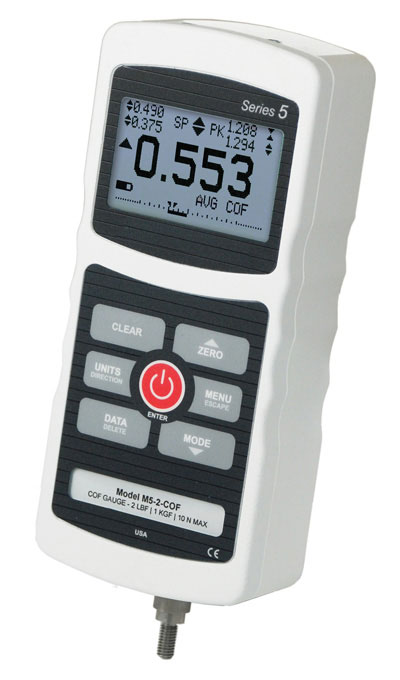

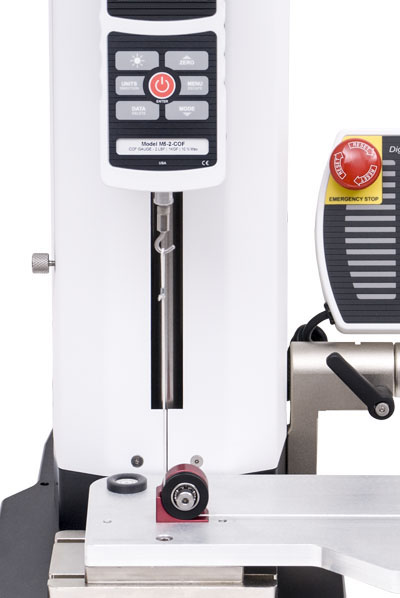

The M5-2-COF coefficient of friction (COF) gauge is an integral part of a COF testing system, typically including a motorized test stand and COF fixture. With a capacity of 2 lbF [10 N], the gauge can be used to measure friction for a wide range of materials, ideal for conformance to ASTM D1894 and other relevant standards. Static and kinetic coefficients are displayed on the backlit LCD, and are calculated from a user-programmable sled weight.
Data can be transferred to a PC or data collectors via USB, RS-232, Mitutoyo (Digimatic), or analog outputs. On-board memory for up to 1,000 readings is included, as are statistical calculations with output to a PC. Integrated set points with indicators and outputs are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. Configurable password protects against unauthorized changes to settings.
The M5-2-COF may also be used for a number of common tension and compression testing applications.

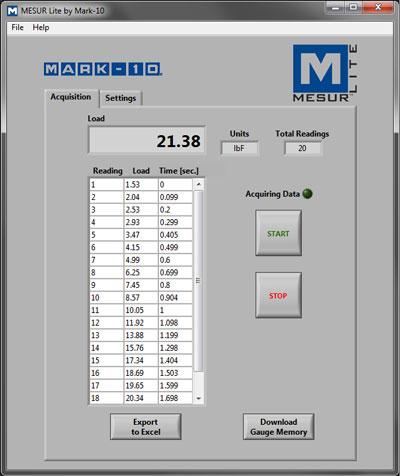

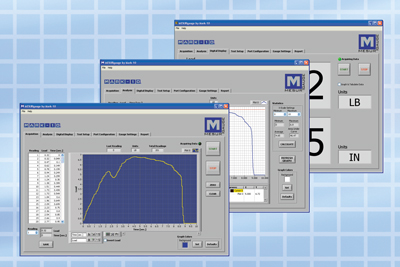

The M5-2-COF includes MESURTM Lite data acquisition software. MESURTM Lite tabulates continuous or single point data. Data saved in the gauge's memory can also be downloaded in bulk. One-click export to Excel easily allows for further data manipulation.
Data can be transferred to a PC or data collectors via USB, RS-232, Mitutoyo (Digimatic), or analog outputs. On-board memory for up to 1,000 readings is included, as are statistical calculations with output to a PC. Integrated set points with indicators and outputs are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. Configurable password protects against unauthorized changes to settings.
The M5-2-COF may also be used for a number of common tension and compression testing applications.
The M5-2-COF includes MESURTM Lite data acquisition software. MESURTM Lite tabulates continuous or single point data. Data saved in the gauge's memory can also be downloaded in bulk. One-click export to Excel easily allows for further data manipulation.
- Calculates static and kinetic coefficients of friction
- USB, RS-232, Mitutoyo, and analog outputs
- Programmable set points, with indicators and outputs

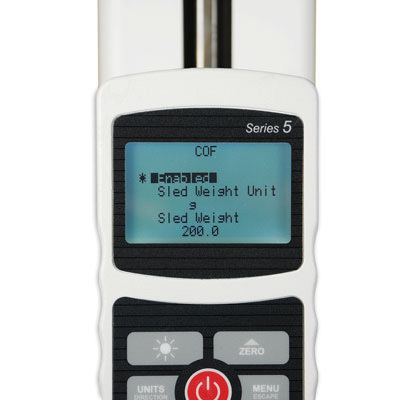

- Configurable sled weight (100 - 1000 g)
- 1,000-point data memory with statistics and outputs

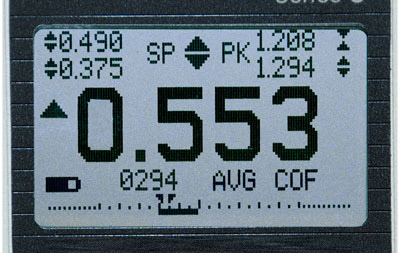

- Live load bar graph with set point markers
- Configurable audio alarms and key tones
- Password protection, configurable for individual keys and calibration
| Model | Capacity | Resolution |
|---|---|---|
| M5-2-COF | 5 COF* 2 lbF 32 ozF 1 kgF 1000 gF 10 N | 0.001 COF* 0.005 lbF 0.01 ozF 0.002 kgF 0.2 gF 0.002 N |
*Depends on the sled weight. For a 200 g weight, the COF capacity is 5. COF resolution is fixed at 0.001.
M5-2-COF is supplied in a cushioned carrying case with chisel, cone, V-groove, hook, flat, extension rod, universal voltage AC adapter, battery, quickstart guide, USB cable, resource CD (USB driver, MESURgauge DEMO software, and quick start guide), and NIST-traceable certificate of calibration with data.
| Accuracy | ±0.1% of full scale |
| Sampling rate | 7,000 Hz |
| Power | AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low. |
| Battery Life | Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use |
| Outputs | USB / RS-232: Configurable up to 115,200 baud. Includes Gauge Control Language 2 for full computer control. Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog: ±1V DC, ±0.25% of full scale at capacity. General purpose: Three open drain outputs, one input. Set points: Three open drain lines. |
| Configurable Settings | COF sled weight, digital filters, outputs, automatic output (via USB/RS-232), automatic shutoff, default settings, averaging mode, external trigger, passwords, key tones, audio alarms, backlight, calibration |
| Safe overload | 150% of full scale (display shows "OVER" at 110% and above) |
| Weight | 1.0 lb [0.45 kg] |
| Warranty | 3 years |
| Item | Description | Price | ||
|---|---|---|---|---|
M5-2-COF Gauge, Requires Test Stand and COF Fixture to form complete system | $1,396.50 | |||

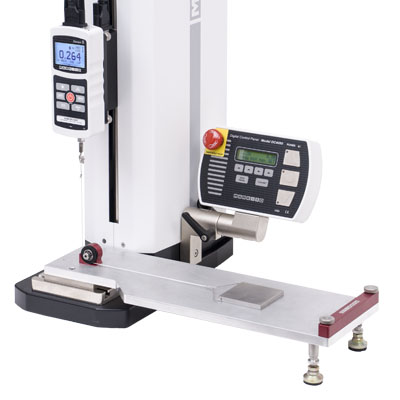

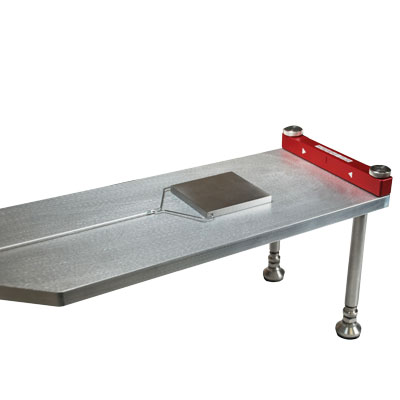

M5-2-COF Gauge with G1086 Coefficient of Friction Fixture, Test Stand Sold Separately | $2,840.00 | |||
| Accessories | ||||
MESUR gauge Load & Travel Analysis Software - NO LONGER AVAILABE, Order Mesurgage Plus - Please contact us for pricing and availability. | $ | |||
AC1111 | USB cable, type micro B to A, old PN 09-1165 | $30.00 | ||
AC1118 | Spare rechargeable battery for M-10 Gauges, old PN 08-1026 | $20.00 | ||
AC1030 | AC adapter, with USA Plug for M10 Gauges | $45.00 | ||
AC1031 | AC adapter with Euro Plug | $45.00 | ||
AC1032 | AC adapter with UK Plug | $45.00 | ||
AC1035 | AC adapter with AUS Plug | $45.00 | ||
