Measures Push / Pull Force
(FGPX)

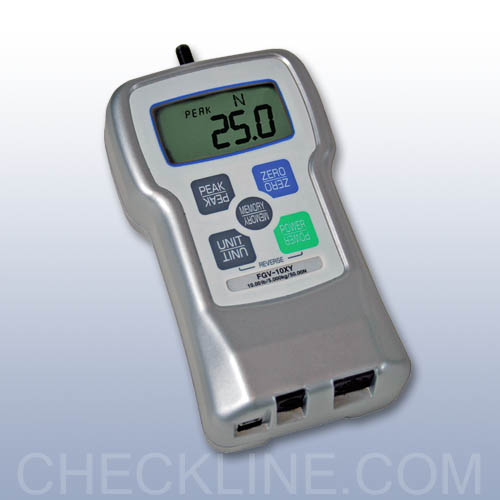

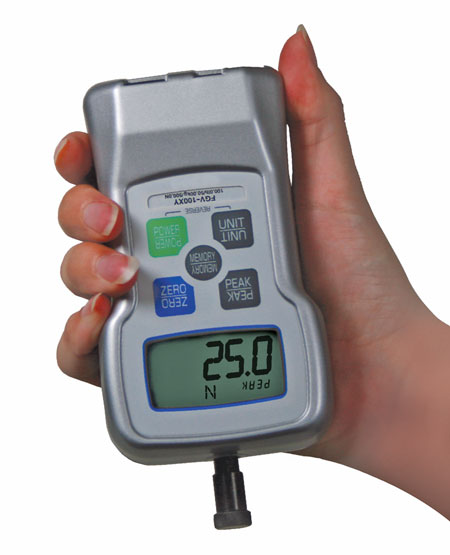

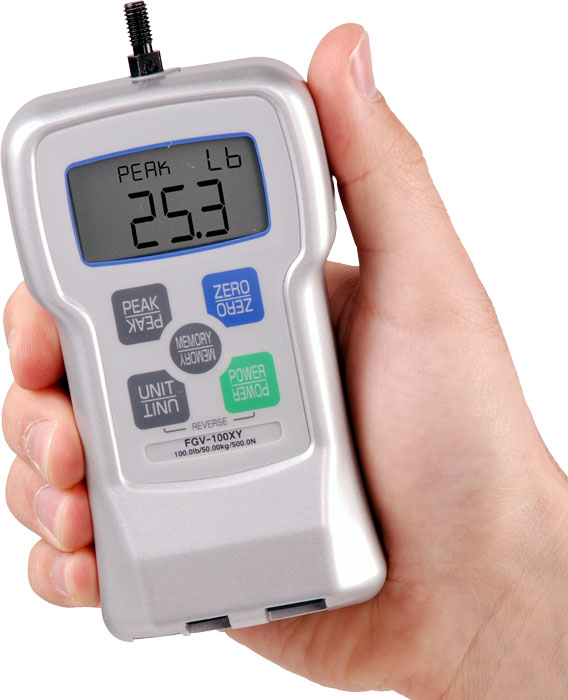

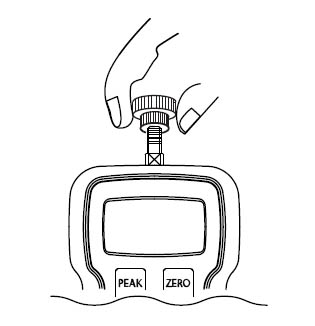

The FGV-XY force gauge delivers industry-leading value with an extensive list of features including USB output, reversible display and a rugged metal housing. Each gauge is supplied as a complete kit with several screw-on adapters providing a complete force testing instrument for use in a wide variety of industries. All models include built-in memory for 1000 values, easily downloaded via the USB data output to a PC using the software.

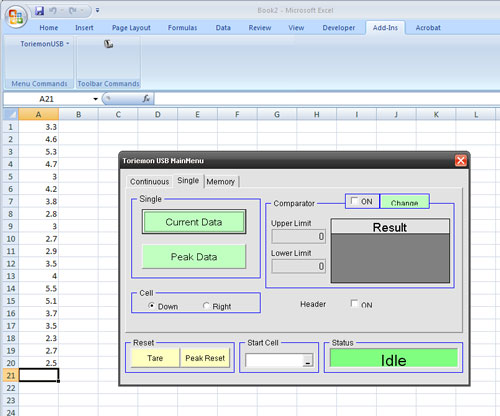

Includes software allows force values can be transferred in real time or batch downloaded after testing is complete. In addition, RS-232C and analog outputs are also supplied providing the FGV-XY with maximum flexibility for data transfer and recording. Additionally, measurement statistics are automatically calculated and stored and can be recalled to the display for viewing or can be downloaded. Statistics include maximum, minimum, average and standard deviation.

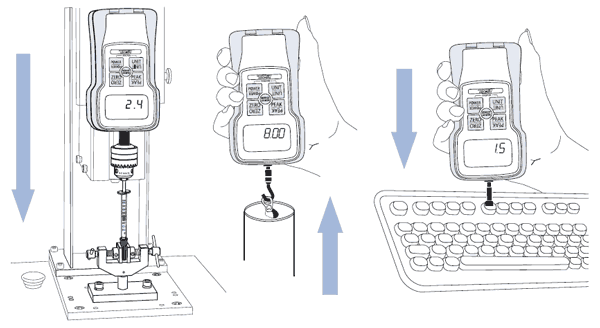

The FGV-XY provides is suitable for use in numerous industries & applications including incoming quality inspection, finished goods testing, R&D as well as on wire pull testing, wire crimps, trigger pull, brake pedal, aerospace, ceramic, springs, food ripeness, corrugated paper strength, blister pack, medical component, muscle strength, ergonomic testing, adhesives, syringe plunger, needle sharpness and many more.
The USB driver built-in to the FGV is not compatible with Windows 10, however, the software is compatible. The workaround is to use the RS232 output Cable (FGV-RS232) with a serial to USB adapter (USB-RS232-ADAP). Contact us for more info.
NSN 6635-01-596-9415 (FGV-100XY)
-
Includes traceable calibration certificate (without data)
NIST traceable with data and ISO-17025 certificate options available -
1000 Hz Sample Rate
captures true peak values even those occurring over very short time intervals -
Selectable Auto-Shut Off
prolongs battery life, while allowing constant use when powered via supplied AC-adapter -
Accuracy of ±0.2%
providing superb repeatability -
Small Size

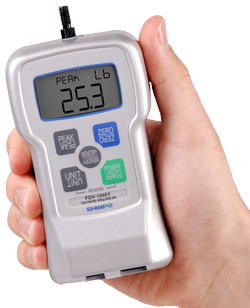

Ergonomic design provides comfort for hand held testing -
USB, RS-232 & Analog Outputs-- all included!
3 different outputs for data transfer provides maximum flexibility -
Automatic Calculation & Display of Statistics
provides immediate results and analysis of your force testing -
9 separate capacities from 0.5 Lb to 200 Lb
select the best range without forfeiting accuracy -
3 Memory Modes
optimize data storage for any application transferring data to PC/Laptop when convenient -
200% Overload Capacity
minimizes the likelihood of costly repairs -
Built In User-Set Hi-Lo Alarm Limits
perform quick and easy 'Go-No Go' testing with visual LCD indicator when "out of tolerance" -
Rugged Die Cast Aluminum Housing & Rugged Construction
provides exceptional durability even in the toughest field applications -
Reversible Display
optimized for use as both a handheld gauge or mount upside down on a test stand - Free Data logging/graphing software provided, sample rate up to 100 readings/sec* Requires RS232 Cable for use with Windows 10, inquire for details
- 1-Year Warranty
| Model | Capacity | Resolution |
|---|---|---|
| FGV-0.5XY | 0.5 lb 2 N 200 g 8 oz | 0.001 lb 0.001 N 0.1 g 0.01 oz |
| FGV-1XY | 1 lb 5 N 500 g 16 oz | 0.001 lb 0.001 N 0.1 g 0.01 oz |
| FGV-2XY | 2 lb 10 N 1000 g 32 oz | 0.001lb 0.01 N 1 g 0.01 oz |
| FGV-5XY | 5 lb 20 N 2 kg | 0.001 lb 0.01 N 0.001 kg |
| FGV-10XY | 10 lb 50 N 5 kg | 0.01 lb 0.01 N 0.001 kg |
| FGV-20XY | 20 lb 100 N 10 kg | 0.01 lb 0.1 N 0.01 kg |
| FGV-50XY | 50 lb 200 N 20 kg | 0.01 lb 0.1 N 0.01 kg |
| FGV-100XY | 100 lb 500 N 50 kg | 0.1 lb 0.1 N 0.01 kg |
| FGV-200XY | 200 lb 1000 N 100 kg | 0.1 lb 1 N 0.1 kg |
| Measuring Modes | Realtime, Compression Peak, Tension Peak |
| Display Update Rate | User Selectable: 1, 2, 3, 5, 10, 20 times per second |
| Sampling Rate | 1000 times per second (1000Hz/1KHz) |
| Accuracy | ± 0.2% F.S. |
| Temperature Drift | Gain : ± 0.01% LOAD / Zero : ±0.01% / R.C. / Drift of zero point can be cancelled with tracking function. |
| Display | Main display: 4-digits 12mm high, Reversible Units display: 3-digits 7mm high Other display: "LO BAT"(Low Battery Voltage), "BAT"(Battery Charging), "OVR"(Overload), "Peak"(Peak Hold) |
| Overload | 200% of Full Scale On Model FGV-200XY: 150% F.S. |
| Tracking | User Selectable (ON/OFF) |
| USB Output | Allows communication between FGV-XY and Windows PC Software with ToriemonUSB via USB cable(included). |
| RS-232C Output | Allows communication between the FGV-XY and RS-232C devices. RS-232C cable is an optional accessory. |
| Analog Output | ± 1V, Accuracy is ± 50mV through a 12 bit D/A. ZERO affects this output, and is updated at 1000 times/second. Load is >10k Ohms |
| Overload/Comparator Output | Open-collector output (Max DC30V/5mA). |
| Power | Rechargeable Nickel hydride battery or AC adapter/charger. Usable while charging. |
| Operating Time | Approximately 8 hours after a full charge. Charging Time: 16 Hours Max. |
| Auto Power Off | Default is 10 minutes. Can be disbaled. Automatically disabled when connected to AC adapter. |
| Memory function | Continuous memory: 1000 data points, Single memory: 100 data points, Standard memory: 50 data points Statistics functions (max, minimum, peak, average, standard deviation) |
| Comparator function | User Selectable: HI and LO |
| Temperature range | 0 ~ 40 °C (32 ~ 104 °F) |
| Humidity range | 35 ~ 85% RH |

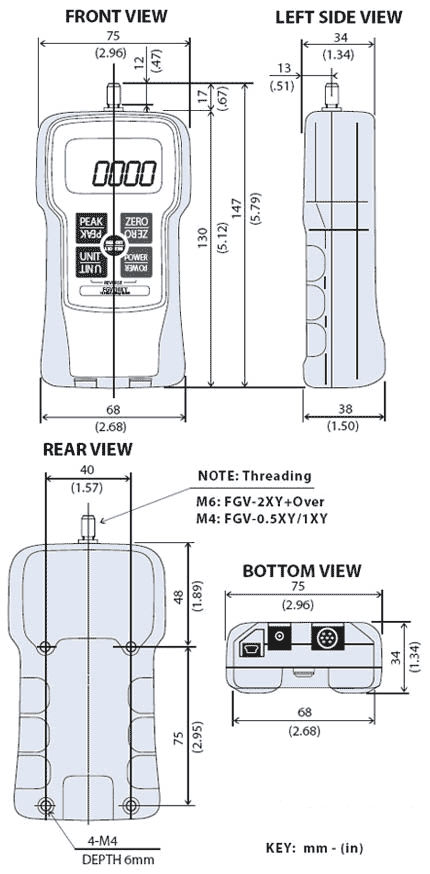

| Dimensions | 147mm (L)x 75mm (W) x 38mm(H) |
| Weight | Approx. 450g On Model FGV-200XY: Approx. 500g |

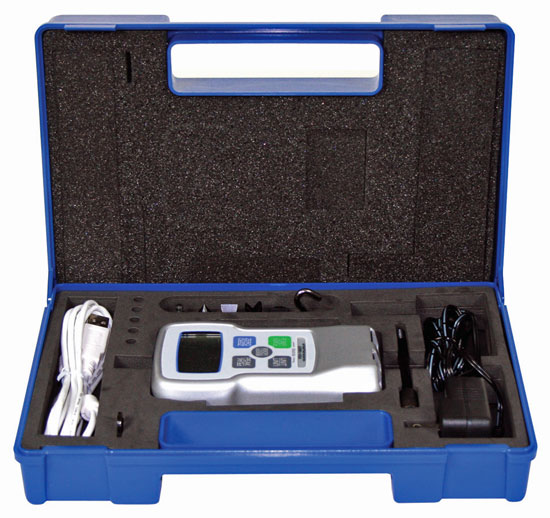

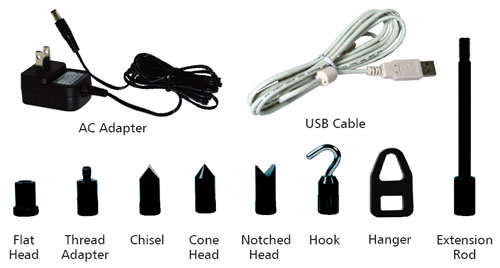

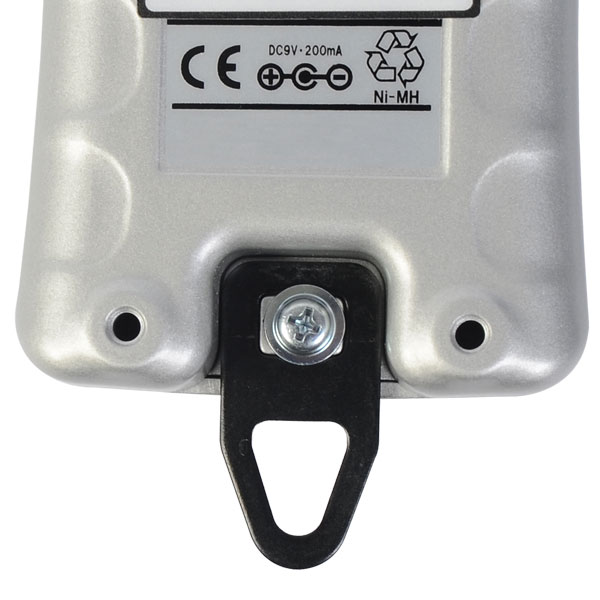

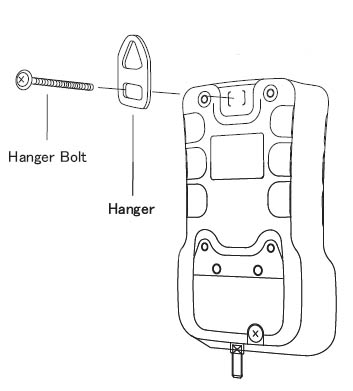

| Accessories(Included) | AC adapter/charger, carrying case, hook, chisel, flat head, notched head, hanger, cone head, thread Adapter, extension rod, USB cable |
| Toriemon Software | for WIN 7 & 2000 (64 bit) and XP (32 bit), and is meant for use with Office/Excel 2000 and higher |
| Warranty | 1 Year |
| International P/N | FGPX |
| COO | Philippines |
| Item | Description | Price | ||
|---|---|---|---|---|
FGV Digital Force Gauge with USB OUTPUT, 8 oz / 200 g / 2 N Capacity | $715.50 | |||
FGV Digital Force Gauge with USB OUTPUT, 1 lb / 500 g / 5 N Capacity | $715.50 | |||
FGV Digital Force Gauge with USB OUTPUT, 2 lb / 1 Kg / 10 N Capacity | $715.50 | |||
FGV Digital Force Gauge with USB OUTPUT, 5 lb / 2.5 Kg / 25 N Capacity | $715.50 | |||
FGV Digital Force Gauge with USB OUTPUT, 10 lb / 5 Kg / 50 N Capacity | $715.50 | |||
FGV Digital Force Gauge with USB OUTPUT, 20 lb / 10 Kg / 100 N Capacity | $715.50 | |||
FGV Digital Force Gauge with USB OUTPUT, 50 lb / 25 Kg / 250 N Capacity | $715.50 | |||
FGV Digital Force Gauge with USB OUTPUT, 100 lb / 50 Kg / 500 N Capacity | $715.50 | |||
FGV Digital Force Gauge with USB OUTPUT, 200 lb / 100 Kg / 1000 N Capacity | $760.50 | |||
| Accessories | ||||
NIST-FG | NIST Traceable Certificate of Calibration for Shimpo force Gauges up to 100 lbs | $250.00 | ||
NIST-FG-HX | NIST Traceable Calibration Certificate for FG 200 / 500 / 1000 lb capacity force gauges | $300.00 | ||
ISO-17025-FG200 | ISO-17025 Calibration for Force Gauges up to 200 lbs / 100 kg / 1000 N (adds 3 weeks) | $225.00 | ||
FGV-RS232 | RS232 9 Pin Serial output cable for FGV Digital Force Gauge | $105.00 | ||
USB-RS232-ADAP | RS232 to USB Adapter | $25.00 | ||
FGV-ANALOG | Analog output cable for FGV | $105.00 | ||
Handle FGE, FGV, FG-3000, FG-7000 Force Gauges | $130.00 | |||
FGV-CTRL | Control Cable for FGV | $105.00 | ||
Spare / Replacement Power Adapter for most Shimpo gauges | $35.00 | |||
BATT-FGEX | Replacement internal rechargeable NiMH Battery for FGE and FGV Force Gauges - FVE-BAT - BFGG0200511 | $50.00 | ||
FG-M6ADP | Std. Steel Adapter Set, M6 Thread (Includes Chisel, Cone, Flat Head, Notched, Hook, Extension Rod) - For use with 2 - 200 lb force gauges | $95.00 | ||
FG-M6ADP-AL | Std. Aluminum Adapter Set, M6 Thread (Includes Chisel, Cone, Flat Head, Notched, Hook, Extension Rod) - For use with 2 - 20 lb force gauges | $75.00 | ||
