9 Ranges up to 200 lbs / 100 Kg
Measures Push / Pull Force
(FGJN)

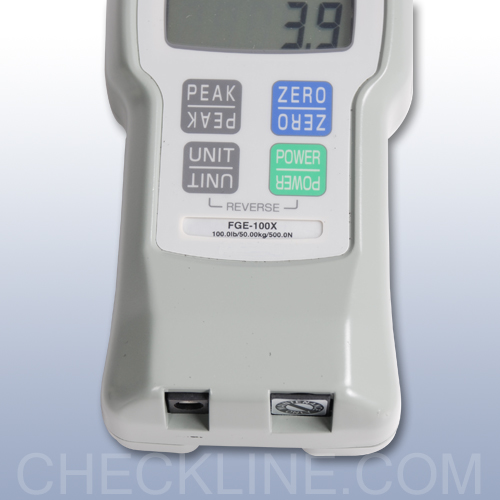

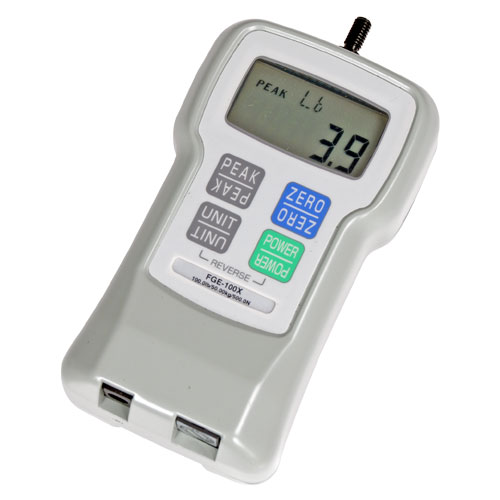

Digital Force Gauges with 180° reversible display & dual labeled keypad for both push, pull applications. The Series FGE-XY Digital Force Gauges combine a rugged, ergonomic and compact design with exceptional accuracy to provide a solid force testing instrument. These instruments are utilized in a variety of applications such as, incoming quality inspection, finished goods testing, R&D or almost any portable or force stand testing requirement.
Simple one button adjustment changes units of measure, while pressing the peak button quickly produces the highest recorded value during the test. The 180° reversible display combined with the adjustable force direction and dual labeled keypad enable the FGE-XY to excel in both compression and tension applications in any direction. Models are available from 0.5 lbs to 100 lb ranges providing a large offering for various testing requirements.
Typical applications include wallboard, wire pull, wire crimps, trigger pull, brake pedal, aerospace ceramic, springs, food ripeness, corrugated paper strength, blister pack, medical component, muscle strength, ergonomic testing, adhesives, syringe plunger, needle sharpness and many more.
Measures Push / Pull Force
(FGJN)
Digital Force Gauges with 180° reversible display & dual labeled keypad for both push, pull applications. The Series FGE-XY Digital Force Gauges combine a rugged, ergonomic and compact design with exceptional accuracy to provide a solid force testing instrument. These instruments are utilized in a variety of applications such as, incoming quality inspection, finished goods testing, R&D or almost any portable or force stand testing requirement.
Simple one button adjustment changes units of measure, while pressing the peak button quickly produces the highest recorded value during the test. The 180° reversible display combined with the adjustable force direction and dual labeled keypad enable the FGE-XY to excel in both compression and tension applications in any direction. Models are available from 0.5 lbs to 100 lb ranges providing a large offering for various testing requirements.
Typical applications include wallboard, wire pull, wire crimps, trigger pull, brake pedal, aerospace ceramic, springs, food ripeness, corrugated paper strength, blister pack, medical component, muscle strength, ergonomic testing, adhesives, syringe plunger, needle sharpness and many more.
-
Includes traceable calibration certificate (without data)
NIST traceable with data and ISO-17025 certificate options available - Display "real-time" or "peak" force
- Accuracy ± 0.2%
- 200% overload protection
- User-selected units of Pounds, Kilograms or Newtons
- Display can be reversed for inverted use
- CE Certified
- ROHS Compliant
- 1-Year Warranty
| Model | Capacity | Resolution |
|---|---|---|
| FGE-0.5XY | 8.00 oz 200.0 g 2.000 N | 0.01 oz 0.1 g 0.001 N |
| FGE-1XY | 16.00 oz 500.0 g 5.000 N | 0.01 oz 0.1 g 0.001 N |
| FGE-2XY | 2.000 lb 1000 g 10.00 N | 0.001 lb 1 g 0.01 N |
| FGE-5XY | 5.000 lb 2.000 Kg 20.00 N | 0.001 lb 0.001 kg 0.01 N |
| FGE-10XY | 10.00 lb 5.000 Kg 50.00 N | 0.01 lb 0.001 kg 0.01 N |
| FGE-20XY | 20.00 lb 10.00 Kg 100.0 N | 0.01 lb 0.01 kg 0.1 N |
| FGE-50XY | 50.00 lb 20.00 Kg 200.0 N | 0.01 lb 0.01 kg 0.1 N |
| FGE-100XY | 100.0 lb 50.00 Kg 500.0 N | 0.1 lb 0.01 kg 0.1 N |
| FGE-200XY | 200.0 lb 100.0 Kg 1000 N | 0.1lb 0.01 kg 1 N |
Note:
FGE-0.5XY & FGE-1XY - Shaft thread is M4
FGE-2XY & Over - Shaft thread is M6

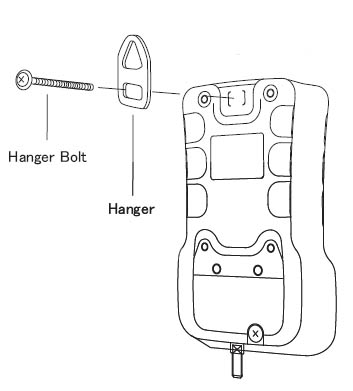

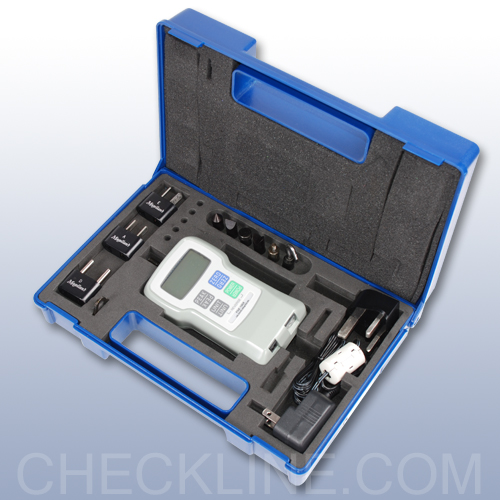

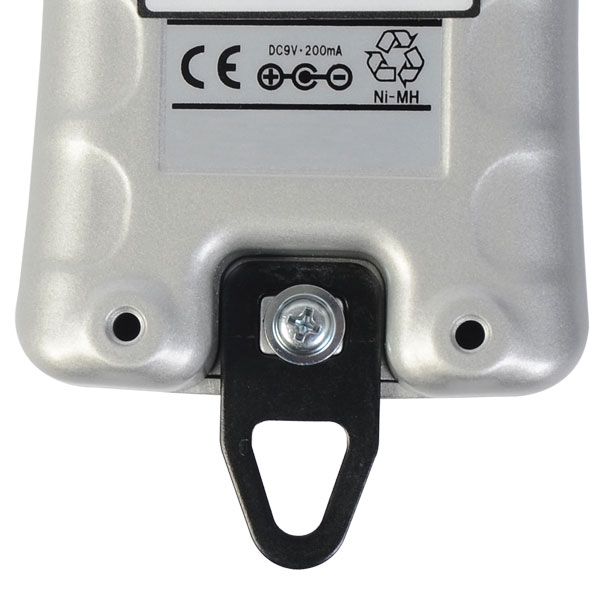

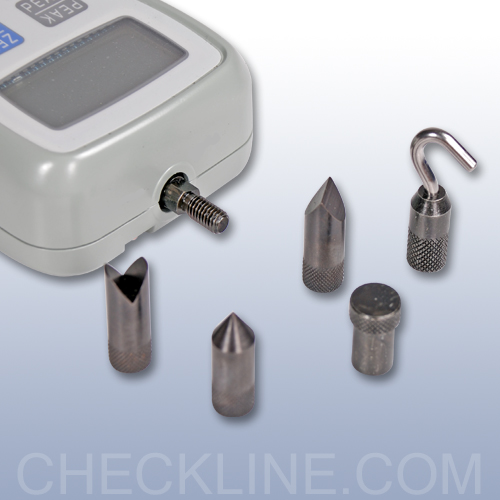

Includes Force Gauge, Universal 100-240V AC Adapter/Charger, 6 Attachments;Hook, Flat Head, Notched Head, Hanger, cone head & extension rod in a foam fitted carrying case
| Accuracy | ±0.2% full scale |
| Display | 4-Digit LCD, 12mm high. Reversible by the push of a button. Minus sign for tension |
| Display Update | 0.05, 0.1, 0.2, 0.3, 0.5, 1 sec |
| Sampling Rate | 1000 times per second |
| Overload Protection | 200% of full scale |
| Power | Rechargeable Ni-MH battery or AC through adapter/charger |
| Auto Power Shut-Off | Yes (not active if adapter/charge is in use) |
| Battery Life | 12 hours (when fully charged) |
| Recharge Time | Approximately 18 hours when fully discharged |

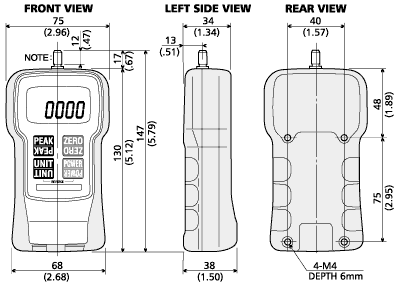

| Dimensions | 5.8" L x 3.0" W x 1.5" H (147 mm x 75 mm x 38 mm) |
| Weight | 1 lb (450 g); FGE-200XY Approx. 1.1 lb (500 g) |
| Approvals | CE and ROHS certified |
| Warranty | 1 Years |
| International P/N | FGJN |
| COO | Philippines |
| Item | Description | Price | ||
|---|---|---|---|---|
Digital Force Gauge Complete Kit, Capacity 8 oz / 250 g / 2 N | $558.00 | |||
Digital Force Gauge Complete Kit, Capacity 16 oz / 500 g / 5 N | $558.00 | |||
Digital Force Gauge Complete Kit, Capacity 2 lb / 1000 g / 10 N | $558.00 | |||
Digital Force Gauge Complete Kit, Capacity 5 lb / 2 Kg / 20 N - FGN-2 | $558.00 | |||
Digital Force Gauge Complete Kit, Capacity 10 lb / 5 Kg / 50 N - FGJN-5 | $558.00 | |||
Digital Force Gauge Complete Kit, Capacity 20 lb / 10 Kg / 100 N | $558.00 | |||
Digital Force Gauge Complete Kit, Capacity 50 lb / 20 Kg / 200 N - FGJN-20 | $558.00 | |||
Digital Force Gauge, 50 lb Capacity with 5" Shaft Extension | $745.00 | |||
Digital Force Gauge Complete Kit, Capacity 100 lb / 50 Kg / 500 N - FGJN-50 | $558.00 | |||
Digital Force Gauge Complete Kit, Capacity 200 lb / 100 Kg / 1000 N | $733.50 | |||
| Accessories | ||||
NIST-FG | NIST Traceable Certificate of Calibration for Shimpo force Gauges up to 100 lbs | $250.00 | ||
NIST-FG-HX | NIST Traceable Calibration Certificate for FG 200 / 500 / 1000 lb capacity force gauges | $300.00 | ||
ISO-17025-FG200 | ISO-17025 Calibration for Force Gauges up to 200 lbs / 100 kg / 1000 N (adds 3 weeks) | $225.00 | ||
Handle FGE, FGV, FG-3000, FG-7000 Force Gauges | $130.00 | |||
BATT-FGEX | Replacement internal rechargeable NiMH Battery for FGE and FGV Force Gauges - FVE-BAT - BFGG0200511 | $50.00 | ||
Spare / Replacement Power Adapter for most Shimpo gauges | $35.00 | |||
