Measuring Range in Steel0.040 - 8.00 inches
1.00 - 199.0 mm

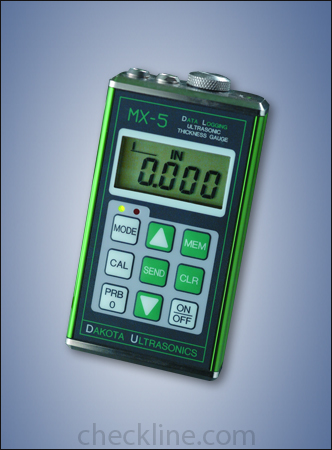

The DAKOTA ULTRASONICS MX-5 Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!
The MX-5 can be used in a Single Thickness Reading mode or in a Scan mode , where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed.
The MX-5 probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed to provide trouble-free operation under the toughest field conditions.- Resolution of 0.001 inch (0.01 mm)
- Large, backlit LCD display retains last reading
- Simple operator controls virtually eliminate training
- Special-purpose probes are offered for a variety of applications
- Switch-selected units for inches or mm
- CE Certified
- For underwater surveying, probe cable lengths up to 50 feet are optionally
- Differential Mode
- Alarm Mode
- RS-232C Serial output for sending single data points to a printer or computer
- Includes NIST Calibration Certificate
- IP 65 Rated
The MX-5 is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, and Operating Instruction Manual - all in a foam-fitted carrying case.
| Minimum Radius for Convex Surfaces | 0.350" (8.89 mm) | |
| Minimum Radius for Concave Surfaces | 3" (76.2 mm) | |
| Minimum Headroom | 1" (25.0 mm) | |
| Minimum Sample Diameter | 0.150" (3.8 mm) | |
| Minimum Substrate Thickness - F | na | |
| Minimum Substrate Thickness - NFe | na |
| Range in Steel | 0.040-8.00" (1.00-199.9 mm) |
| Resolution | .001" (0.01 mm) |
| Display | 4½ - Digit, 0.5" Backlit LCD |
| Velocity Range | 0.0492 to .3937 in/μs. 1250 to 10,000 meters/sec |
| Probe | 1/4", 5 MHz, actual wearface is 5/8" (17mm) |
| Cable | 4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m). |
| Temp. Limits | Ambient: -20 to 120° F (-30 to 50° C) Material: -0 to 200° F (-20 to 100° C Special high temperature probes are optionally available. |
| Battery Type | Two AA batteries |
| Battery Life | 200 hours |
| Weight | 7 ounces (196 g) |
| Size | 2.5 x 4.5 x 1.25" (64 x 114 x 32 mm) |
| Accessories Included | Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case. |
| Warranty | Gauge: 5 Years Probes: 90 Days |
| Item | Description | Price | ||
|---|---|---|---|---|
Replaced by ZX-5 Dakota MX-5 Thickness Gauge Complete Kit with T-102-2000 Probe, Z-114-0001 | $ | |||
Dakota MX-5 Complete Kit supplied with T-042-2000, 1/4"-5MHZ Hi-Temp probe (340℃/650°F) - Please contact us for pricing and availability. | $ | |||
Dakota MX-5 with wired-in cable (6" length) providing wires for External 3V DC Power, RS-232 & External SEND trigger (for footswitch, etc) - Please contact us for pricing and availability. | $ | |||
| Accessories | ||||
1/4" diameter, 5.0 MHz, dual element transducer, Side In, Potted | $320.00 | |||
Protective Holder for Most TI Series Gauges, F-112-0005 | $60.00 | |||
SoundSafe Coupling Fluid - 12 oz / 354 ml - NSN: 6635-01-553-0559 | $30.00 | |||
6 foot RS232 Cable (DB-9 to Lemo 2 pin) | $80.00 | |||
USB-RS232-ADAP | RS232 to USB Adapter | $25.00 | ||
1/4" diameter, 5.0 MHz dual element transducer Hi-Temp (900 F/500 C) Top in, Microdot | $470.00 | |||
