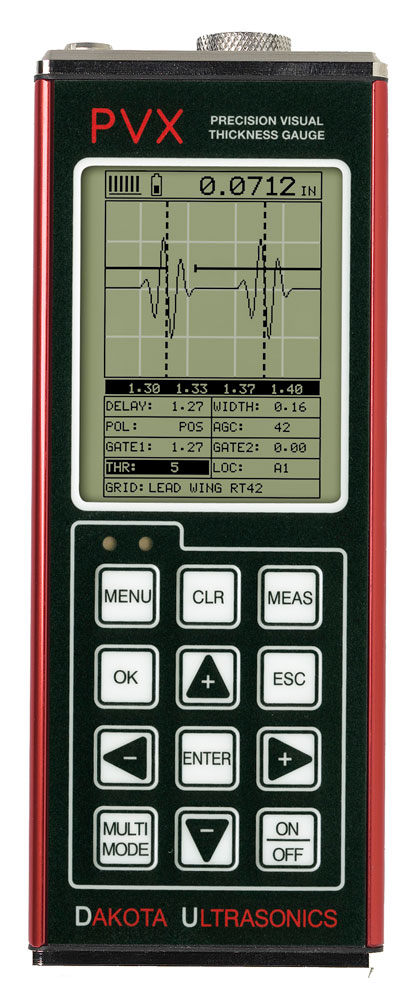

The Dakota PVX / PMX2-DL Precision Ultrasonic Wall thickness gauge provides the flexibility necessary for both high resolution and penetration requirements.
It's ability to use a variety of single element transducers for specific applications: Standard Delay Line (acrylic and graphite tips for metals and thin plastics), Pencil Delay Line (tough access area on thin materials), and Contact transducers (variety of applications) makes it the perfect flexible tool for very precise and delicate measurements. The adjustable resolution settings add to the PVX’s flexibilty.
The selectable viewing options provide the user with additional flexibility during operation: (RF waveform, +/- Rectified waveform, and Large Digits with Scan Bar.
The time based B-Scan feature displays a cross-section of the test material. Displays the profile of the opposite surface of the material.
The high speed scan feature speeds up the inspection process by making 32 measurements per second. Remove transducer from the test material and display the minimum measurement scanned.
- Hardware AGC gain control for multiple echo and thru-paint measurement.
- Multiple calibration options: One Point, Two Point, or selection from a Material List.
- 16 factory setups and 48 user-defined setups. User defined setups can be edited for custom applications.
- PVX is equipped with an alpha-numeric data logger to provide increased versatility for those custom reporting needs.
- 4 GB Internal Memory with USB-C onnectivity
- The high speed scan feature
- Auto find features locates the detection point(s) and adjusts the display settings to bring the waveform into view.
- CE Certified
- 2 year limited warranty
- PVX comes complete with our Windows® PC software for transferring data to and from a PC.
- User-selected resolution of 0.001" or 0.0001" inch units and 0.01 or 0.001 in mm units
- Visual and audible alarm with hi and lo limit settings for specific application tolerances.
- 1/4" 15MHz Delay Line Probe p/n T-481-5507 also available when pencil probe is not needed. Specify TI-PVX-5507 to order as complete kit with this probe
- Includes NIST-Traceableb calibration certificate
The PVX is supplied as a complete kit with the gauge, 3/16" 10Mhz transducer, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST-Traceable Calibration Certificate, data transfer software, serial output cable and Operating Instruction Manual - all in a foam-fitted carrying case.
| Range in Steel: | Interface-Echo Mode: Steel 0.05 1.0 in (1.27mm - 25.4mm). Plastics from .005in. (127mm). Echo-Echo Mode: Steel .006in -.500in (.15mm - 12.7mm). Pulse-Echo Contact Mode: Steel .040in - 10.0in (1mm - 254mm). Plastics from .01 |
| Resolution: | (selectable) +/- .001in (0.01 mm), or +/- .0001in - (.001mm). |
| Velocity Range: | .0492 to .3936 in./ms 1250 to 9999 meters/sec |
| Units: | English & Metric |
| Memory: | 4 GB Internal Memory |
| Data Logger: | 12,000 readings and waveforms (alpha numeric storage). |
| Output | USB-C 1.1 PC connectivity (no software required) |
| Display: | 1/8 in. VGA grayscale display (Color OLED optional) |
| Setups: | 16 factory and 48 user-defined setups. |
| Display Views: | A-Scan Rectified +/- (half wave view) RF (full waveform view) B-Scan Time based cross section view. Display speed of 15 secs per screen. Large Digits Standard thickness view. Digit Height: 0.400 in (10mm). |
| Power Source: | Three 1.5V alkaline or 1.2V NiCad AA cells |
| Battery Life: | Typically operates for 150 hours on alkaline and 100 hours on NiCad |
| Power off: | Auto power off if idle 5 min. |
| Operating Temperature: | -14° to 140°F (-10° to 60°C). |
| Size: | 2.5 W x 6.5 H x 1.24 D inches (63.5 W x 165 H x 31.5 D mm). |
| Weight: | 0.4 kg (0.9 lbs ) |
| Warranty: | Gauge: 2 Years Probe: 90 Days |
| P/N | Description | Standard / Optional | Image |
| X-152-0000 | 1/16” Dia. x .450" L | Standard |  |
| X-752-0000 | 1/8" Dia. x .450" L | Optional |  |
| P/N | Description | Standard / Optional | Image |
| X-231-0000 | 1/4" x 3/8" for all metals (Short) |
Standard |  |
| X-241-0000 | 1/4" x 1/2" for all metals (Long) |
Standard |  |
| X-633-0000 | 1/4" x 3/8" Graphite Tip for thin plastics (Graphite Short) |
Standard on "-GT" models |  |
| X-532-0000 | 3/16" x 3/8" Conical Tip for all metals (Cone) |
Optional |  |
| X-132-0000 | 1/8" x 3/8" Conical Tip for all metals (Cone) |
Optional |  |
| X-533-0000 | 3/16" x 3/8" Graphite Tip for thin plastics (Graphite Cone) |
Optional |  |
| Item | Description | Price | ||
|---|---|---|---|---|
Dakota PVX / PMX2-DL Thickness Gauge includes 10MHz Pencil Probe, Z-157-0003, Z-157-0006 | $3,275.00 | |||
Dakota PVX / PMX3-DL Thickness Gauge with Color AMOLED Display, includes 10MHz Pencil Probe, Z-157-0007 | $3,650.00 | |||
| Accessories | ||||
SoundSafe Coupling Fluid - 12 oz / 354 ml - NSN: 6635-01-553-0559 | $30.00 | |||
Protective Holder for Long Body UT Gauges, F-149-0001 | $85.00 | |||
X-152-0000 | 1/16" Diameter x .450 L Delay Tip (for Pencil Probe) | $55.00 | ||
X-752-0000 | 1/8" Diameter x .450 L Delay Tip (Pencil) | $55.00 | ||
T-481-4507 | 3/16” diameter 10MHz Pencil Probe for TI-PVX, Includes N-104-0020 4ft Cable | $700.00 | ||
T-681-4507 | 90°, 3/16” diameter 10MHz Pencil Probe for TI-PVX, Includes N-104-0020 4ft Cable | $700.00 | ||
1/4" diameter, 15 MHz delay line transducer with cable, 1/2" and 3/8" length delay line tips | $615.00 | |||
T-404-2805 | FCR-5050 Single element contact transducer, 1/2" 5 MHz for TI-PVX, without cable | $345.00 | ||
T-4023-2855 | 0.250", 5 Mhz, Side-in, Microdot Non-Magnetic Single Element Contact Transducer | $375.00 | ||
F-000-7102 | 1/4" x 3/8" Length Delay Line - OLD PN X-231-0000 | $20.00 | ||
F-000-7103 | 1/4" Diameter x 1/2" Length Delay Line Tip - OLD PN X-241-0000 | $20.00 | ||
X-633-0000 | 1/4" Diameter x 3/8" Length Graphite Tip Delay Line | $50.00 | ||
X-532-0000 | 3/16" Diameter x 3/8" Length Cone Tip Delay Line | $20.00 | ||
X-132-0000 | 1/8" Diameter x 3/8" Length Cone Tip Delay Line | $20.00 | ||
X-533-0000 | 3/16" Diameter x 3/8" Length Graphite Cone Tip Delay Line | $55.00 | ||
