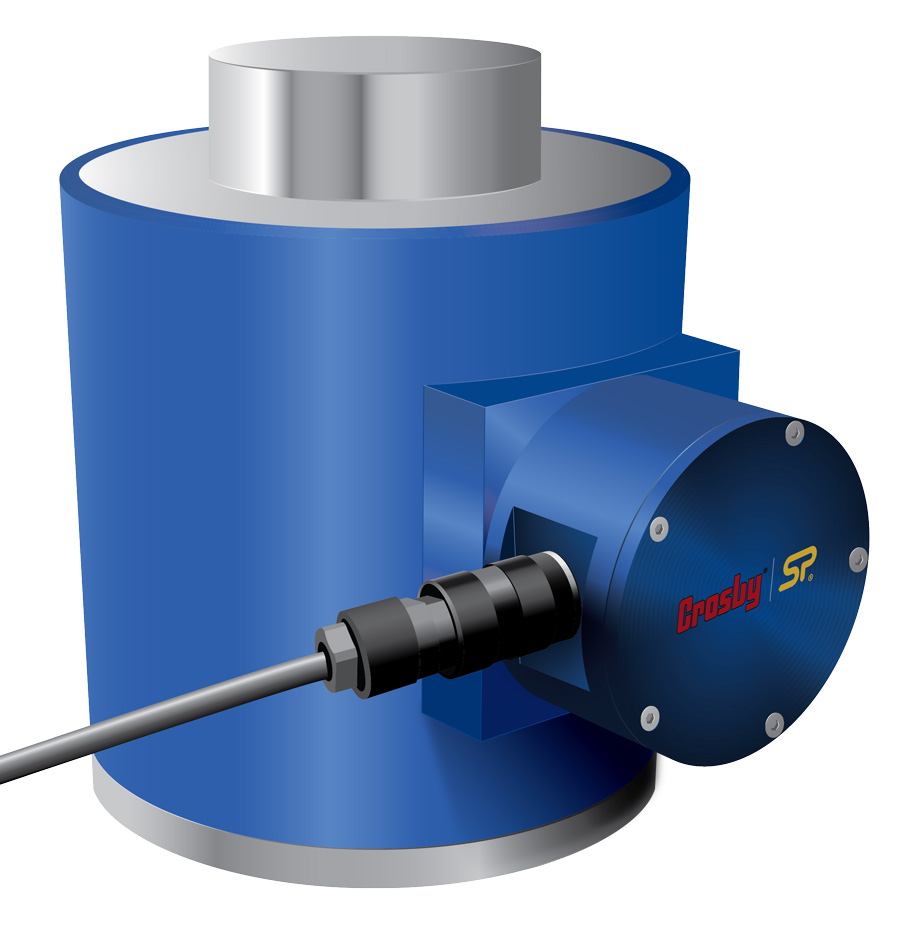

The compact lightweight design provides ease of use and superior portability, allowing Straightpoint compression load cells to be used in a broad range of industries including mining, energy, defence, heavy rigging, shipping, and general transportation sectors.
Utilising the same advanced microprocessor based electronics as all Straightpoint products, Straightpoint’s compression load cells benefit from high sampling rates, extreme resistance to industrial level noise and unprecedented stability. This high stability gives this product over 5,000 divisions and the highest standard resolution of any high capacity compression load cell on the market today. Like all Straightpoint products, Straightpoint compression load cells offer robust construction, advanced electronics, industry leading resolution and accuracy.

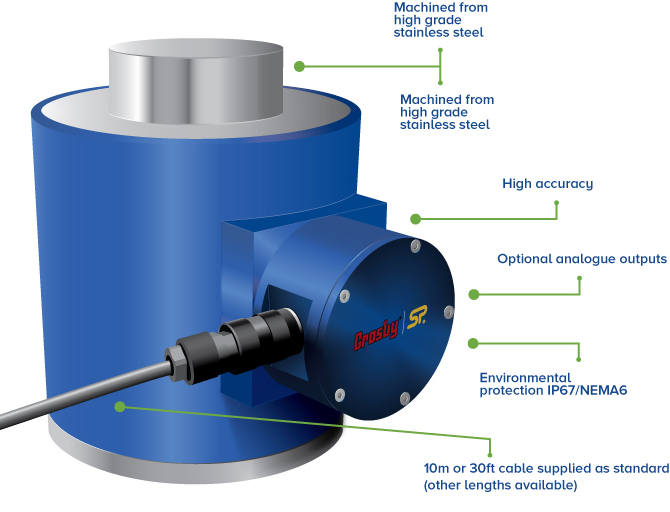

- Accuracy of ±0.1% Full Scale
- Environmentally sealed to IP67/NEMA6
- Machined from high grade stainless steel with 3:1 Safety Factor
- Supplied with 10-meter length (30 ft) connection cable, standard
- Optional cable length up to 50 meters (150 ft) is available
- Connect to HHP Hand-Held Indicator (optional) or specify ICA Analog Output
- ICA1, ICA2, ICA3, ICA4 or ICA5 Analog Outputs available (optional)
| Accuracy | +/- 0.1% of Full Scale |
| Models Ranges | 5 Ton (11,000 Lbs) up to 1000 Ton (2,200,000 Lbs) |
| Housing Protection | NEMA 6 / IP67 |
| Housing Material | Stainless Steel |
| Safety Factor | 3:1 |
| Battery Type | Loadcell 4x AA Alkaline |
| Outputs | Connection to HHP Indicator (optional) or ICA Analog Outputs (optional) |
| ICA1 | 3-wire 0-10v analog output module [2789220] |
| ICA2 | 3-wire 0-5v analog output module [2789221] |
| ICA3 | 4-wire +/-10v analog output module [2789222] |
| ICA4 | 3-wire 4-20mA analog output module [2789223] |
| ICA5 | 2-Wire 4-20mA analog output module [2789224] |
| Operating Temp | 14 to 122˚F / -10 to +50 °C |
