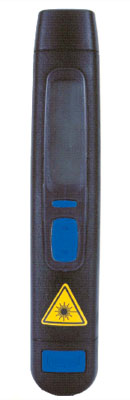

The A2107 is ideal for testing all types of engines and rotating component speeds such as Fans, blowers & transmissions. Designed for both Optical and dedicated petrol or diesel hand held testing of all types of engine driven vehicles & machinery, pumps, compressors and similar engine driven equipment.
The Hands Free mode functions in both Diesel & Petrol engine modes which is ideal for bench or workshop testing.
Optical Laser Mode
This extremely versatile mode allows the user to measure speeds of almost any machine or equipment where an exposed shaft is visible and on which a reflective marker can be attached. Ideal where engines cannot be accessed through the ignition system or Diesel injector pipework, the user simply needs to attach a small self adhesive reflective tape marker to the shaft which requires measurement, then measure from up to 2 meters away. An optional contact adapter is provided for applications where an end of shaft is accessible.
The Hands Free mode functions in both Diesel & Petrol engine modes which is ideal for bench or workshop testing.
Optical Laser Mode
This extremely versatile mode allows the user to measure speeds of almost any machine or equipment where an exposed shaft is visible and on which a reflective marker can be attached. Ideal where engines cannot be accessed through the ignition system or Diesel injector pipework, the user simply needs to attach a small self adhesive reflective tape marker to the shaft which requires measurement, then measure from up to 2 meters away. An optional contact adapter is provided for applications where an end of shaft is accessible.
The A2107 comes supplied in a custom carrying case with AAA Batteries, Instruction Manual, Calibration certificate, Transducer Cable Assembly, Stub Atenna, Remote Antenna, Reflective Tape, DES/10 Transducer and Contact Adapter.
| Optical system | Laser - range 50 - 2000mm |
| Laser type | 1mw 635nm - for portable use |
| Speed range | 3 - 99,999 rpm |
| Resolution | 1 rpm |
| Accuracy | 0.05% ± 1 digit |
| Display type | 5 Digit LCD - Inverting (180 deg) |
| Display Update | 0.8 sec (normal mode) |
| Capture mode | 0.1 seconds |
| Controls | On, invert, Capture, select programme |
| Auto Off | Auto shutdown if inactive for 5 minutes |
| Low battery ind. | Yes in display |
| Signal indicator | Yes in display |
| Power | 4 x AAA batteries - supplied |
| Transducer cable | 1 metre cable & connectors included |
| Diesel Mode | |
|---|---|
| Speed range | 60 to 18,000rpm |
| Resolution | 10 rpm |
| Accuracy | 0.05% ± 1 digit |
| Display type | 5 Digit LCD - Inverting (180 deg) |
| Display Update | 0.8 sec (normal mode) |
| Capture mode | 0.1 seconds |
| Controls | On, invert, Capture, select programme |
| Auto Off | Auto shutdown if inactive for 5 minutes |
| Low battery ind. | Yes in display |
| Signal indicator | Yes in display |
| Petrol Mode | |
| Speed range | 60 to 18,000rpm |
| Resolution | 10 rpm |
| Accuracy | 0.05% ± 1 digit |
| Display type | 5 Digit LCD - Inverting (180 deg) |
| Display Update | 0.8 sec (normal mode) |
| Capture mode | 0.1 seconds |
| Controls | On, invert, Capture, select programme |
| Auto Off | Auto shutdown if inactive for 5 minutes |
| Low battery ind. | Yes in display |
| Signal indicator | Yes in display |
| Antennae int. | Range up to 75mm - supplied |
| Remote Supplied | 0.5m cable with clip |
| Codes | Pipe Size |
| DES/09 | 4.55mm |
| DES/10 | 6.00mm (Most frequent type) |
| DES/11 | 6.35mm (1/4”) |
| DES/12 | 8mm |
| DES/14 | 7mm |
| DES/15 | 10mm |
| Special sizes available | |
| Item | Description | Price | ||
|---|---|---|---|---|
Advent combination Diesel/Petrol Engine Tachometer | $575.00 | |||
| Accessories | ||||
Reflective Tape, 1x7 Inch Strip - TAPE | $5.00 | |||
Reflective Tab Sheet, 35 1/2" x 1/2" Squares - TAB | $5.00 | |||
