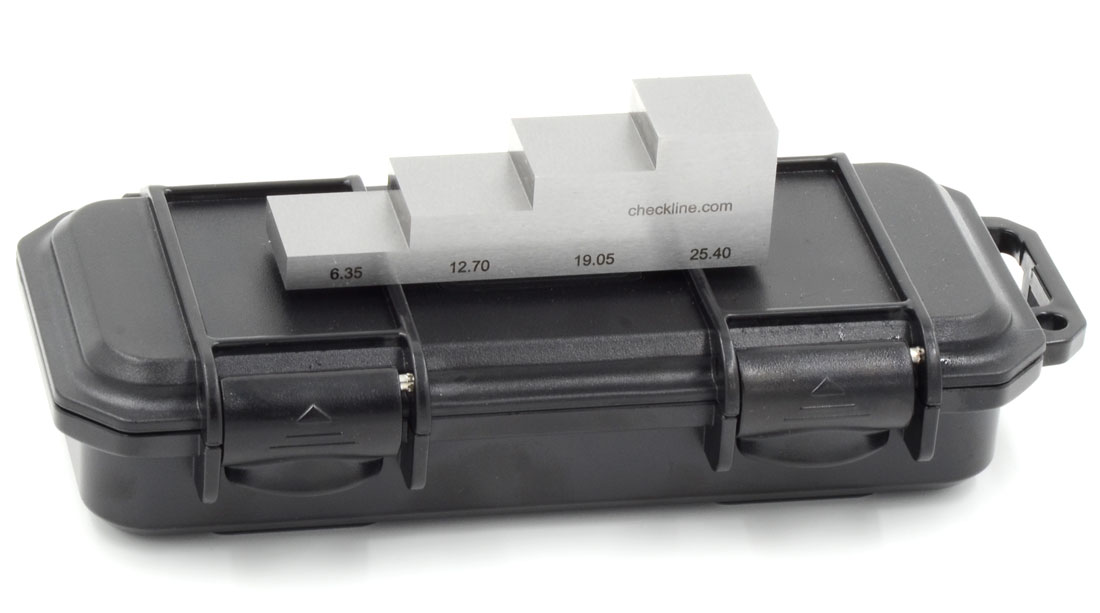

The SB Series of steel calibration step blocks allow you to conveniently check the accuracy of ultrasonic thickness gauges. All blocks are made from 1018 Steel and include NIST-Traceable Calibration Certificate and a rugged storage case.
- Includes NIST Traceable Calibration Certificate
- Precision Machined and Finished
- Includes PLASTIC Storage Box
- Made from 1018 Steel

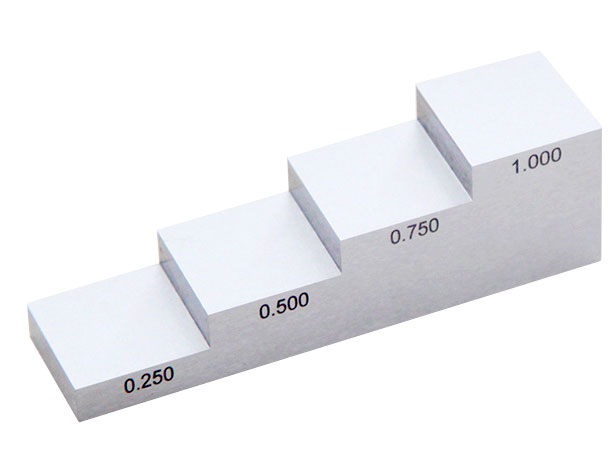

| SB-4H | 0.250 | 0.500 | 0.750 | 1.000 inch 6.350 | 12.70 | 19.05 | 25.40 mm |
| SB-5L | 0.100 | 0.200 | 0.300 | 0.400 | 0.500 inch 2.540 | 5.080 | 7.620 | 10.16 | 12.70 mm |
| SB-4L | 0.040 | 0.060 | 0.080 | 0.100 inch 1.016 | 1.524 | 2.032 | 2.540 mm |
| Base Width: | 0.75" / 19mm |
| Tolerance | ± 0.0005 in / 0.01mm |
| Material | 1018 Steel |
| Item | Description | Price | ||
|---|---|---|---|---|
4 Step Steel Calibration Test Block, 0.250, 0.500, 0.750, and 1.000 inch, with Plastic case and calibration certificate | $345.00 | |||
4 Step Steel Calibration Test Block, 0.040, 0.060, 0.080, and 0.100 inch, with Plastic case and calibration certificate | $345.00 | |||
5 Step Steel Calibration Test Block, 0.100, 0.200, 0.300, 0.0400, and 0.500 inch, with Plastic case and calibration certificate | $345.00 | |||
SB-4H-SS | 4 Step Steel Calibration Test Block, 0.250, 0.500, 0.750, and 1.000 inch, with case and calibration certificate - 304 Stainless Steel | $590.00 | ||
| Accessories | ||||
ISO-17025-SB | ISO-17025 Calibration Certification for Step Test Blocks | $165.00 | ||
