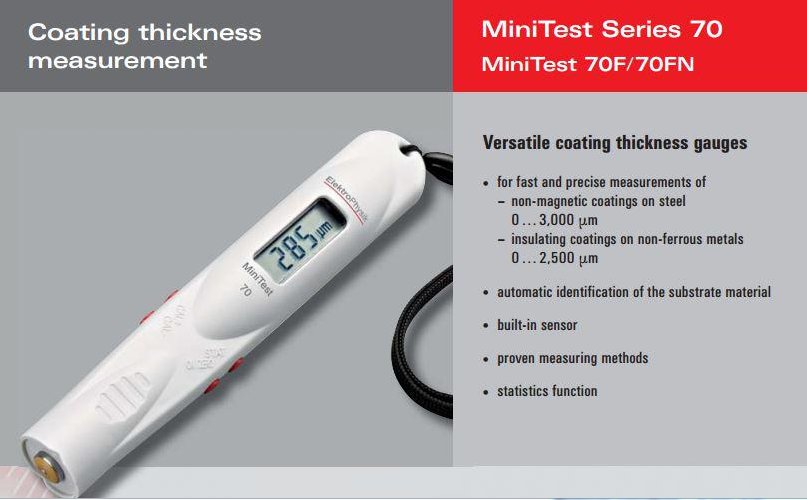

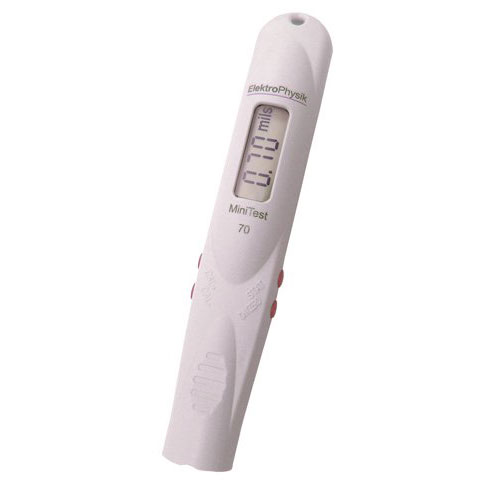

MiniTest 70 Coating Thickness Gauge

Made in Germany
Click images to enlarge.

2 Models Available
MiniTest 70F - Ferrous Only Model
MiniTest 70FN - Combination Ferrous & Non-Ferrous Model

The MiniTest 70 is a pocket sized, versatile and accurate thickness gauge with built-in sensor. Especially designed for easy operation, this gauge is the ideal tool to measure any non-magnetic coatings on steel and/or any insulating layers on non-ferrous metals.

Coating thickness gauges designed for measurement on non-ferrous metals can measure insulating coatings such as paint, enamels, anodic films, etc, on non-ferrous metal bases such as aluminium, copper, brass, etc. The spring-mounted sensors are equipped with wear-resistant sensor poles and ensure durability even when used for measurements on rough and abrasive substrates.

With coating thickness gauges designed for measurement on ferrous metals, non-magnetic coatings such as paint, enamels, chrome, etc., can be measured on ferro-magnetic bases such as constructional steel, car bodies, etc.

The MiniTest 70 Series provides accurate, non-destructive coating measurements on steel and non-ferrous metals (FN model). Also, the FN model is equipped with a dual sensor for automatic identification of the substrate. According to the substrate, it adjusts to the appropriate measuring principle: magnetic induction or eddy currents principle. Both models are provided with a quick statistics mode to calculate the number of readings, average, standard deviation and min./ max. value which makes the MiniTest 70 ideal for on-site operations.

Features

  • Pocket sized, compact coating thickness gauge
  • Proven measuring methods
  • Statistics function
  • High repeatability
  • For fast and precise measurements of non-magnetic coatings on steel and insulating coatings on non-ferrous metals
  • Enables 1-point and 2-point calibrations
  • Automatic identification of the substrate material

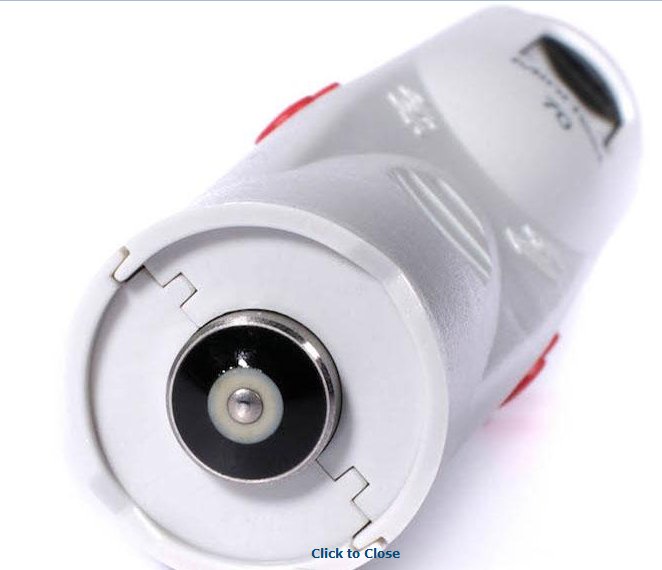

  • Built-in sensor

Complete Kit

The MiniTest 70 Coating Thickness Gauge is delivered as a complete kit with:
- MiniTest 70 F or FN - Steel and aluminium test plates (for model 70FN)
- Calibration foils
- Operating instructions
- Gauge tether
- Belt pouch

Related Products

Certified Plastic Shims
Click image for more info
CPS
Certified Plastic Shims / Foils for Coating Thickness Gauge Calibration and Verifications

Specifications

Measuring RangeMiniTest 70F - 0 - 3 mm (0 - 120 mils)
MiniTest 70FN - F: 0 - 3 mm (0 - 120 mils) / N: 0 - 2.5mm (0 - 100 mils)
Measuring PrincipleMiniTest 70F - magnetic induction
MiniTest 70FN - magnetic induction / eddy currents
Signal ProcessingSensor integrated 32-bit signal processing (SIDSPĀ®)
Accuracy± (1.5 µm + 3 % of reading) with 1-point calibration
± (1.5 µm + 2% of reading) with 2-point calibration
Repeatability± (1 µm + 1 % of reading)
± (0.04 mils + 1% of reading)
Low range resolution0.5 µm (0.02 mils)
Minimum curvature radius convex5 mm (0.2")
Minimum curvature radius concave40 mm (1.60")
Minimum measuring area⌀ 30 mm (1.20")
Minimum substrate thicknessF: 0.5 mm (0.02")
N: 0.04 mm (0.0016")
Measuring unitsMetric/Imperial switchable
Calibration modes1-point calibration, 2-point calibration
Statisticsn, x-, s, Min, Max
Operating temperature range-10 to 60 °C (14 - 140 °F)
Storage temperature range-20 to 70 °C (-4 - 158 °F)
Power supply1xAA (Mignon)-battery
International standardsDIN EN ISO 1461, 2064, 2178, 2360, 2808, 3882, ASTM B 244, B 499, D7091, E 376
DimensionsApprox. 157 mm length, ⌀ 27 mm (5.2" length, ⌀ 1.06")
Weight incl. batteryApprox. 80 g (2.8 oz)

Downloads

Buy Now

Item Description Price
MiniTest 70F Coating Thickness Gauge; Ferrous Model; Range: 0 - 3mm/120 mils F-range (MIN/007000)
$855.00
MiniTest 70 FN Coating Thickness Gauge; Combination Ferrous & Non-Ferrous Model; Range: F: 0 - 3 mm (0 - 120 mils) / N: 0 - 2.5mm (0 - 100 mils) - MIN/007015
$1,050.00
