SBK-492 Calibration Fixture for DTX2 Cap Torque Tester

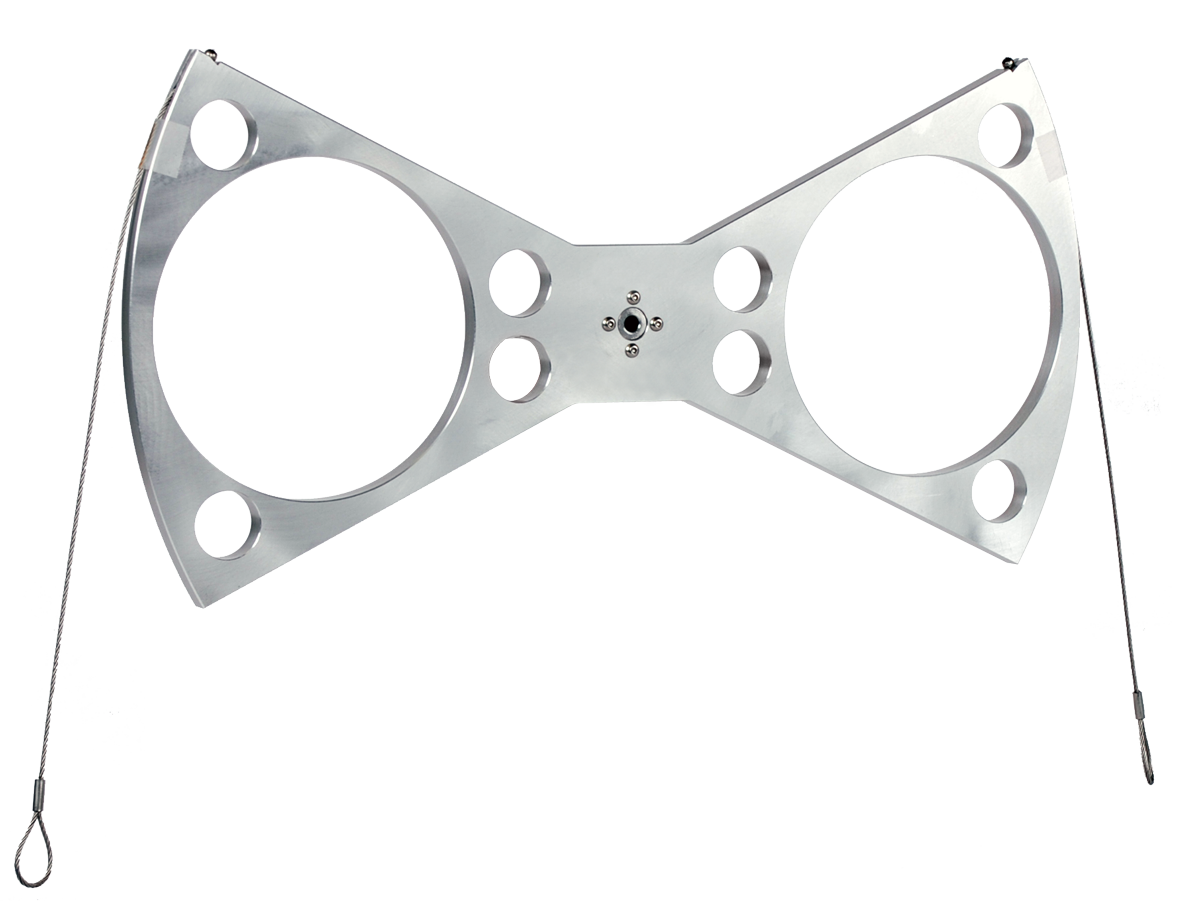

sbk cap torque tester calibration wheel
Click images to enlarge.

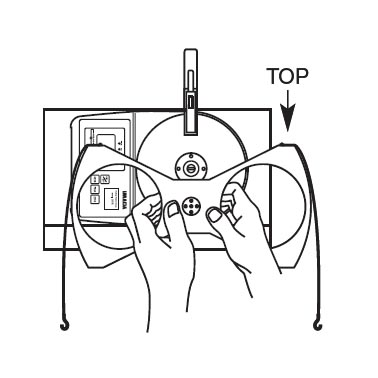

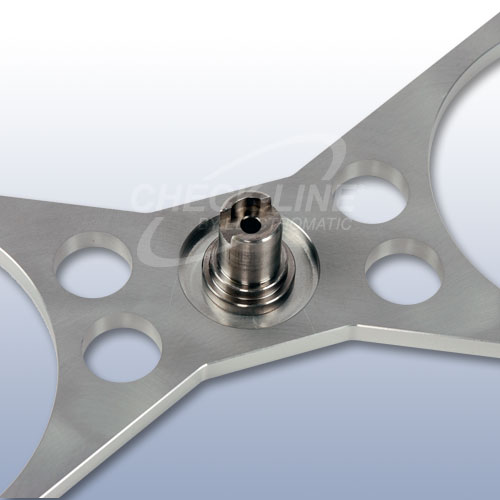

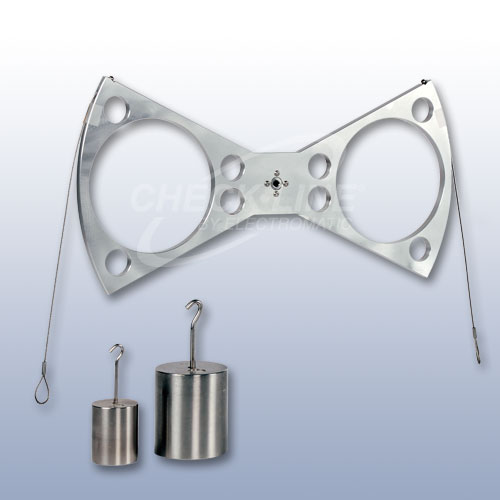

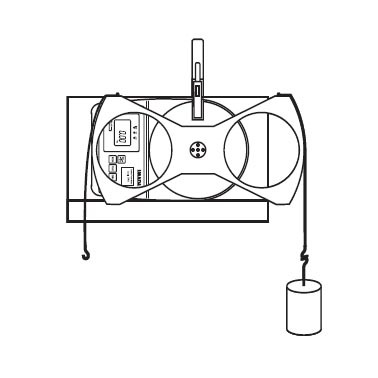

The SBK-492 is a precision calibration fixture for the DTX2 Cap Torque Tester, allowing you to test and recalibrate in-house. Requires a precision weight set, refer to table below for required weights. (must be purchased from alternate vendor)

Related Products

DTXS Cap Torque Tester
Click image for more info
CAP-DTXS
Digital Cap Torque Tester
- Test cap loosening (CCW) and tightening (CW) torque
- 1000 data point memory capacity
Click image for more info
DTX2
Replaced by CAP-DTXS
- Real time and peak mode (selectable)

Downloads

DTX2 Calibration Instructions
PDF File

Specifications

ModelCapacityAllowable RangeAllowable ToleranceWeight*
DTX/DTX2-1520.00 kgf-cm19.90 ~ 20.10 kgf-cm0.10 kgf-cm1 kg
DTX/DTX2-4050.00 kgf-cm49.75 ~ 50.25 kgf-cm0.25 kgf-cm2.5 kg
DTX/DTX2-85100.00 kgf-cm99.5 ~ 100.5 kgf-cm0.50 kgf-cm5 kg
*Weight is appropriate for 20 cm radius calibration arm
